KICK STARTER
RM125 1985 (F) USA (E03)

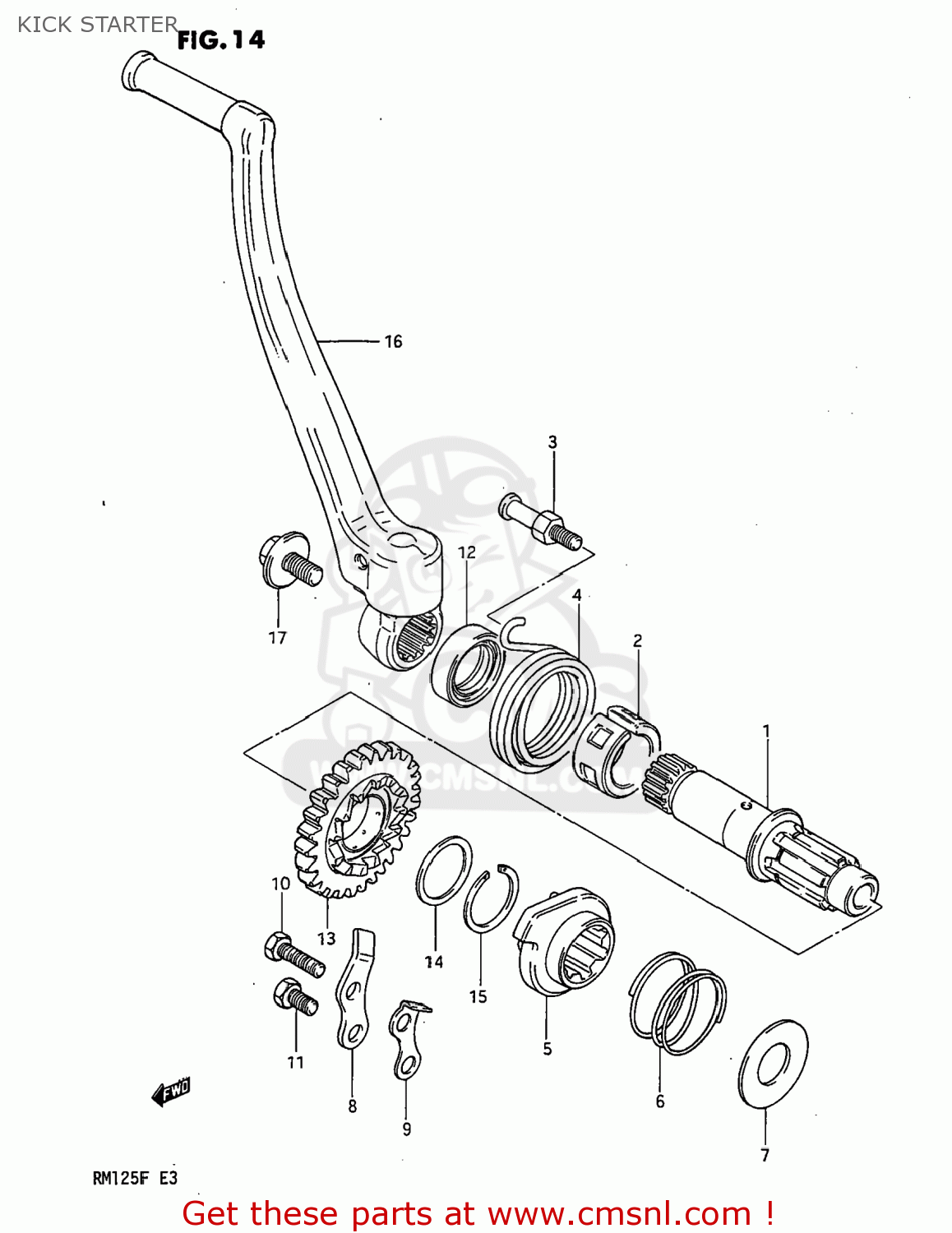

Kick starter diagram RM125 1985 (F) USA (E03)
KICK STARTER RM125 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621114500
ref: 1
SHAFT,KICK STARTER
€ 95.50
2
2622114500
ref: 2
GUIDE,KICK SHAFT SPRING
€ 10.00
3
2623714500
ref: 3
BOLT,KICK SHAFT SPRING
€ 3.50
4
0944848005
ref: 4
SPRING
€ 6.00
5
2623130002
ref: 5
26231-22A10
STARTER,KICK
€ 47.50
6
0944032002
ref: 6
SPRING
€ 2.00
7
0821117341
ref: 7
WASHER
€ 2.00
8
2623240200
ref: 8
GUIDE,KICK STARTER
€ 3.00
9
2623340200
ref: 9
26233-40201
STOPPER,KICK STARTER
€ 2.50
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0110706108
ref: 11
01500-06107
BOLT
€ 2.00
12
0928320031
ref: 12
SEAL,OIL(20X27X5)
€ 5.00
13
2624014100
ref: 13
GEAR,KICK STARTER DRIVE
€ 57.00
14
0821122281
ref: 14
09181-22139
SHIM
€ 4.00
15
0938022006
ref: 15
CIRCLIP
€ 3.00
16
2630014500
ref: 16
26300-28E20
LEVER ASSEMBLY,KICK STARTER
€ 298.00
17
0910308069
ref: 17
BOLT(8X14)
€ 7.00
