REAR BRAKE
RM125 1985 (F) USA (E03)

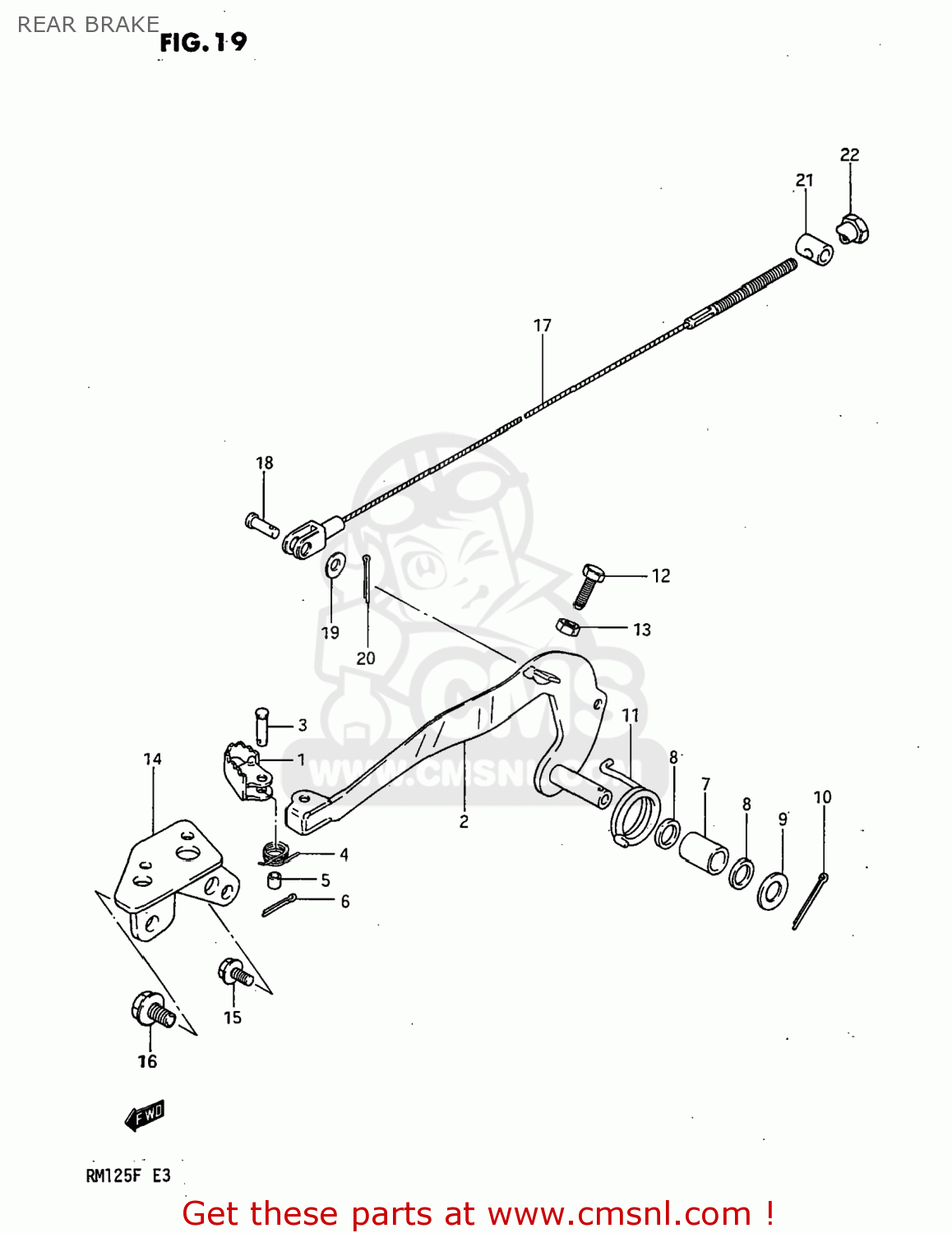

Rear brake diagram RM125 1985 (F) USA (E03)
REAR BRAKE RM125 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311014130
ref: 1
PEDAL,BRAKE
€ 6.00
2
4312014500
ref: 2
ARM,BRAKE PEDAL
€ 73.00
3
0920006038
ref: 3
PIN
€ 2.00
4
0944411004
ref: 4
09444-11005
SPRING
€ 3.00
5
0918006137
ref: 5
SPACER(9.2X9X6.5)
€ 2.50
6
0411120158
ref: 6
04111-2015A
PIN
€ 1.50
7
0931912022
ref: 7
BUSHING
€ 19.50
8
0928012006
ref: 8
O RING(D:2.2,ID:11.8)
€ 2.50
9
0821112221
ref: 9
WASHER
€ 2.50
10
0411130208
ref: 10
04111-3020A
PIN 30X20
€ 1.50
11
0944832013
ref: 11
SPRING
€ 5.50
12
0912806028
ref: 12
SCREW(6X23)
€ 2.00
13
0831011068
ref: 13
08310-00067
NUT
€ 2.50
14-1
4324014500
ref: 14-1
43240-14501
PROTECTOR,BRAKE
€ 20.00
14-2
4324014501
ref: 14-2
PROTECTOR,BRAKE
€ 20.00
15
0151706128
ref: 15
01550-06127
BOLT
€ 2.50
16
0151708128
ref: 16
01550-08127
BOLT 8X12
€ 3.50
17-1
5851014500
ref: 17-1
58510-146V0
CABLE ASSEMBLY,REAR BRAKE
€ 20.50
17-2
5851014501
ref: 17-2
58510-146V0
CABLE ASSEMBLY,REAR BRAKE
€ 20.50
18
0920005001
ref: 18
PIN(L:17.5)
€ 1.50
19
0832221068
ref: 19
08322-01067
WASHER
€ 2.00
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
21
0920913004
ref: 21
PIN
€ 7.50
22
0915006009
ref: 22
09150-06010
NUT (6MM)
€ 3.50
