CLUTCH

RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

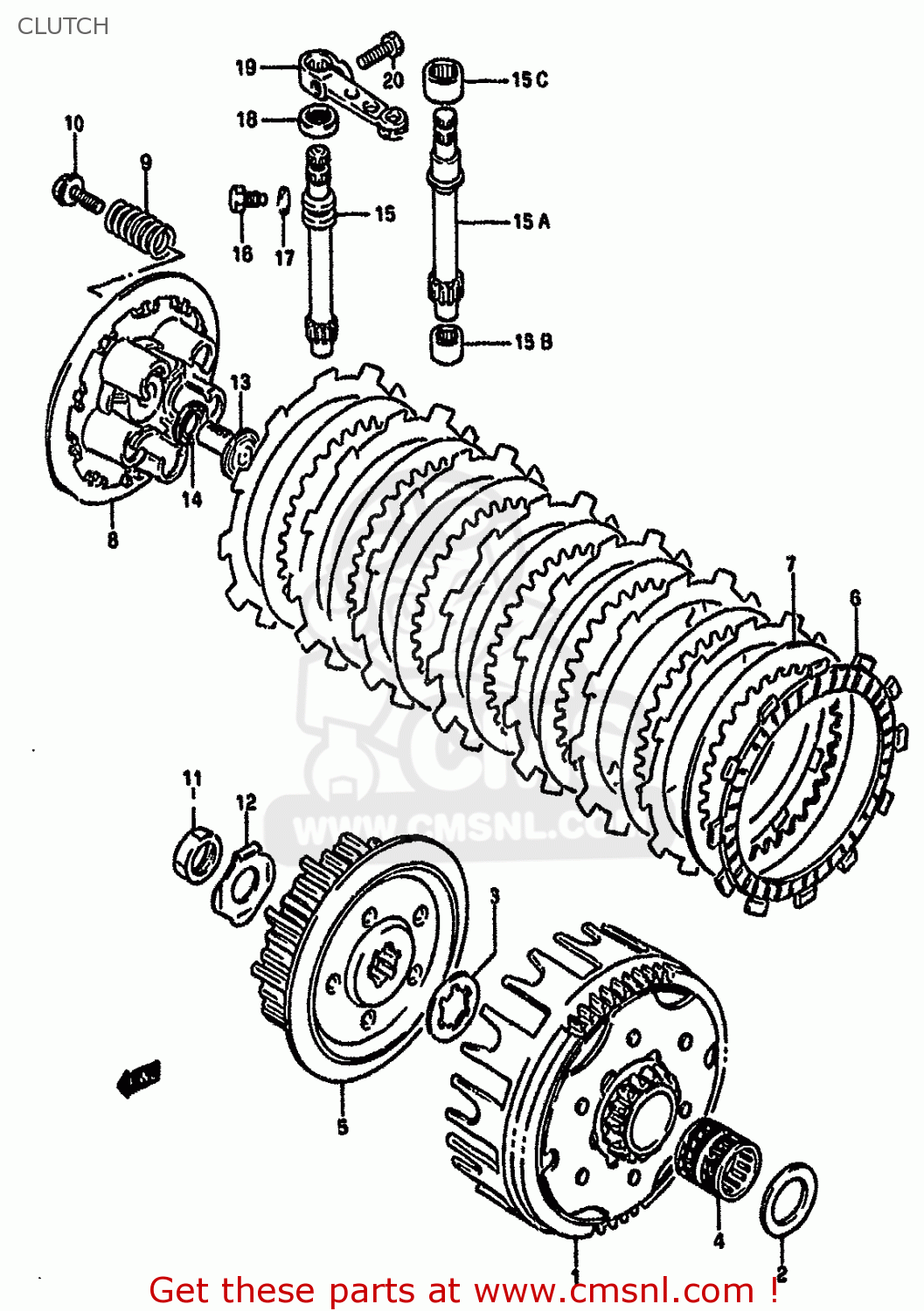

Clutch diagram RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CLUTCH RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CLUTCH RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2120001B40
ref: 1
NT:60/16
GEAR ASSEMBLY,PRIMARY DRIVE
2120001B40
€ 195.50
2
0821120321
ref: 2
WASHER,THRUST
€ 3.00
3
0916720024
ref: 3
WASHER,LOCK
0916720024
€ 3.50
4
0926320023
ref: 4
BEARING(20X25X26)
0926320023
€ 15.00
5
2141001B40
ref: 5
HUB,CLUTCH SLEEVE
€ 44.00
6
2144101B00
ref: 6
PLATE,CLUTCH DRIVE (MCA)
2144101B00
€ 11.00
7
2145101B40
ref: 7
PLATE,DRIVEN(T:1.4)
2145101B40
€ 4.50
8
2146201B40
ref: 8
DISC,CLUTCH PRESSURE
2146201B40
€ 47.50
9
0944016009
ref: 9
SPRING
0944016009
€ 5.00
10
0911605003
ref: 10
BOLT 5X16
0911605003
€ 2.50
11
0914016027
ref: 11
NUT
0914016027
€ 5.50
12
0916916006
ref: 12
WASHER
0916916006
€ 19.50
13
2316500B00
ref: 13
RACK,CLUTCH RELEASE
2316500B00
€ 17.00
14
0926310002
ref: 14
BEARING(10X22X2.8)
0926310002
€ 8.50
15
2326120A00
ref: 15
MODEL K
PINION,CLUTCH RELEASE
2326120A00
€ 35.00
15A
2326127C10
ref: 15A
MODEL L/M
PINION,CLUTCH RELEASE
2326127C10
€ 29.00
15B
0926309001
ref: 15B
MODEL L/M
BEARING(9X13X10)
0926309001
€ 11.00
15C
0926312024
ref: 15C
MODEL L/M
BEARING(12X16X10)
0926312024
€ 11.00
16
0913506002
ref: 16
MODEL K
BOLT
0913506002
€ 2.50
17
0916806004
ref: 17
MODEL K
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
18
0928510004
ref: 18
SEAL,OIL(10X17X5)
0928510004
€ 3.50
19
2327120900
ref: 19
ARM,CLUTCH RELEASE
2327120900
€ 20.50
20
0110706167
ref: 20
BOLT
0110706167
€ 3.00
