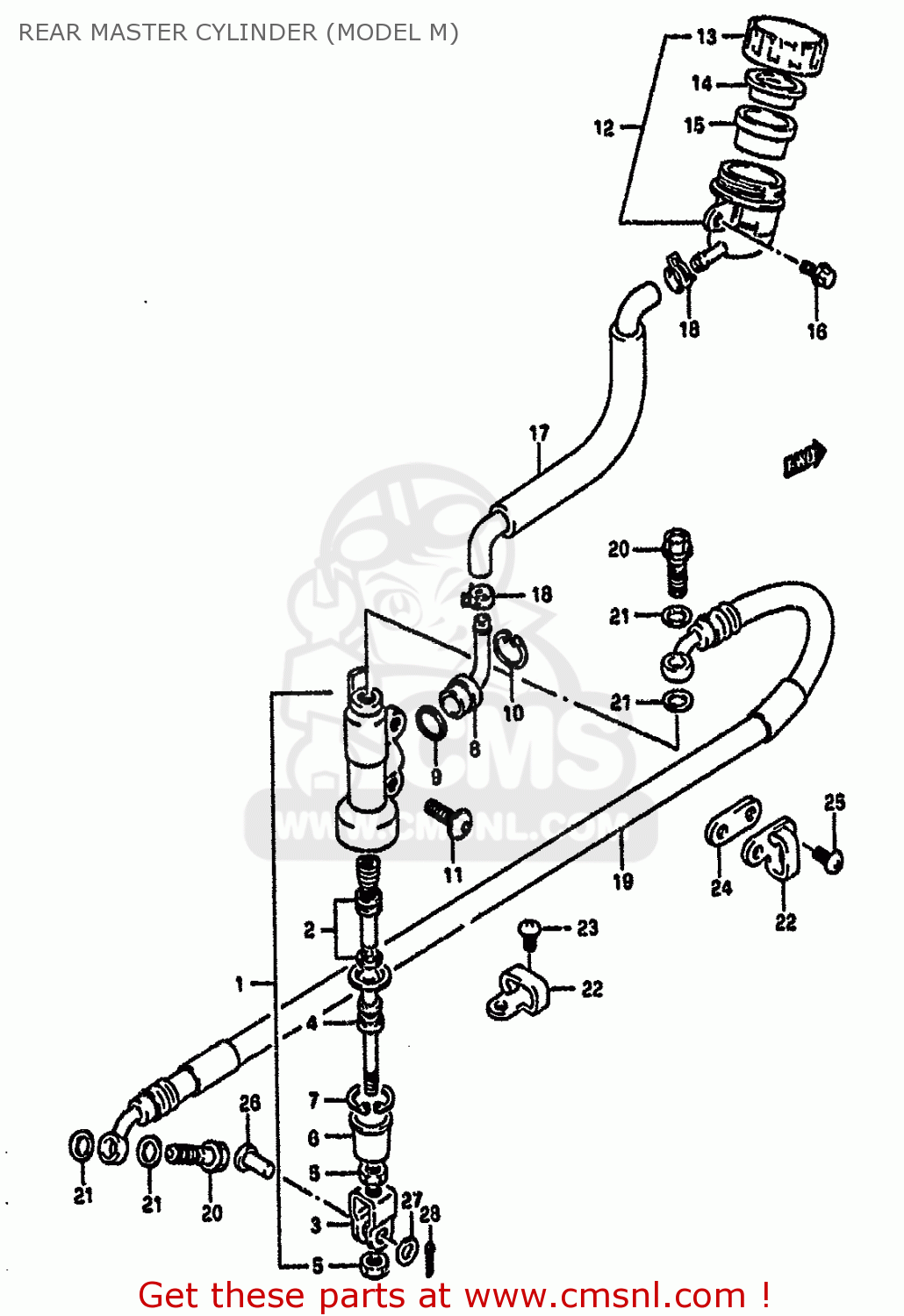

REAR MASTER CYLINDER (MODEL M)

ref

part #

description

quantity

1

6960027C00
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 184.00

2

6960004810
ref: 2

PISTON/CUP SET

€ 42.50

3

6969200B21
ref: 3

YOKE

€ 13.50

4

6967000B21
ref: 4

ROD,PUSH

€ 24.00

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967200B20
ref: 8

CONNECTOR

€ 5.00

9

6968634200
ref: 9

O RING

€ 3.50

10

6967400B20
ref: 10

CIRCLIP

€ 3.00

11

0913906030
ref: 11

SCREW(6X16)

€ 3.50

12

6974003D10
ref: 12

TANK ASSY,RR BRAKE RESERVOIR

€ 72.50

13

6966903D10
ref: 13

CAP

€ 11.00

14

6966800B20
ref: 14

PLATE

€ 4.00

15

6966700B20
ref: 15

DIAPHRAGM

€ 9.50

16

0154706127
ref: 16

BOLT

€ 2.00

17

6973127C00
ref: 17

HOSE,TANK

€ 12.00

18

6973500B20
ref: 18

CLAMP,RESERVOIR HOSE

€ 3.00

19

6948027C10
ref: 19

HOSE,REAR BRAKE

€ 91.50

20

0936010034
ref: 20

BOLT UNION

€ 5.00

21

0916110009
ref: 21

WASHER(10X15X1.5)

€ 2.00

22

6119627C20
ref: 22

GUIDE,RR BRAKE HOSE

€ 9.00

23

0912505042
ref: 23

SCREW(5X10)

€ 2.50

24

6119727C00
ref: 24

SEAT,RR BRAKE HOSE GUIDE

€ 5.00

25

0214205167
ref: 25

SCREW

€ 1.50

26

0920008048
ref: 26

PIN(8X20)

€ 3.00

27

0916008074
ref: 27

WASHER(8.5X13X1.6)

€ 2.50

28

0411120158
ref: 28

PIN

€ 1.50

all assemblies
