FRAME-SEAT

RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

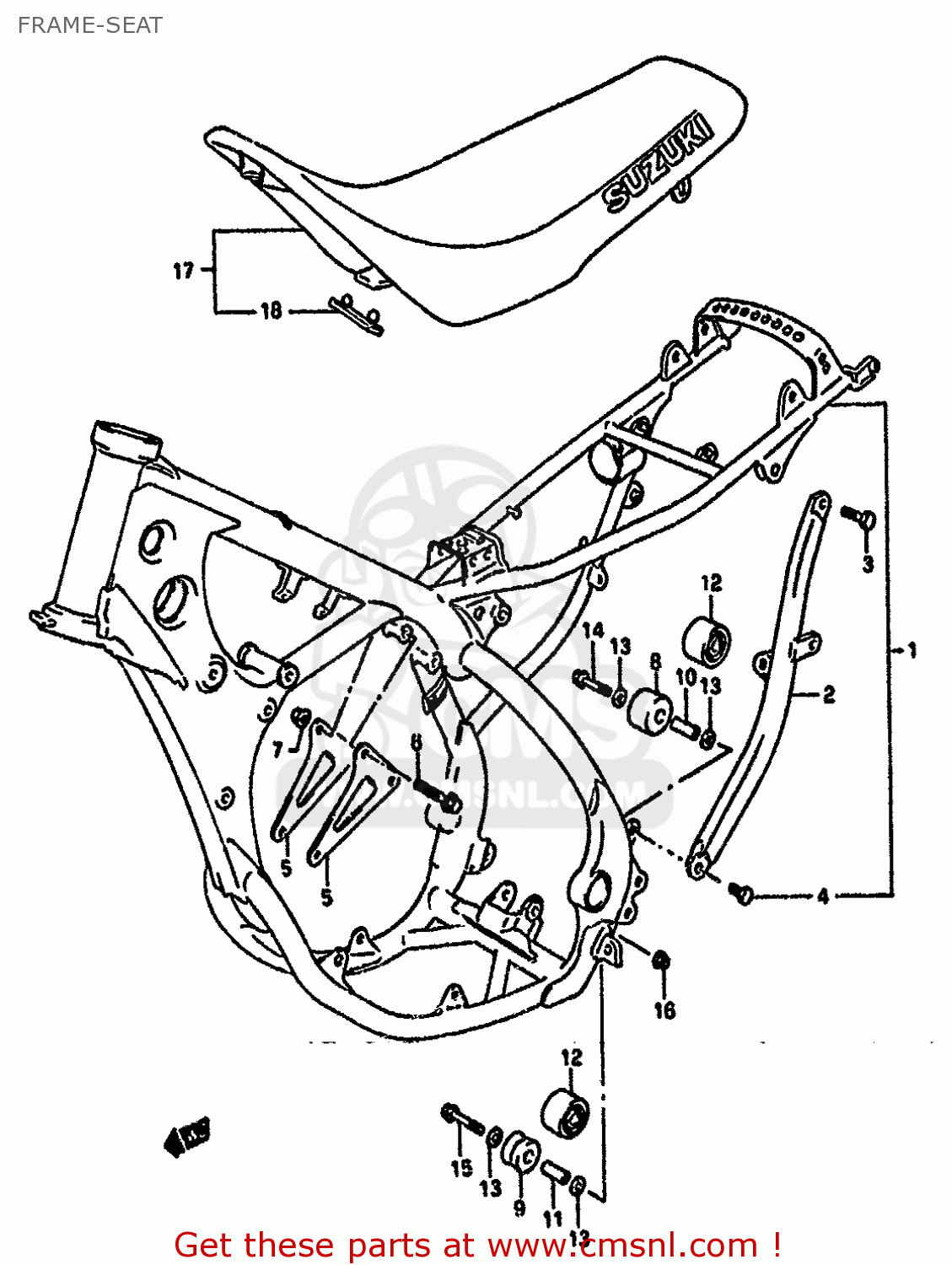

Frame-seat diagram RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

FRAME-SEAT RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRAME-SEAT RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRAME-SEAT RM125 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
411002784019F
ref: 1-1
MODEL K
FRAME
411002784019F
€ 828.00
1-2
411002785019F
ref: 1-2
MODEL L
FRAME
411002785019F
€ 827.00
1-3
41100278601AZ
ref: 1-3
MODEL M
FRAME SET
41100278601AZ
€ 827.00
2-1
4167027C00
ref: 2-1
MODEL K
TUBE,FRAME SIDE,LEFT
4167027C00
€ 82.50
2-2
4167027C10
ref: 2-2
MODEL L/M
TUBE,FRAME SIDE,LEFT
4167027C10
€ 138.00
3
0910008274
ref: 3
BOLT(8X22)
0910008274
€ 3.00
4
0910008267
ref: 4
BOLT
€ 4.00
5
4199327C01
ref: 5
PLATE,ENG MTG UPR
4199327C01
€ 27.50
6-1
0151708408
ref: 6-1
MODEL K
BOLT (8X40)
€ 3.50
6-2
0910308083
ref: 6-2
MODEL L/M
BOLT(8X41)
0910308083
€ 3.50
7-1
0831616088
ref: 7-1
MODEL K
NUT
0831616088
€ 2.50
7-2
0915908034
ref: 7-2
MODEL L/M
NUT
0915908034
€ 2.00
8
4391101B10
ref: 8
MODEL K
ROLLER,CHAIN CONTROL
4391101B10
€ 14.50
9
4391135B00
ref: 9
MODEL K
ROLLER,CHAIN CONTROL
4391135B00
€ 14.50
10
0918008136
ref: 10
MODEL K
SPACER (8.6X13.8X28)
0918008136
€ 9.00
11
0918008119
ref: 11
MODEL K
SPACER(8.6X12X25.5)
0918008119
€ 6.50
12
4391027C10
ref: 12
MODEL L/M
ROLLER,CHAIN
€ 36.50
13-1
0821108221
ref: 13-1
MODEL K
WASHER
0821108221
€ 2.50
13-2
0821108121
ref: 13-2
MODEL L/M
WASHER
0821108121
€ 2.00
14
0910308083
ref: 14
BOLT(8X41)
0910308083
€ 3.50
15
0910308043
ref: 15
BOLT(8X45)
0910308043
€ 4.50
16
0831931087
ref: 16
NUT
0831931087
€ 2.50
17-1
4510027C004UZ
ref: 17-1
MODEL K/L
SEAT ASSEMBLY
€ 321.00
17-2
4510027C10E83
ref: 17-2
MODEL M
SEAT SET
€ 217.00
18
0932108009
ref: 18
CUSHION
0932108009
€ 4.00
