CRANKCASE COVER- WATER PUMP (MODEL K)
RM125 1991 (M) USA (E03)

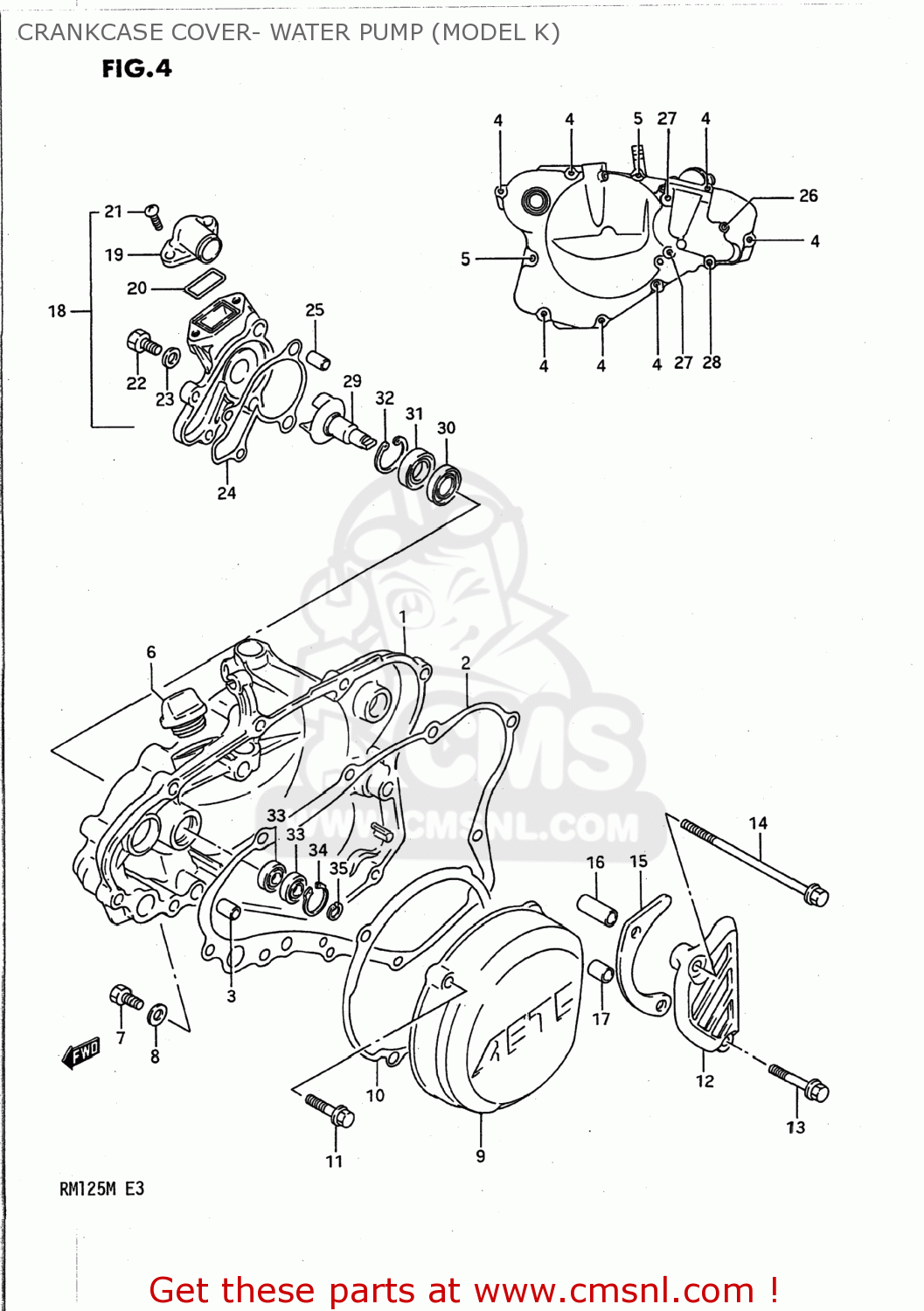

Crankcase cover- water pump (model k) diagram RM125 1991 (M) USA (E03)
CRANKCASE COVER- WATER PUMP (MODEL K) RM125 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134127C00
ref: 1
COVER,CLUTCH
€ 218.50
2
1148227C00
ref: 2
11482-27C02
GASKET,CLUTCH COVER (NAS)
€ 12.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706257
ref: 4
BOLT
€ 2.50
5
0154706357
ref: 5
BOLT
€ 2.50
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
0912806004
ref: 7
09128-06044
SCREW(6X10)
€ 1.50
8
0916806004
ref: 8
GASKET(6.2X11X1).2 (NAS)
€ 1.50
9
1135127C00
ref: 9
COVER,MAGNETO
€ 94.00
10
1148327C00
ref: 10
GASKET,MAGNETO COVER (MCA)
€ 7.50
11
0154706257
ref: 11
BOLT
€ 2.50
12
1136027C00
ref: 12
11360-28E00
COVER,SPROCKET
€ 28.00
13
0154706407
ref: 13
BOLT
€ 2.50
14
0910306126
ref: 14
BOLT(6X105)
€ 5.00
15
2764127C00
ref: 15
PLATE,FR CHAIN GUIDE
€ 9.00
16
0918006203
ref: 16
SPACER(6.5X10.5X25)
€ 3.50
17
0918006221
ref: 17
SPACER(6.5X10.5X12)
€ 5.50
18
1741027C00
ref: 18
CASE ASSEMBLY,WATER PUMP
€ 97.50
19
1741227C00
ref: 19
17412-28E00
CONNECTOR
€ 23.50
20
1741414300
ref: 20
O RING,WATER PUMP CONNECTOR
€ 3.00
21
0211206167
ref: 21
SCREW
€ 2.50
22
1741500B00
ref: 22
17415-43D00
BOLT,BLEEDER
€ 3.00
23
1741300B00
ref: 23
17413-28C10
GASKET (NAS)
€ 1.50
24
1743101B01H17
ref: 24
17431-01B02-H17
GASKET,WATER PUMP CASE (NAS)
€ 6.00
25
0421109129
ref: 25
PIN
€ 2.00
26
0154706207
ref: 26
BOLT
€ 2.50
27
0154706307
ref: 27
BOLT
€ 2.50
28
0154706857
ref: 28
BOLT
€ 2.50
29
1749101B11
ref: 29
17491-01B12
IMPELLER,WATER PUMP
€ 31.50
30
0928212006
ref: 30
SEAL,OIL(12X24X3.6)
€ 7.00
31
0928912004
ref: 31
SEAL,OIL(12X24X6.4)
€ 9.00
32
0833141249
ref: 32
CIRCLIP
€ 2.50
33
0811306980
ref: 33
BEARING
€ 14.00
34
0938119003
ref: 34
CIRCLIP
€ 2.00
35
0833131086
ref: 35
08331-3108A
CIRCLIP
€ 2.00
35
0833131086
ref: 35
08331-3108A
CIRCLIP
€ 2.00
