STAND - FOOTREST
RM125 1991 (M) USA (E03)

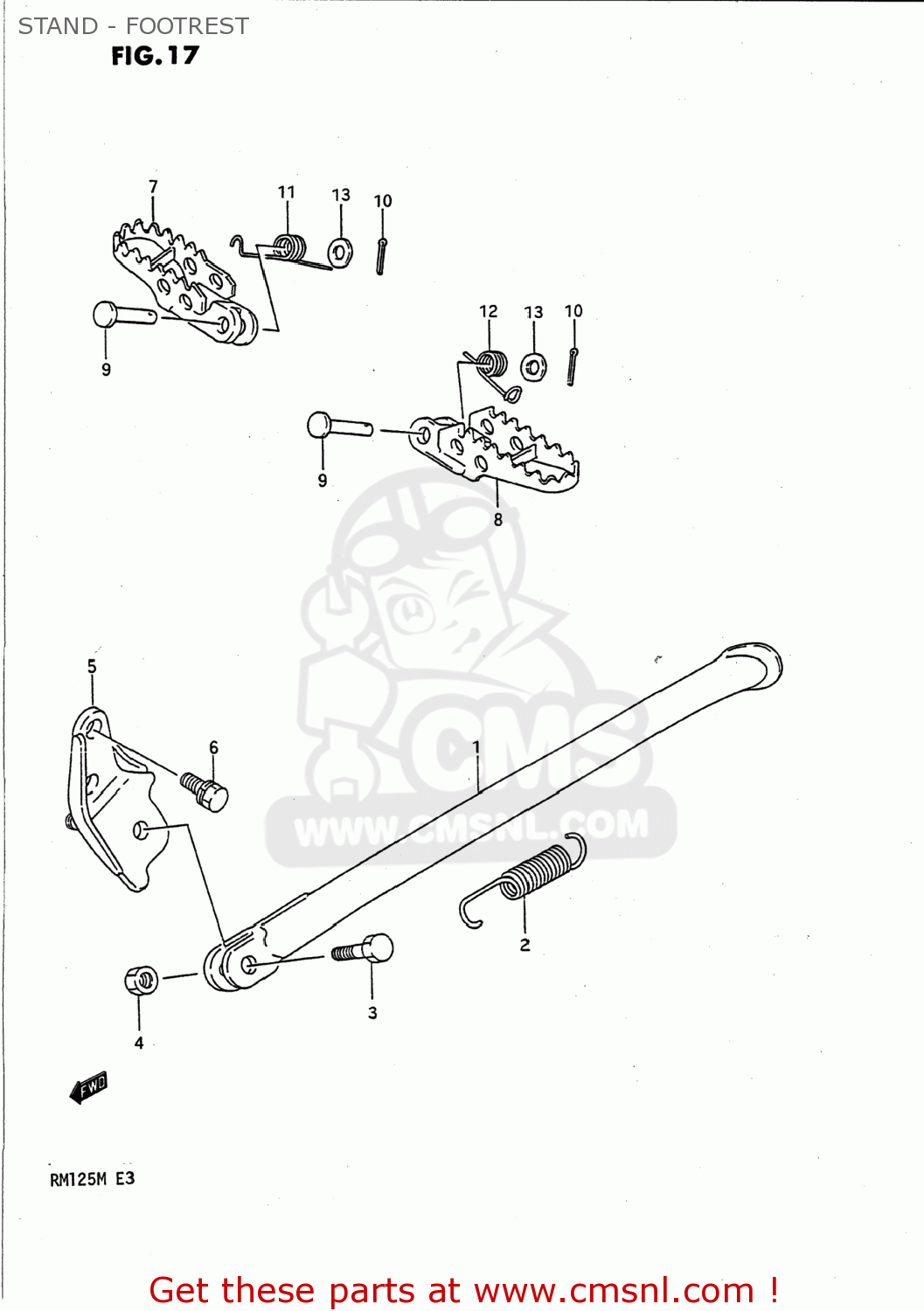

Stand - footrest diagram RM125 1991 (M) USA (E03)
STAND - FOOTREST RM125 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231026C0019F
ref: 1-1
42310-26C00-019
STAND,SIDE
€ 195.50
1-2
4231026C00019
ref: 1-2
STAND,PROP(BLACK)
€ 195.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022107
ref: 4
08310-00107
NUT
€ 2.50
5-1
4233026C0019F
ref: 5-1
42330-26C00-019
BRACKET,SIDE STAND
€ 92.00
5-2
4233026C00019
ref: 5-2
BRACKET,PROP STAND(BLACK)
€ 92.00
6-1
0151710168
ref: 6-1
01550-1016A
BOLT
€ 2.50
6-2
0151710165
ref: 6-2
01550-1016A
BOLT
€ 2.50
7-1
4355026C0119F
ref: 7-1
43550-26C02-19F
FOOTREST,FRONT,RIGHT
€ 46.50
7-2
4355026C0219F
ref: 7-2
FOOTREST,FR,R
€ 46.50
7-3
4355027C211AZ
ref: 7-3
43550-29E01
FOOTREST,FRONT,RIGHT
€ 46.50
8-1
4356026C0119F
ref: 8-1
43560-26C02-19F
FOOTREST,FRONT,LEFT
€ 46.50
8-2
4356026C0219F
ref: 8-2
FOOTREST,FR,L
€ 46.50
8-3
4356027C211AZ
ref: 8-3
43560-29E01
FOOTREST
€ 46.50
9-1
0920008064
ref: 9-1
PIN
€ 6.50
9-2
0920010019
ref: 9-2
PIN(10X41.5)
€ 6.00
10
0411125208
ref: 10
04111-2520A
PIN 25X20
€ 2.00
11-1
0944814040
ref: 11-1
09448-14040-XC0
SPRING
€ 2.50
11-2
0944814043
ref: 11-2
SPRING
€ 2.50
11-3
0944818027
ref: 11-3
SPRING
€ 4.50
12-1
0944814038
ref: 12-1
SPRING
€ 2.50
12-2
0944818026
ref: 12-2
SPRING
€ 6.00
13-1
0832221088
ref: 13-1
08322-01087
WASHER
€ 2.00
13-2
0832211107
ref: 13-2
08322-01107
WASHER
€ 2.50
