FRAME - SEAT
RM125 1991 (M) USA (E03)

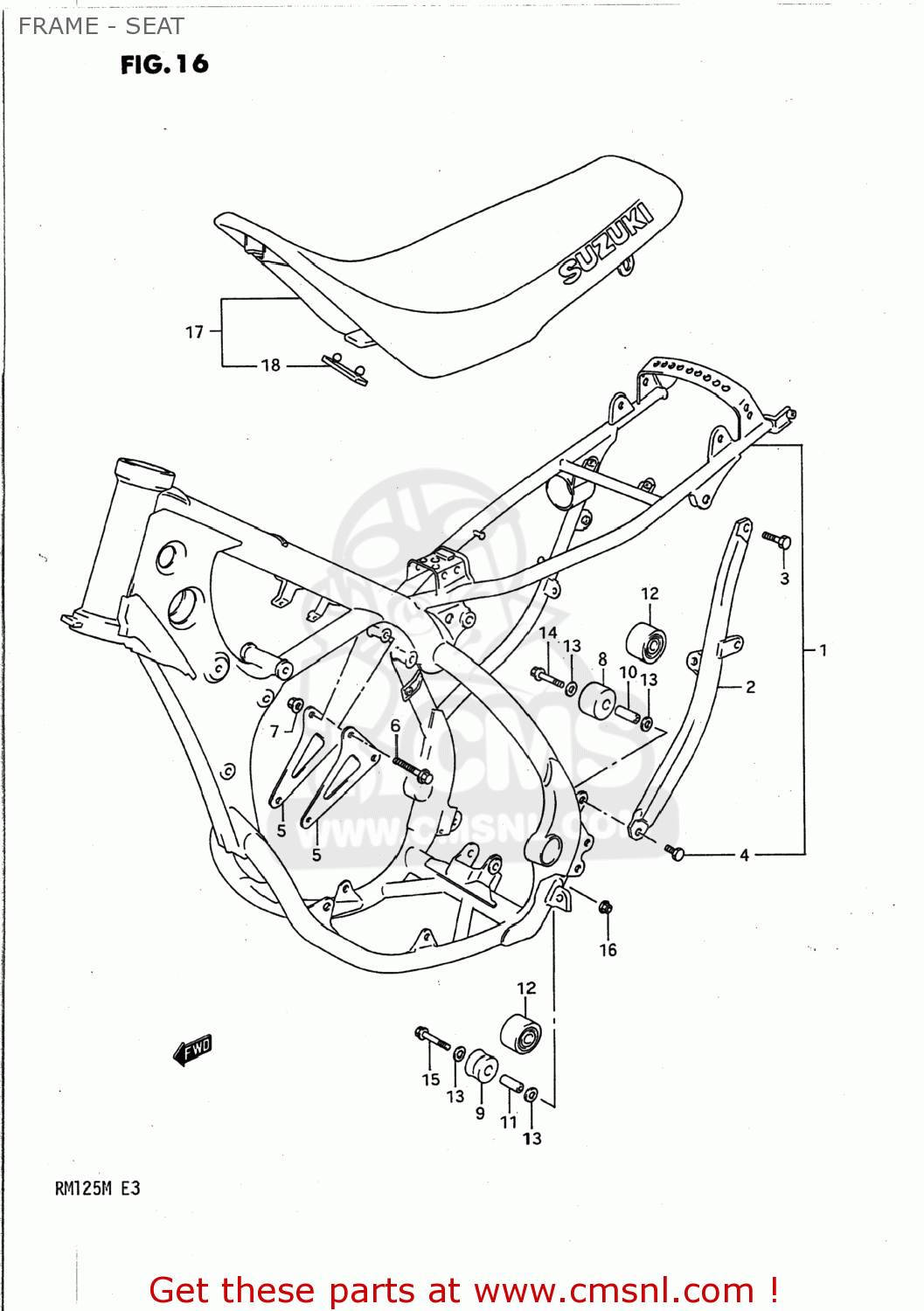

Frame - seat diagram RM125 1991 (M) USA (E03)
FRAME - SEAT RM125 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411002784019F
ref: 1-1
41100-27841-19F
FRAME
€ 828.00
1-2
411002785019F
ref: 1-2
FRAME
€ 827.00
1-3
41100278601AZ
ref: 1-3
FRAME SET
€ 827.00
2-1
4167027C00
ref: 2-1
TUBE,FRAME SIDE,LEFT
€ 82.50
2-2
4167027C10
ref: 2-2
41670-43D00
TUBE,FRAME SIDE,LEFT
€ 138.00
3
0910008274
ref: 3
BOLT(8X22)
€ 3.00
4
0910008267
ref: 4
09100-08284
BOLT
€ 4.00
5
4199327C01
ref: 5
PLATE,ENG MTG UPR
€ 27.50
6-1
0151708407
ref: 6-1
01550-08407
BOLT 8X40
€ 3.50
6-2
0910308083
ref: 6-2
BOLT(8X41)
€ 3.50
7-1
0831616088
ref: 7-1
08316-10087
NUT
€ 2.50
7-2
0915908034
ref: 7-2
NUT
€ 2.00
8
4391101B10
ref: 8
ROLLER,CHAIN CONTROL
€ 14.50
9
4391135B00
ref: 9
ROLLER,CHAIN CONTROL
€ 14.50
10
0918008136
ref: 10
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
11
0918008119
ref: 11
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
12
4391027C10
ref: 12
43910-27C11
ROLLER,CHAIN
€ 36.50
13-1
0821108221
ref: 13-1
WASHER
€ 2.50
13-2
0821108121
ref: 13-2
WASHER
€ 2.00
14
0910308083
ref: 14
BOLT(8X41)
€ 3.50
15
0910308043
ref: 15
BOLT(8X45)
€ 4.50
16
0831931087
ref: 16
NUT
€ 2.50
17-1
4510027C004UZ
ref: 17-1
45100-27C01-4UZ
SEAT ASSEMBLY
€ 321.00
17-2
4510027C10E83
ref: 17-2
SEAT SET
€ 217.00
18
0932108009
ref: 18
CUSHION
€ 4.00
