CRANKCASE COVER- WATER PUMP
RM125 1994 (R) USA (E03)

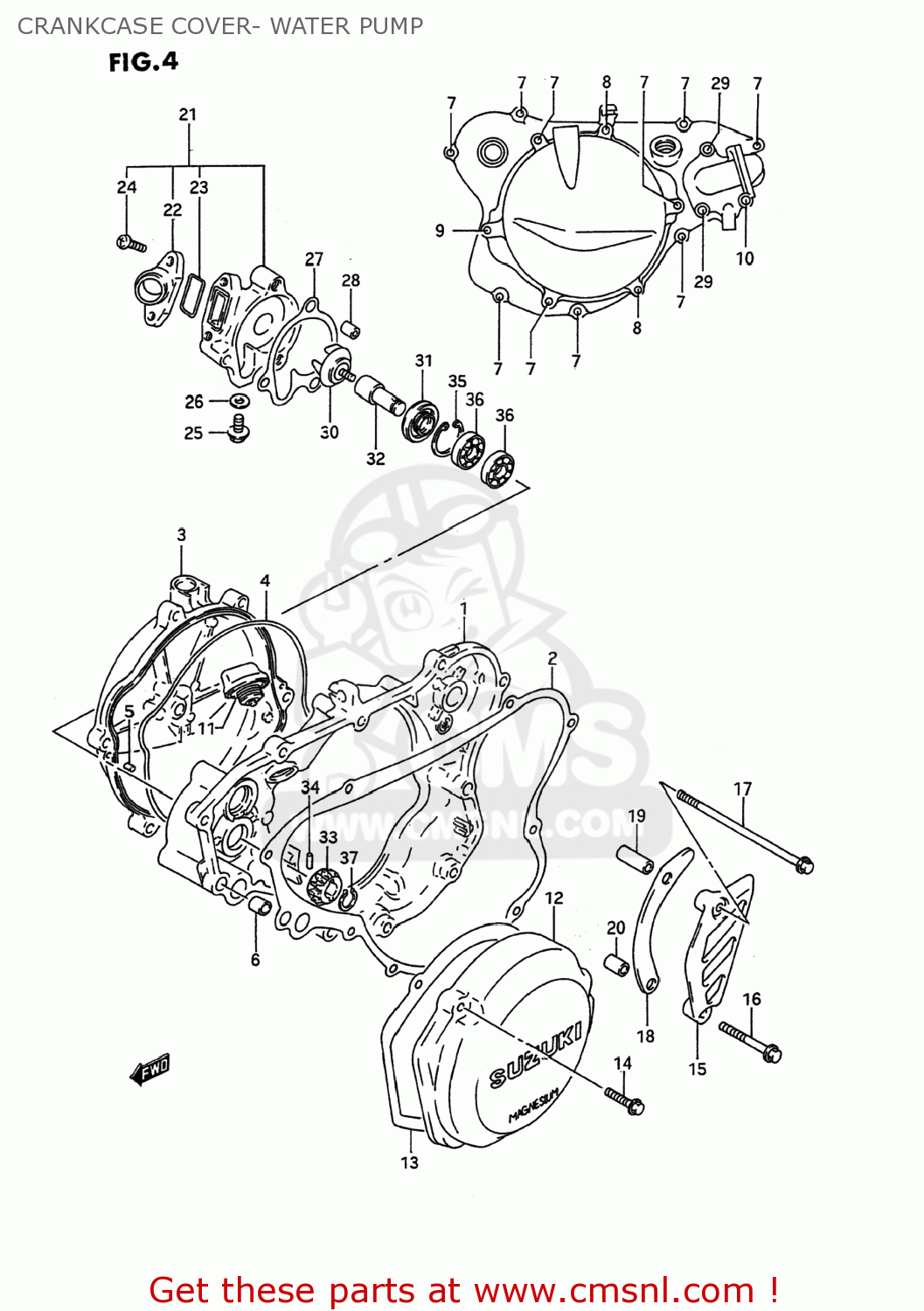

Crankcase cover- water pump diagram RM125 1994 (R) USA (E03)
CRANKCASE COVER- WATER PUMP RM125 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134143D00
ref: 1-1
11340-43811
COVER,CLUTCH
€ 727.00
1-2
1134043810
ref: 1-2
11340-43811
COVER,CLUTCH
€ 727.00
1-3
1134043811
ref: 1-3
COVER SET,CLUTCH
€ 727.00
2-1
1148243D00
ref: 2-1
11482-43D01
GASKET,CLUTCH COVER (NAS)
€ 17.00
2-2
1148243D01
ref: 2-2
GASKET,CLUTCH COVER (NAS)
€ 17.00
3-1
1137143D00
ref: 3-1
11371-43D10
COVER,CLUTCH,OUTER
€ 167.00
3-2
1137143D10
ref: 3-2
COVER,CLUTCH OUTER
€ 167.00
4
1148443D00
ref: 4
O RING,CLUTCH COVER OUTER
€ 11.00
5
0422104089
ref: 5
PIN
€ 1.50
6
0421109129
ref: 6
PIN
€ 2.00
7-1
0154706257
ref: 7-1
BOLT
€ 2.50
7-2
0154706253
ref: 7-2
01547-0625B
SCREW
€ 2.50
8-1
0154706657
ref: 8-1
BOLT
€ 2.00
8-2
0154706653
ref: 8-2
01547-0665B
BOLT
€ 2.00
9-1
0154706707
ref: 9-1
BOLT
€ 2.50
9-2
0154706703
ref: 9-2
01547-0670B
BOLT
€ 3.00
10-1
0910306147
ref: 10-1
09103-06501
BOLT
€ 4.00
10-2
0910306501
ref: 10-2
BOLT(6X100)
€ 4.00
11
0920020810
ref: 11
PLUG SET
€ 8.00
12-1
1135143D00
ref: 12-1
11351-43D10
COVER
€ 104.50
12-2
1135143D10
ref: 12-2
COVER,MAGNETO
€ 104.50
13
1148343D00
ref: 13
GASKET,MAGNETO COVER (NAS)
€ 7.00
14-1
0154706257
ref: 14-1
BOLT
€ 2.50
14-2
0154706253
ref: 14-2
01547-0625B
SCREW
€ 2.50
15-1
1136027C00
ref: 15-1
11360-28E00
COVER,SPROCKET
€ 28.00
15-2
1136028E00
ref: 15-2
COVER,ENGINE SPROCKET
€ 28.00
16-1
0154706407
ref: 16-1
BOLT
€ 2.50
16-2
0154706403
ref: 16-2
01547-0640B
BOLT
€ 3.00
17-1
0910306147
ref: 17-1
09103-06501
BOLT
€ 4.00
17-2
0910306501
ref: 17-2
BOLT(6X100)
€ 4.00
18-1
2764127C10
ref: 18-1
PLATE,FR CHAIN GUIDE(12T)
€ 9.00
18-2
2764127C00
ref: 18-2
PLATE,FR CHAIN GUIDE
€ 9.00
19
0918006203
ref: 19
SPACER(6.5X10.5X25)
€ 3.50
20
0918006221
ref: 20
SPACER(6.5X10.5X12)
€ 5.50
21-1
1741043D01
ref: 21-1
17410-43D11
CASE ASSEMBLY,WATER PUMP
€ 72.50
21-2
1741043D10
ref: 21-2
17410-43D11
CASE,WATER PUMP
€ 72.50
21-3
1741043D11
ref: 21-3
CASE ASSY,WATER PUMP
€ 72.50
22-1
1741228C10
ref: 22-1
17412-28E00
CONNECTOR
€ 23.50
22-2
1741228E00
ref: 22-2
CONNECTOR
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
€ 3.00
24-1
0211206164
ref: 24-1
02112-0616A
SCREW
€ 2.00
24-2
0211206163
ref: 24-2
02112-0616A
SCREW 6X16
€ 2.00
25-1
1741500B00
ref: 25-1
17415-43D00
BOLT,BLEEDER
€ 3.00
25-2
1741543D00
ref: 25-2
BOLT
€ 3.00
26
1741328C10
ref: 26
WASHER
€ 1.50
27
1743143D00
ref: 27
GASKET,WATER PUMP CASE (NAS)
€ 8.50
28
0421109129
ref: 28
PIN
€ 2.00
29-1
0154706357
ref: 29-1
BOLT
€ 2.50
29-2
0154706353
ref: 29-2
01547-0635B
BOLT
€ 3.00
30-1
1749101B03
ref: 30-1
17491-43D01
IMPELLER,WATER PUMP
€ 18.50
30-2
1749143D00
ref: 30-2
17491-43D01
IMPELLER,WATER PUMP
€ 18.50
31
1746128C10
ref: 31
17461-03B00
SEAL,WATER PUMP OIL
€ 7.00
32
1751127C10
ref: 32
17511-27C11
SHAFT,WATER PUMP
€ 44.00
33-1
1744127C10
ref: 33-1
17441-43D20
GEAR,WATER PUMP DRIVEN
€ 29.00
33-2
1744143D20
ref: 33-2
GEAR,WATER PUMP DRIVEN(NT:22)
€ 29.00
34
0926103010
ref: 34
PIN(3X13.8)
€ 3.00
35
0833141246
ref: 35
08331-41249
CIRCLIP
€ 2.50
36
0811369000
ref: 36
BEARING
€ 23.50
37
0833131106
ref: 37
08331-3110A
CIRCLIP,10MM
€ 2.00
