CYLINDER
RM125 1994 (R) USA (E03)

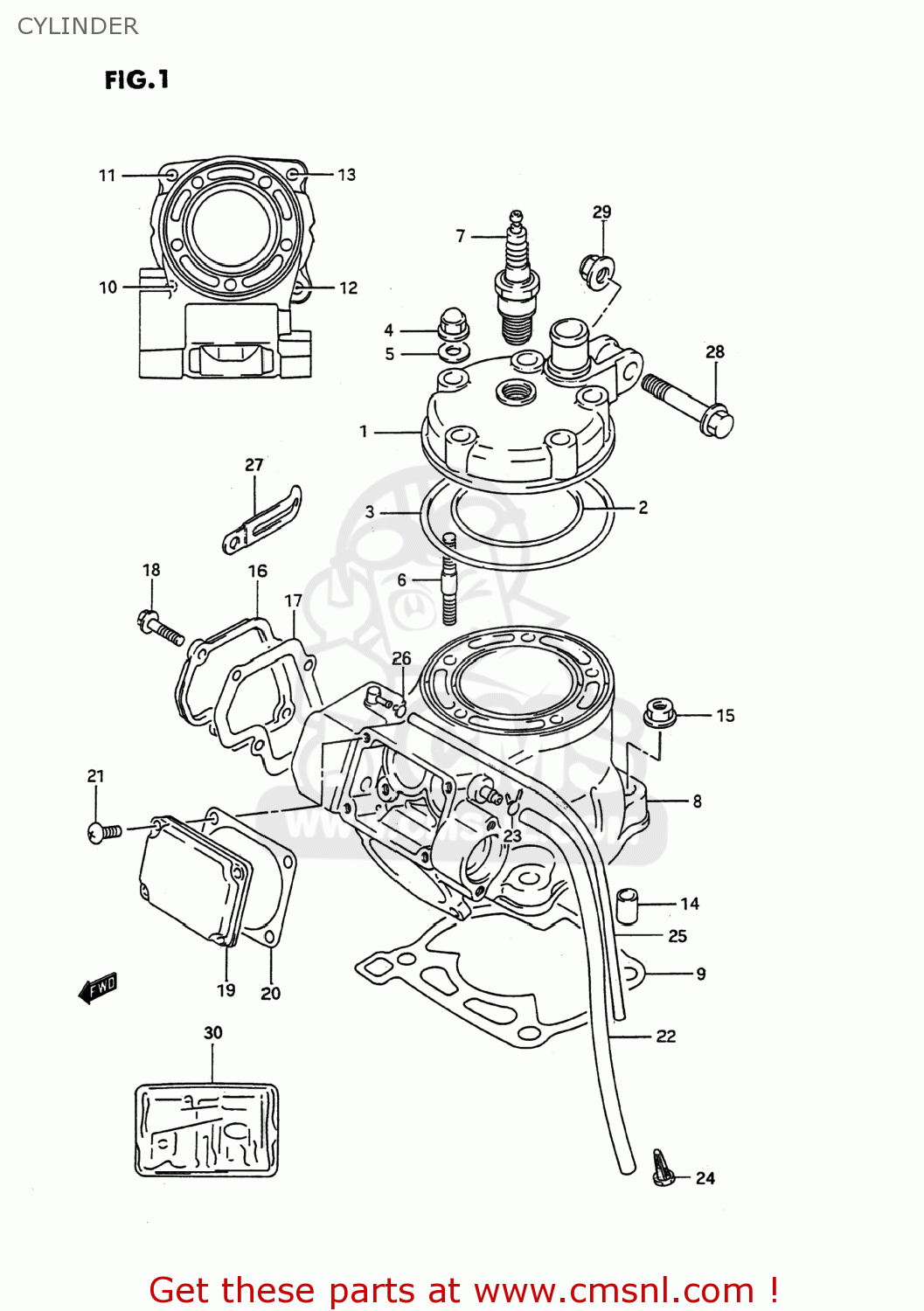

Cylinder diagram RM125 1994 (R) USA (E03)
CYLINDER RM125 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111127C31
ref: 1-1
11111-27C35
HEAD,CYLINDER
€ 123.00
1-2
1111127C32
ref: 1-2
11111-27C35
HEAD,CYLINDER
€ 123.00
1-3
1111127C33
ref: 1-3
11111-27C35
HEAD,CYLINDER
€ 123.00
2
1114727C11
ref: 2
O RING,CYLINDER HEAD NO.1
€ 12.00
3
1114827C11
ref: 3
O RING,CYLINDER HEAD NO.2
€ 6.50
4
0915908074
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7
0948200500
ref: 7
PLUG,SPARK(R4118S-9)
€ 48.50
8-1
1120027832
ref: 8-1
11200-27861
CYLINDER
€ 602.00
8-2
1120027840
ref: 8-2
11200-27861
CYLINDER
€ 602.00
8-3
1120027850
ref: 8-3
11200-27861
CYLINDER
€ 602.00
8-4
1120027860
ref: 8-4
11200-27861
CYLINDER
€ 602.00
9
1124127C10
ref: 9
GASKET,CYLINDER (NAS)
€ 11.00
10
0142108258
ref: 10
01421-0825A
STUD 8X25
€ 2.50
11
0910808142
ref: 11
BOLT,STUD
€ 3.00
12
0142108358
ref: 12
01421-0835A
STUD BOLT
€ 2.00
13
0910808144
ref: 13
BOLT,STUD
€ 4.50
14
0920611004
ref: 14
PIN(8.4X11X14)
€ 6.00
15-1
0831616088
ref: 15-1
08316-10087
NUT
€ 2.50
15-2
0831610083
ref: 15-2
08316-1008B
NUT
€ 3.00
16
1123127C30
ref: 16
COVER,CYLINDER NO.1
€ 25.00
17-1
1123327C31
ref: 17-1
11233-27C34
GASKET,CYLINDER COVER (NAS)
€ 6.50
17-2
1123327C32
ref: 17-2
11233-27C34
GASKET,CYLINDER COVER NO.1 (NAS)
€ 6.50
18-1
0154706167
ref: 18-1
BOLT
€ 2.00
18-2
0154706163
ref: 18-2
01547-0616B
BOLT
€ 2.50
19
1124827C30
ref: 19
COVER,CYLINDER NO.2
€ 44.50
20-1
1123827C30
ref: 20-1
11238-42E00
GASKET,CYLINDER COVER NO.2 (NAS)
€ 5.00
20-2
1123827C31
ref: 20-2
11238-42E00
GASKET,CYLINDER COVER NO.2 (NAS)
€ 5.00
21-1
0211205167
ref: 21-1
SCREW
€ 2.50
21-2
0150005163
ref: 21-2
01500-0516B
BOLT
€ 1.50
22
0934309501
ref: 22
HOSE
€ 13.50
23-1
0940112407
ref: 23-1
09401-12405
CLAMP
€ 3.00
23-2
0940112405
ref: 23-2
CLIP
€ 3.00
24
1127128E20
ref: 24
FILTER,EXH VALVE BREATHER HOSE
€ 12.00
25
0935250823600
ref: 25
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
26
0940108401
ref: 26
CLIP
€ 1.50
27-1
0940406402
ref: 27-1
09404-06432
CLAMP
€ 2.50
27-2
0940406429
ref: 27-2
CLAMP(L:45)
€ 2.50
28
0910308083
ref: 28
BOLT(8X41)
€ 3.50
29-1
0915908034
ref: 29-1
NUT
€ 2.00
29-2
0915908067
ref: 29-2
NUT
€ 5.50
30-1
1140043862
ref: 30-1
11400-43867
GASKET SET (NAS)
€ 147.00
30-2
1140043863
ref: 30-2
11400-43867
GASKET SET (NAS)
€ 147.00
30-3
1140043864
ref: 30-3
11400-43867
GASKET SET (NAS)
€ 147.00
30-4
1140043865
ref: 30-4
11400-43867
GASKET SET (NAS)
€ 147.00
