CRANKCASE COVER- WATER PUMP (MODEL T/V)

RM125 1998 (W) (E02 E04 E24 E37)

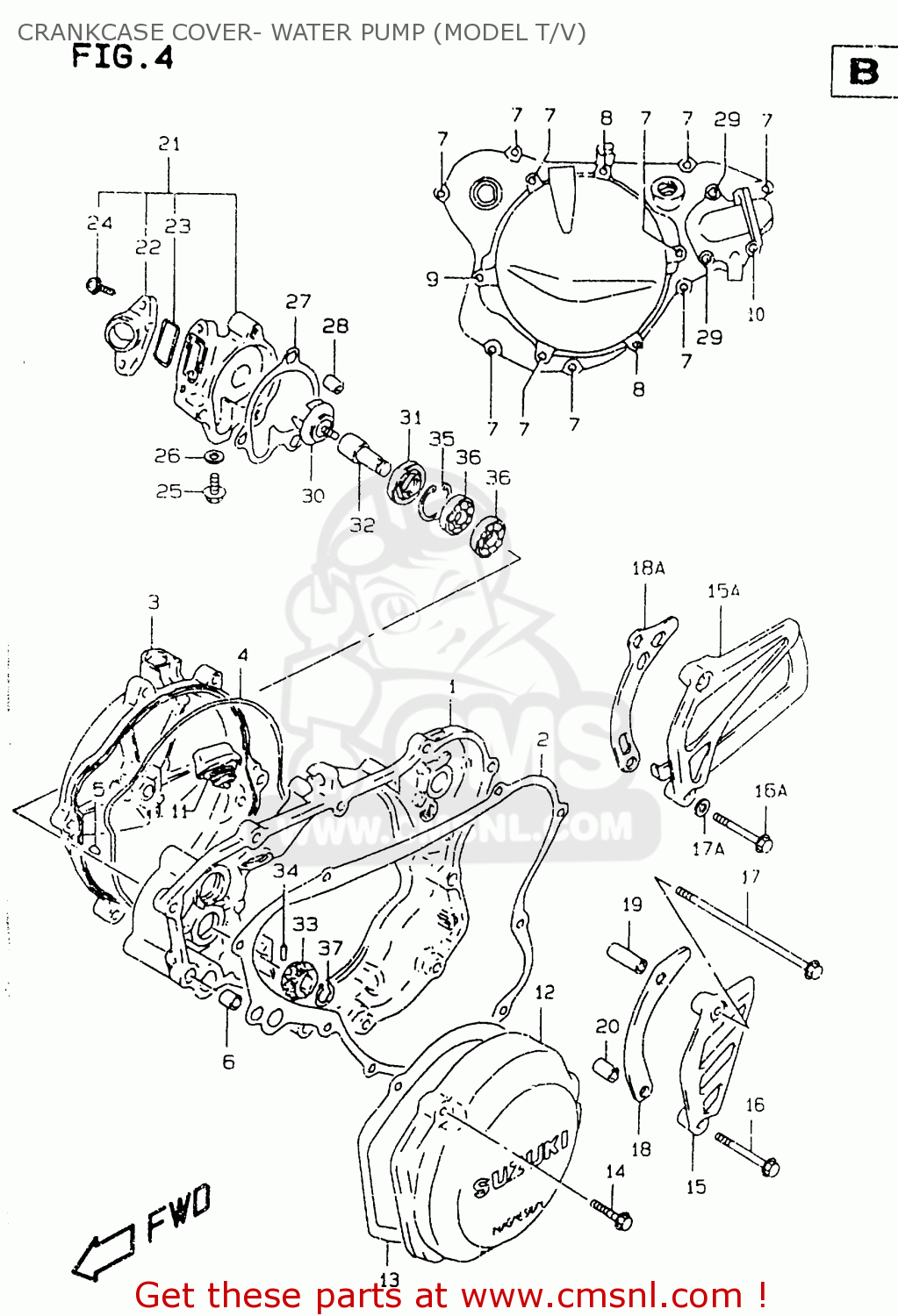

Crankcase cover- water pump (model t/v) diagram RM125 1998 (W) (E02 E04 E24 E37)

CRANKCASE COVER- WATER PUMP (MODEL T/V) RM125 1998 (W) (E02 E04 E24 E37)
CRANKCASE COVER- WATER PUMP (MODEL T/V) RM125 1998 (W) (E02 E04 E24 E37)
CRANKCASE COVER- WATER PUMP (MODEL T/V) RM125 1998 (W) (E02 E04 E24 E37)
prices are in EUR
ref
part #
description
quantity
1
1134043811
ref: 1
COVER SET,CLUTCH
€ 727.00
2
1148243D01
ref: 2
GASKET,CLUTCH COVER (NAS)
1148243D01
€ 17.00
3
1137143D10
ref: 3
COVER,CLUTCH OUTER
1137143D10
€ 167.00
4
1148443D00
ref: 4
O RING,CLUTCH COVER OUTER
1148443D00
€ 11.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
0421109129
ref: 6
PIN
0421109129
€ 2.00
7
0154706253
ref: 7
SCREW
0154706253
€ 2.50
8
0154706653
ref: 8
BOLT
€ 2.00
9
0154706703
ref: 9
BOLT
€ 3.00
10
0910306501
ref: 10
BOLT(6X100)
0910306501
€ 4.00
11
0920020810
ref: 11
PLUG SET
0920020810
€ 8.00
12
1135143D10
ref: 12
COVER,MAGNETO
1135143D10
€ 104.50
13
1148343D00
ref: 13
GASKET,MAGNETO COVER (NAS)
1148343D00
€ 7.00
14
0154706253
ref: 14
SCREW
0154706253
€ 2.50
15
1136028E00
ref: 15
MODEL T
COVER,ENGINE SPROCKET
1136028E00
€ 28.00
15A
1136036E00
ref: 15A
MODEL V
COVER,ENGINE SPROCKET
1136036E00
€ 27.00
16
0154706403
ref: 16
MODEL T
BOLT
0154706403
€ 3.00
16A
0154706303
ref: 16A
MODEL V
BOLT,G/S SWITC
0154706303
€ 3.00
17
0910306501
ref: 17
MODEL T
BOLT(6X100)
0910306501
€ 4.00
17A
0916006093
ref: 17A
MODEL V
WASHER (6.2X14X2)
0916006093
€ 2.00
18-1
2764127C10
ref: 18-1
MODEL T
PLATE,FR CHAIN GUIDE(12T)
2764127C10
€ 9.00
18-2
2764127C00
ref: 18-2
OPT MODEL T FOR 13T
PLATE,FR CHAIN GUIDE
2764127C00
€ 9.00
18A
2764137E00
ref: 18A
MODEL V
PLATE,FR CHAIN GUIDE
2764137E00
€ 7.00
19
0918006203
ref: 19
MODEL T
SPACER(6.5X10.5X25)
0918006203
€ 3.50
20
0918006221
ref: 20
MODEL T
SPACER(6.5X10.5X12)
0918006221
€ 5.50
21
1741043D11
ref: 21
CASE ASSY,WATER PUMP
1741043D11
€ 72.50
22
1741228E00
ref: 22
CONNECTOR
1741228E00
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
1741414300
€ 3.00
24
0211206163
ref: 24
SCREW 6X16
0211206163
€ 2.00
25
1741543D00
ref: 25
BOLT
1741543D00
€ 3.00
26
1741328C10
ref: 26
WASHER
1741328C10
€ 1.50
27
1743143D00
ref: 27
GASKET,WATER PUMP CASE (NAS)
1743143D00
€ 8.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0154706353
ref: 29
BOLT
0154706353
€ 3.00
30
1749143D00
ref: 30
IMPELLER,WATER PUMP
1749143D00
€ 18.50
31
1746128C10
ref: 31
SEAL,WATER PUMP OIL
1746128C10
€ 7.00
32
1751127C11
ref: 32
SHAFT,WATER PUMP
1751127C11
€ 44.00
33
1744143D20
ref: 33
GEAR,WATER PUMP DRIVEN(NT:22)
1744143D20
€ 29.00
34
0926103010
ref: 34
PIN(3X13.8)
0926103010
€ 3.00
35
0833141246
ref: 35
CIRCLIP
0833141246
€ 2.50
36
0811369000
ref: 36
BEARING
0811369000
€ 23.50
37
0833131106
ref: 37
CIRCLIP,10MM
0833131106
€ 2.00
