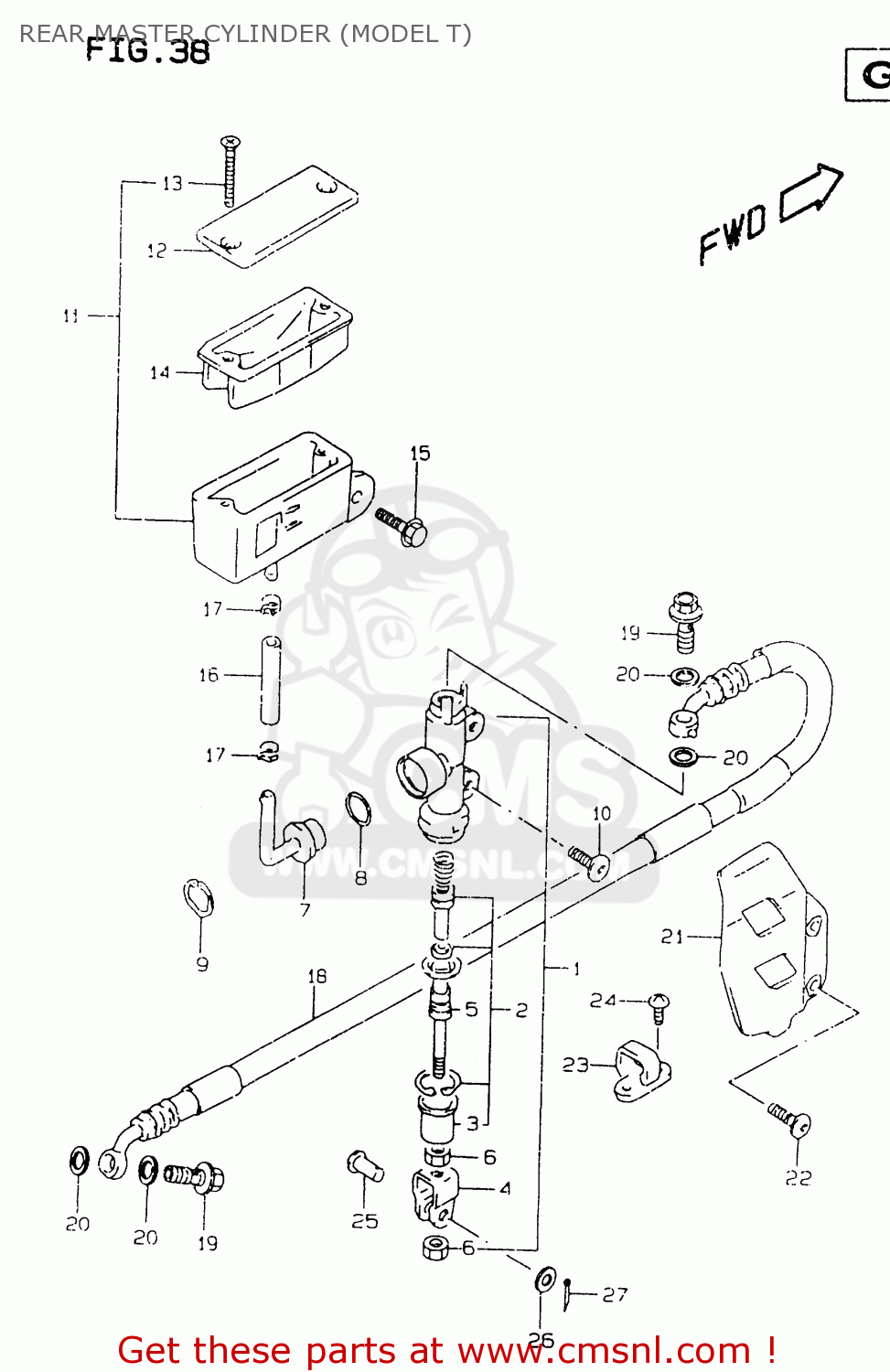

REAR MASTER CYLINDER (MODEL T)

ref

part #

description

quantity

1

6960036E00
ref: 1

CYLINDER ASSY,RR MASTER

€ 170.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967036E00
ref: 5

ROD,PUSH

€ 15.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

6974036E00
ref: 11

TANK ASSY,RESERVOIR

€ 56.00

12

5966927C01
ref: 12

CAP

€ 10.00

13

6968936E00
ref: 13

SCREW

€ 2.00

14

5966714500
ref: 14

DIAPHRAGM

€ 6.50

15

0154706123
ref: 15

BOLT

€ 2.00

16

6973136E00
ref: 16

HOSE,RESERVOIR TANK

€ 8.50

17

6973500B20
ref: 17

CLAMP,RESERVOIR HOSE

€ 3.00

18

6948036E00
ref: 18

HOSE COMP,REAR BRAKE

€ 94.00

19

0936010042
ref: 19

BOLT UNION

€ 5.00

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

4357036E00
ref: 21

GUARD,RR MASTER CYLINDER

€ 31.50

22

0913906067
ref: 22

SCREW(6X16)

€ 3.00

23

6119627C20
ref: 23

GUIDE,RR BRAKE HOSE

€ 9.00

24

0214205103
ref: 24

SCREW

€ 2.50

25

0920008048
ref: 25

PIN(8X20)

€ 3.00

26

0916008074
ref: 26

WASHER(8.5X13X1.6)

€ 2.50

27

0411120158
ref: 27

PIN

€ 1.50
