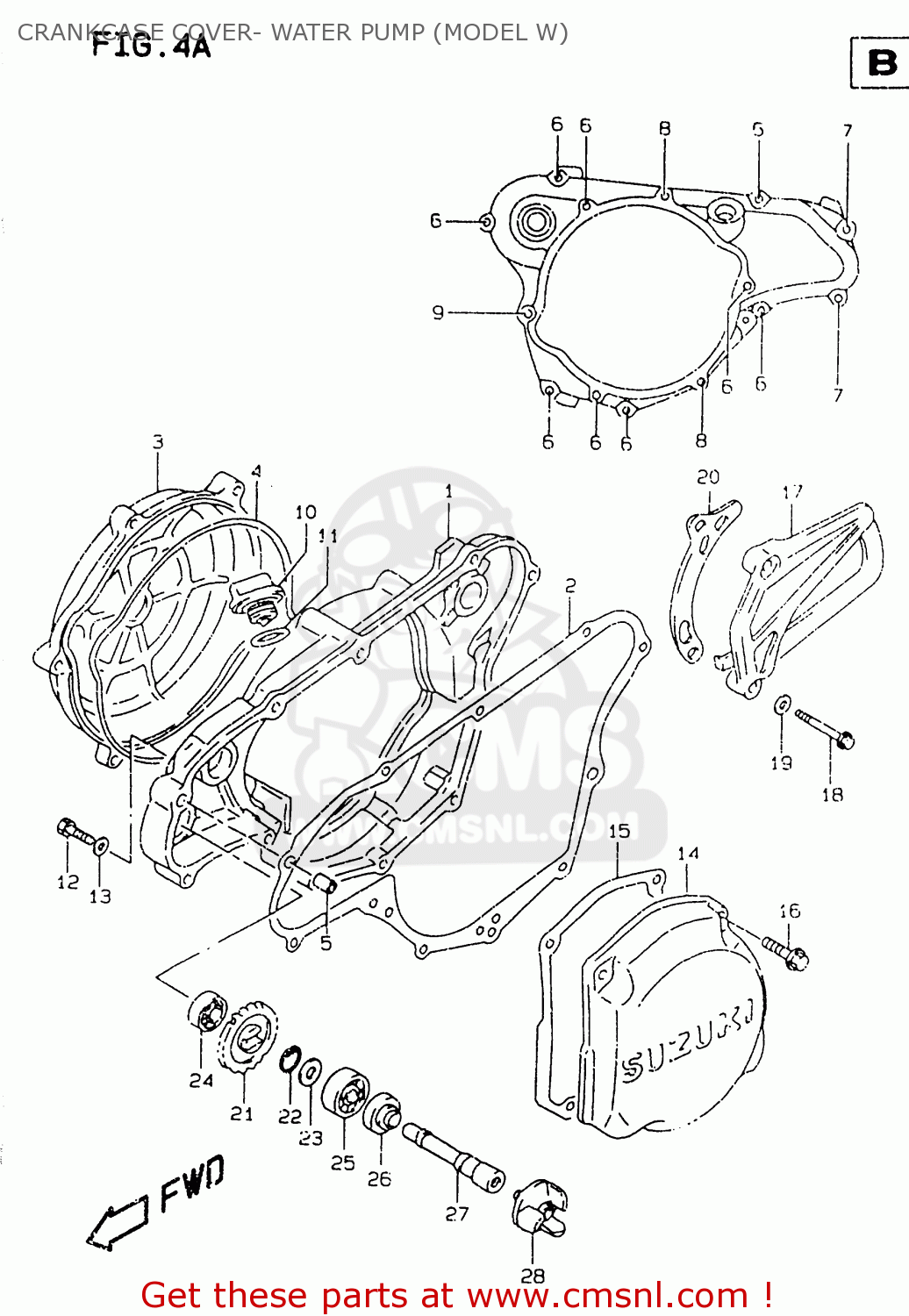

CRANKCASE COVER- WATER PUMP (MODEL W)

ref

part #

description

quantity

1

1134136E10
ref: 1

COVER,CLUTCH

€ 184.00

2

1148236E10
ref: 2

GASKET,CLUTCH COVER

€ 14.50

3

1137136E10
ref: 3

COVER,CLUTCH,OUTER

€ 121.00

4

1148436E10
ref: 4

O RING,CLUTCH COVER OUTER

€ 16.00

5

0421109129
ref: 5

PIN

€ 2.00

6

0154706253
ref: 6

SCREW

€ 2.50

7

0154706303
ref: 7

BOLT,G/S SWITC

€ 3.00

8

0154706653
ref: 8

BOLT

€ 2.00

9

0154706703
ref: 9

BOLT

€ 3.00

10

1197112C51
ref: 10

PLUG,OIL FILLER

€ 7.00

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12

0912806004
ref: 12

SCREW(6X10)

€ 1.50

13

0916806004
ref: 13

GASKET(6.2X11X1).2 (NAS)

€ 1.50

14

1135136E10
ref: 14

COVER,MAGNETO

€ 114.00

15

1148336E10
ref: 15

GASKET,MAGNETO COVER

€ 6.00

16

0154706203
ref: 16

SCREW

€ 2.50

17

1136036E00
ref: 17

COVER,ENGINE SPROCKET

€ 27.00

18

0154706303
ref: 18

BOLT,G/S SWITC

€ 3.00

19

0916006126
ref: 19

WASHER(6.5X14X2)

€ 2.00

20

2764137E00
ref: 20

PLATE,FR CHAIN GUIDE

€ 7.00

21

1744136E10
ref: 21

GEAR,WATER PUMP DRIVEN

€ 38.50

22

0833131106
ref: 22

CIRCLIP,10MM

€ 2.00

23

0918110111
ref: 23

SHIM(10X14X1)

€ 2.00

24

0926208005
ref: 24

BEARING(8X22X7)

€ 12.50

25

0926210014
ref: 25

BEARING(10X26X8)

€ 13.00

26

1746128C10
ref: 26

SEAL,WATER PUMP OIL

€ 7.00

27

1751136E10
ref: 27

SHAFT,WATER PUMP

€ 81.00

28

1749136E10
ref: 28

IMPELLER,WATER PUMP

€ 20.00

all assemblies
