CARBURETOR

RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

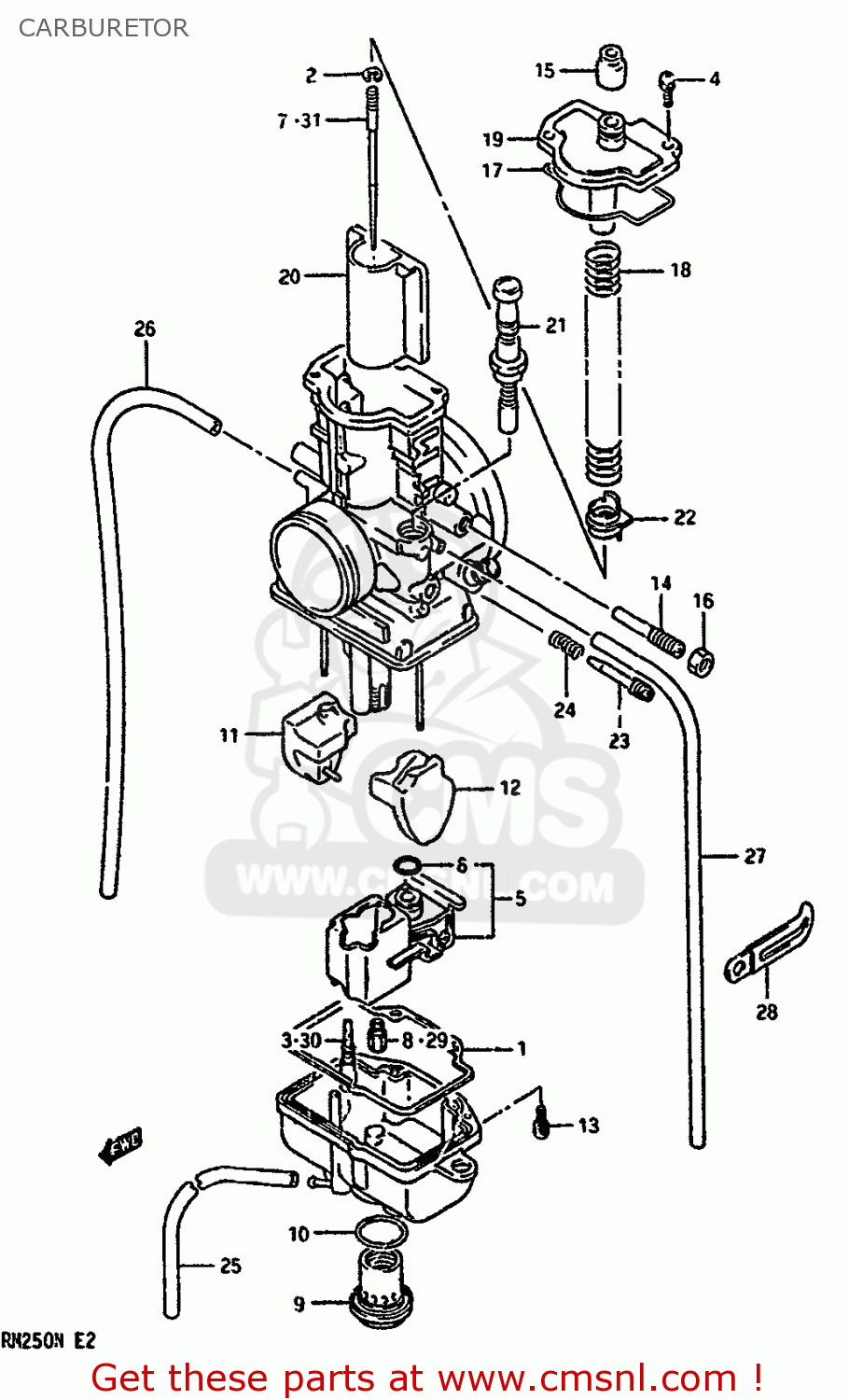

Carburetor diagram RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CARBURETOR RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CARBURETOR RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
1320028C00
ref: 0
MODEL K
CARBURETOR ASSEMBLY
€ 462.00
0
1320028C10
ref: 0
MODEL L
CARBURETOR ASSEMBLY
€ 462.00
0
1320028C20
ref: 0
MODEL M
CARBURETOR ASSEMBLY
€ 306.00
0
1320028C30
ref: 0
MODEL N
CARBURETOR ASSEMBLY
€ 306.00
1
1369626C00
ref: 1
O RING,FLOAT CHAMBER
1369626C00
€ 12.50
2
1339431210
ref: 2
CLIP,NEEDLE
1339431210
€ 3.50
3-1
0949255013
ref: 3-1
MODEL K
JET,PILOT(55)
0949255013
€ 11.50
3-2
0949250018
ref: 3-2
MODEL L/M
JET,PILOT(50)
0949250018
€ 17.50
3-3
0949245026
ref: 3-3
MODEL N
JET,PILOT(45)
0949245026
€ 14.00
4
1360104128
ref: 4
SCREW
€ 2.00
5
1337026C00
ref: 5
VALVE ASSY,NEEDLE
1337026C00
€ 41.00
6
1337444080
ref: 6
O-RING,NEEDLE VALVE
1337444080
€ 6.00
7-1
1338328C00
ref: 7-1
MODEL K
NEEDLE JET (6AEJ01-62)
€ 13.50
7-2
1338328C20
ref: 7-2
MODEL L
NEEDLE JET
1338328C20
€ 14.00
7-3
1338328C70
ref: 7-3
MODEL M
NEEDLE JET (6AEL01-60)
1338328C70
€ 13.00
7-4
1338328C90
ref: 7-4
MODEL N
NEEDLE JET (6AFL01-60)
€ 14.00
8-1
0949174003
ref: 8-1
MODEL K/L/M
JET,MAIN(370)
0949174003
€ 8.50
8-2
0949176003
ref: 8-2
MODEL N
JET,MAIN(380)
0949176003
€ 8.50
9
1324727C00
ref: 9
CAP,DRAIN
1324727C00
€ 15.00
10
1338927C00
ref: 10
O RING
1338927C00
€ 6.50
11
1325201B20
ref: 11
FLOAT,R
1325201B20
€ 22.50
12
1325201B21
ref: 12
FLOAT,L
1325201B21
€ 21.50
13
0211233086
ref: 13
SCREW
€ 2.00
14
1327926C00
ref: 14
ADJUSTER
1327926C00
€ 10.00
15
1368104010
ref: 15
CAP
1368104010
€ 3.00
16
1360747070
ref: 16
NUT
1360747070
€ 4.00
17
1325126C00
ref: 17
O RING,TOP CAP
1325126C00
€ 9.50
18
1357326C00
ref: 18
SPRING
1357326C00
€ 6.50
19
1326126C00
ref: 19
CAP,TOP
1326126C00
€ 27.00
20
1355126C00
ref: 20
VALVE,PISTON(CA:3.5)
1355126C00
€ 117.50
21
1341126C00
ref: 21
PLUNGER ASSY
1341126C00
€ 41.00
22
1342426C00
ref: 22
RING
1342426C00
€ 7.50
23
1326709400
ref: 23
SCREW,AIR
1326709400
€ 5.00
24
1326835010
ref: 24
SPRING
1326835010
€ 3.00
25-1
0935130503600
ref: 25-1
MODEL K/L/M
HOSE(3X5X600)
0935130503600
€ 6.50
25-2
0935130503600
ref: 25-2
MODEL N
HOSE(3X5X600)
0935130503600
€ 6.50
26-1
0935135653600
ref: 26-1
MODEL K/L/M
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
26-2
0935135653600
ref: 26-2
MODEL N
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
27
0935135653600
ref: 27
HOSE(3.5X6.5X600)
0935135653600
€ 5.50
28
0940406402
ref: 28
CLAMP
€ 2.50
29-1
0949166002
ref: 29-1
OPT
JET,MAIN(330)
0949166002
€ 10.50
29-2
0949168002
ref: 29-2
OPT
JET,MAIN(340)
0949168002
€ 8.50
29-3
0949170011
ref: 29-3
OPT
JET,MAIN(350)
0949170011
€ 8.50
29-4
0949178005
ref: 29-4
OPT
JET,MAIN(390)
0949178005
€ 8.50
29-5
0949180010
ref: 29-5
OPT
JET,MAIN(400)
0949180010
€ 8.50
29-6
0949182007
ref: 29-6
OPT
JET,MAIN(410)
0949182007
€ 11.00
29-7
0949184004
ref: 29-7
OPT
JET,MAIN (420)
€ 7.50
29-8
0949186002
ref: 29-8
OPT
JET,MAIN (#430)
0949186002
€ 8.50
29-9
0949188001
ref: 29-9
OPT
JET,MAIN(440)
0949188001
€ 15.50
30-1
0949235016
ref: 30-1
OPT
JET,PILOT(35)
0949235016
€ 9.50
30-2
0949240021
ref: 30-2
OPT
JET,PILOT(40)
0949240021
€ 17.50
30-3
0949245026
ref: 30-3
OPT
JET,PILOT(45)
0949245026
€ 14.00
30-4
0949250018
ref: 30-4
OPT
JET,PILOT(50)
0949250018
€ 17.50
30-5
0949255013
ref: 30-5
OPT
JET,PILOT(55)
0949255013
€ 11.50
30-6
0949260013
ref: 30-6
OPT
JET,PILOT (60)
0949260013
€ 10.50
30-7
0949265007
ref: 30-7
OPT
JET,PILOT (65)
0949265007
€ 9.00
30-8
0949270008
ref: 30-8
OPT
JET,PILOT(70)
€ 13.00
31-1
1338328C40
ref: 31-1
MODEL K/L OPT
NEEDLE JET (6AEJ01-59)
€ 9.00
31-2
1338328C30
ref: 31-2
MODEL K/L OPT
NEEDLE JET (6AEJ01-60)
€ 11.50
31-3
1338328C10
ref: 31-3
MODEL K/L OPT
NEEDLE JET
€ 8.00
31-4
1338328C00
ref: 31-4
MODEL K/L OPT
NEEDLE JET (6AEJ01-62)
€ 13.50
31-5
1338328C20
ref: 31-5
MODEL K/L OPT
NEEDLE JET
1338328C20
€ 14.00
31-6
1338328C50
ref: 31-6
MODEL K/L OPT
NEEDLE JET (6AEJ01-64)
1338328C50
€ 8.00
31-7
1338328C60
ref: 31-7
MODEL M OPT
NEEDLE JET (6AEL01-59)
€ 8.50
31-8
1338328C80
ref: 31-8
MODEL N OPT
NEEDLE,JET(6AEL01-61)
€ 13.00
31-9
1338328CA0
ref: 31-9
MODEL N OPT
NEEDLE JET (6AFL01-59)
1338328CA0
€ 10.50
31-10
1338328C80
ref: 31-10
MODEL N OPT
NEEDLE,JET(6AEL01-61)
€ 13.00
