MUFFLER

RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

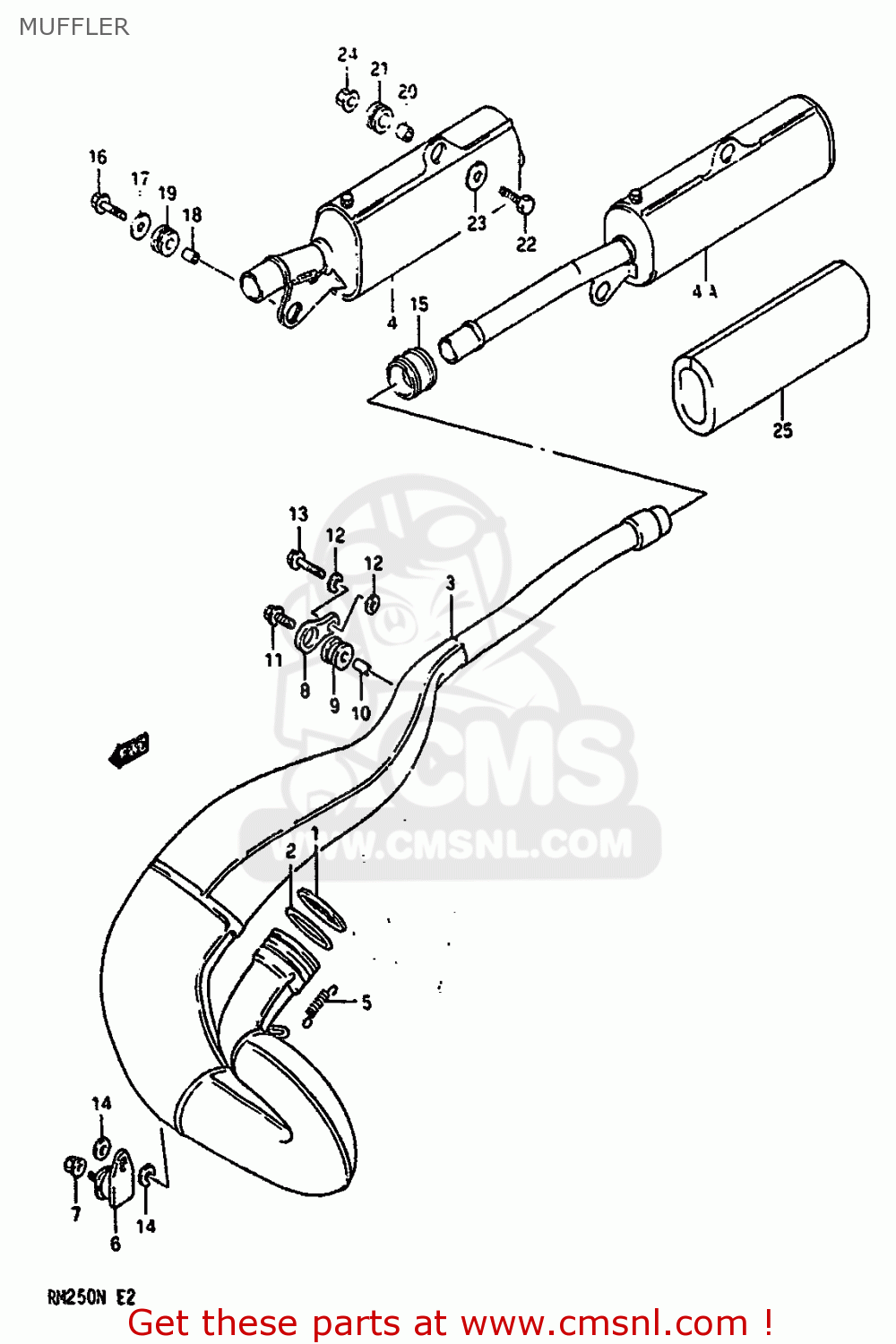

Muffler diagram RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

MUFFLER RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
MUFFLER RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
MUFFLER RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1417228C00
ref: 1-1
MODEL K/L/M
WASHER,EXHAUST PIPE
1417228C00
€ 2.00
1-2
1417228C30
ref: 1-2
MODEL N
WASHER,EXHAUST PIPE
1417228C30
€ 2.00
2-1
1417128C01
ref: 2-1
MODEL K/L/M
O RING,EX PIPE
1417128C01
€ 20.50
2-2
1417128C30
ref: 2-2
MODEL N
O RING,EXHAUST PIPE
1417128C30
€ 19.00
3-1
1431028C01H01
ref: 3-1
MODEL K
BODY,MUFFLER,FIRST
1431028C01H01
€ 385.00
3-2
1431028C10H01
ref: 3-2
MODEL L
BODY,MUFFLER,FIRST
1431028C10H01
€ 370.00
3-3
1431028C20H01
ref: 3-3
MODEL M
BODY,MUFFLER
1431028C20H01
€ 370.00
3-4
1431028C30H01
ref: 3-4
MODEL N
BODY,MUFFLER,FIRST
1431028C30H01
€ 443.50
4
1433028C03H01
ref: 4
MODEL K/L
BODY,MUFFLER 2ND
€ 127.00
4A
1433028C20H01
ref: 4A
MODEL M/N
BODY,MUFFLER
€ 123.50
5-1
0944311024
ref: 5-1
MODEL K/L/M
SPRING
0944311024
€ 20.50
5-2
0944312042
ref: 5-2
MODEL N
SPRING
0944312042
€ 10.50
6
1477041101
ref: 6
DAMPER,MUFFLER SUPPORT
1477041101
€ 13.50
7
0831931087
ref: 7
NUT
0831931087
€ 2.50
8-1
1476101B00
ref: 8-1
MODEL K
PLATE,MUFFLER MTG
1476101B00
€ 10.50
8-2
1476127C00
ref: 8-2
MODEL L/M/N
PLATE,MUFFLER MTG
1476127C00
€ 7.00
9
1476201B01
ref: 9
CUSHION,MUFFLER
1476201B01
€ 3.00
10-1
0918006136
ref: 10-1
MODEL K
SPACER(6.4X9X16)
0918006136
€ 4.00
10-2
0918006062
ref: 10-2
MODEL L/M/N
SPACER (6.4X9X13.5)
0918006062
€ 2.00
11
0154706167
ref: 11
BOLT
0154706167
€ 2.00
12-1
0916006027
ref: 12-1
MODEL K
WASHER (6.5X20X1.2)
0916006027
€ 2.00
12-2
0916006027
ref: 12-2
MODEL L/M/N
WASHER (6.5X20X1.2)
0916006027
€ 2.00
13-1
0913906057
ref: 13-1
MODEL K
SCREW(6X25)
0913906057
€ 2.50
13-2
0154706257
ref: 13-2
MODEL L/M/N
BOLT
0154706257
€ 2.50
14-1
0916008065
ref: 14-1
MODEL K
WASHER
€ 1.50
14-2
0916008053
ref: 14-2
MODEL L/M/N
WASHER (8.5X19X2.3)
0916008053
€ 2.00
15
1477128C01
ref: 15
CONNECTOR,MUFFLER
1477128C01
€ 52.50
16
0154706207
ref: 16
BOLT
0154706207
€ 2.50
17
0916006030
ref: 17
WASHER (6.5X29X1.6)
0916006030
€ 2.50
18
0918006210
ref: 18
SPACER (6.8X10X9)
€ 2.50
19
0932010041
ref: 19
CUSHION
0932010041
€ 4.50
20
0918008155
ref: 20
SPACER (8.1X11.5X13)
€ 5.00
21
0932011016
ref: 21
CUSHION
0932011016
€ 5.50
22
0110708307
ref: 22
BOLT
€ 2.50
23
0916008002
ref: 23
WASHER (8.5X29X1.6)
0916008002
€ 2.00
24
0831931087
ref: 24
NUT
0831931087
€ 2.50
25
1435128C20
ref: 25
MODEL M/N OPT
SILENCER,MUFFLER
1435128C20
€ 101.00
