ELECTRICAL

RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

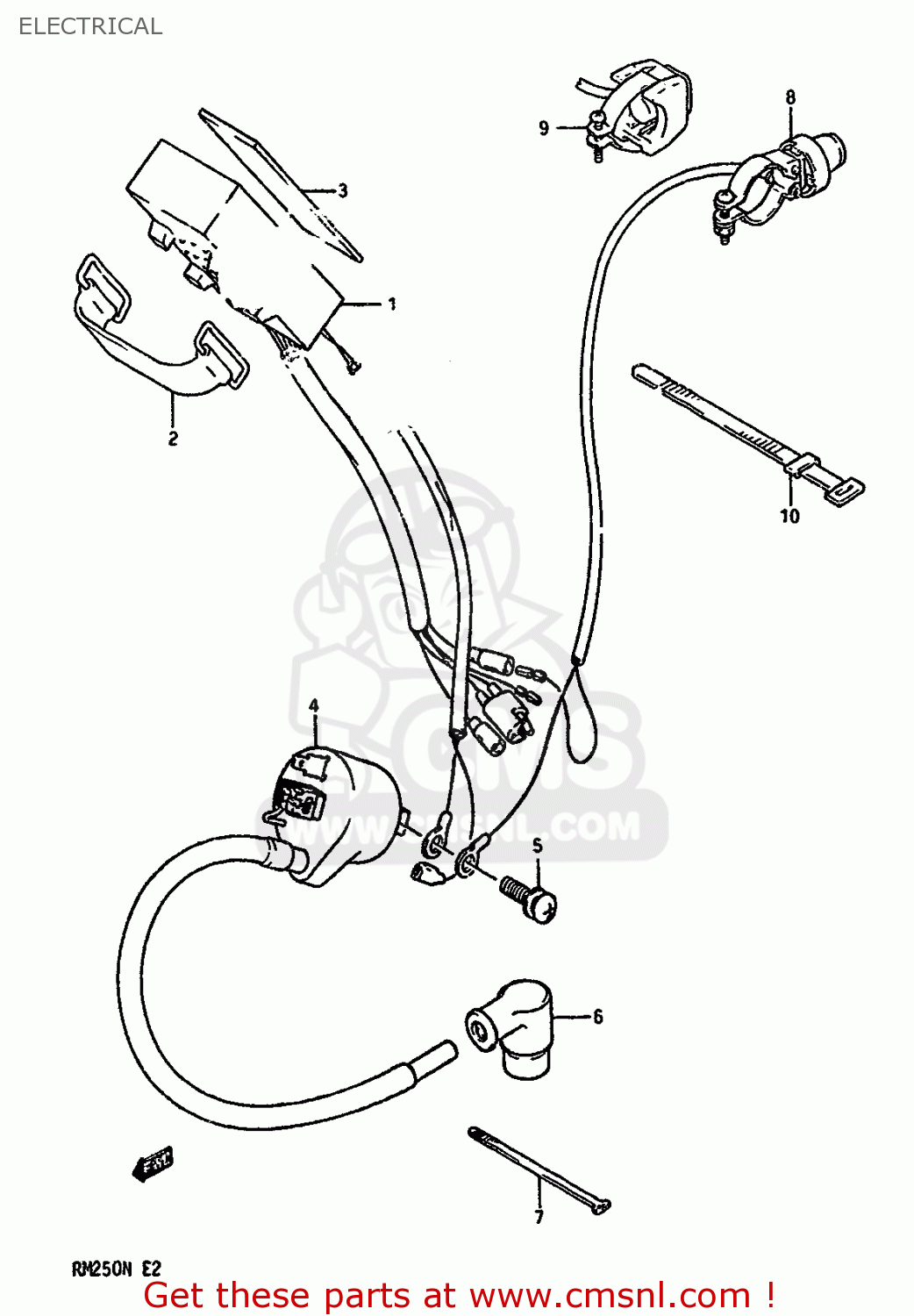

Electrical diagram RM250 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

3250028C00
ref: 1
MODEL K/L

C.D.I.UNIT

€ 0.00

1-2

3290028C20
ref: 1-2
MODEL M

CDI UNIT

€ 456.50

1-3

3290028C30
ref: 1-3
MODEL N

CDI UNIT

€ 457.50

2-1

0946200001A
ref: 2-1
MODEL L

BAND

€ 8.00

2-2

3294214111
ref: 2-2
MODEL M/N

BAND(L:65)

€ 8.00

3-1

3365137000
ref: 3-1
MODEL K/L/M CUT AS R

PROTECTOR(170X95X3.0)

€ 5.00

3-2

3365137000
ref: 3-2
MODEL N CUT AS REQUI

PROTECTOR(170X95X3.0)

€ 5.00

3341026C01
ref: 4

COIL ASSEMBLY,IGNITION

€ 123.00

0211236206
ref: 5

SCREW

€ 2.00

3351041111
ref: 6

CAP,SPARK PLUG

€ 23.00

0940709402
ref: 7

CLAMP

€ 3.00

3782000B00
ref: 8
MODEL K

SWITCH ASSEMBLY

€ 24.50

3782027C00
ref: 9
MODEL L/M/N

SWITCH ASSEMBLY

€ 24.50

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

ELECTRICAL

all assemblies
