FRAME-SEAT (MODEL R/S)

RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

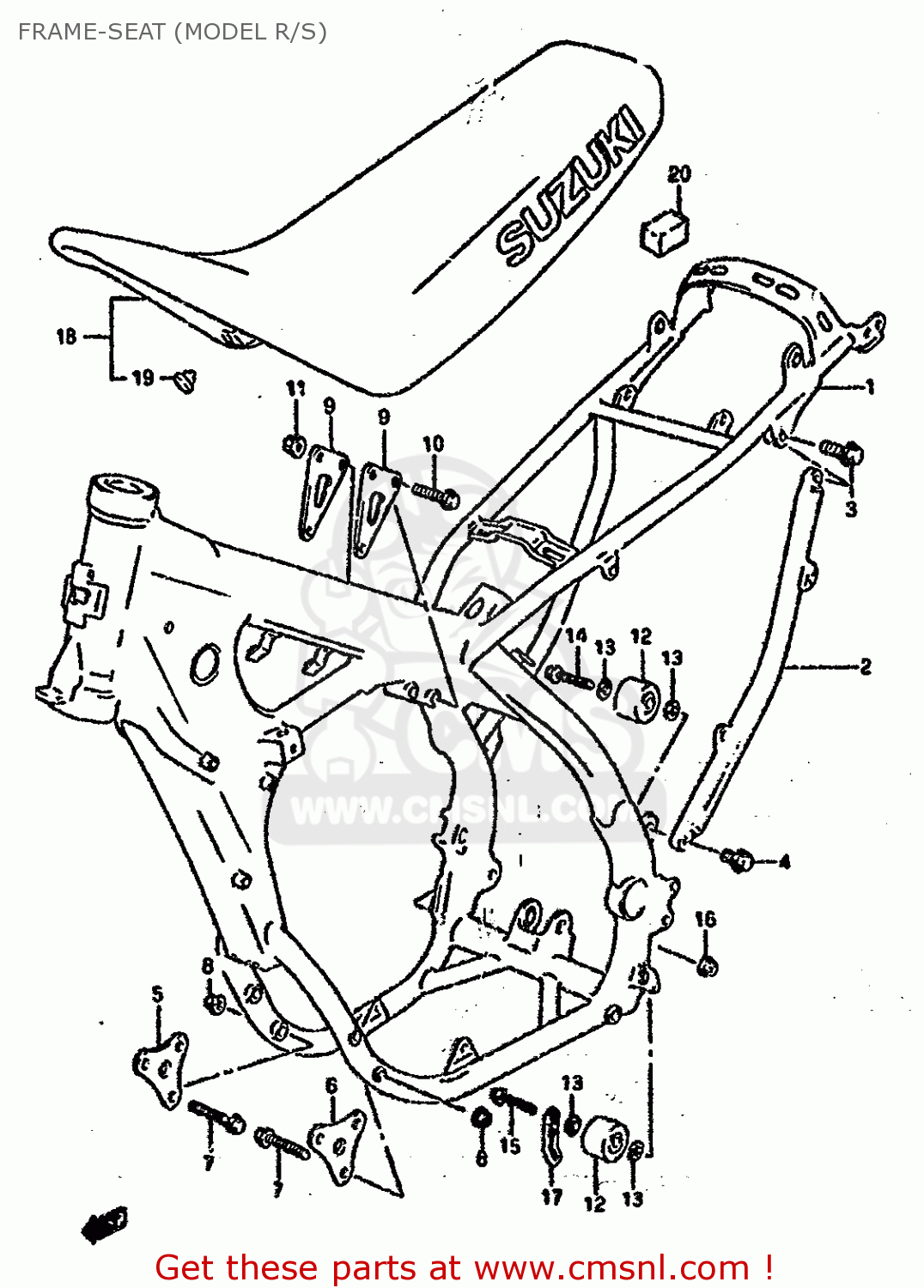

Frame-seat (model r/s) diagram RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4110028E1024K
ref: 1-1
MODEL R

FRAME

€ 1,692.50

1-2

4110028E2024K
ref: 1-2
MODEL S

FRAME COMP

€ 1,692.50

4167028E01
ref: 2

TUBE,FRAME SIDE,L

€ 148.50

0156008203
ref: 3

BOLT

€ 2.50

0156008163
ref: 4

BOLT, LOWER

€ 1.50

4199128E10
ref: 5

PLATE,ENG MTG FR

€ 27.00

6-1

4199228E10
ref: 6-1
MODEL R

PLATE,ENGINE MOUNTING

€ 25.50

6-2

4199228E11
ref: 6-2
MODEL S

PLATE,ENGINE MOUNT FR,L

€ 25.50

0910308170
ref: 7

BOLT

€ 3.50

0915908034
ref: 8

NUT

€ 2.00

4199328E10
ref: 9

PLATE,ENG MTG UPR

€ 22.50

0910308043
ref: 10

BOLT(8X45)

€ 4.50

0915908067
ref: 11

NUT

€ 5.50

4391027C11
ref: 12

ROLLER,CHAIN

€ 36.50

0821108121
ref: 13

WASHER

€ 2.00

0910308083
ref: 14

BOLT(8X41)

€ 3.50

0910308043
ref: 15

BOLT(8X45)

€ 4.50

0831931087
ref: 16

NUT

€ 2.50

0940408405
ref: 17

CLAMP

€ 3.50

18-1

4510028E10A5K
ref: 18-1
MODEL R

SEAT ASSEMBLY

€ 334.50

18-2

4510028E12A5K
ref: 18-2
MODEL S

SEAT ASSEMBLY

€ 334.50

0932910001
ref: 19

CUSHION

€ 2.50

4529928E00
ref: 20

CUSHION,SEAT

€ 2.50

FRAME-SEAT (MODEL R/S)

all assemblies
