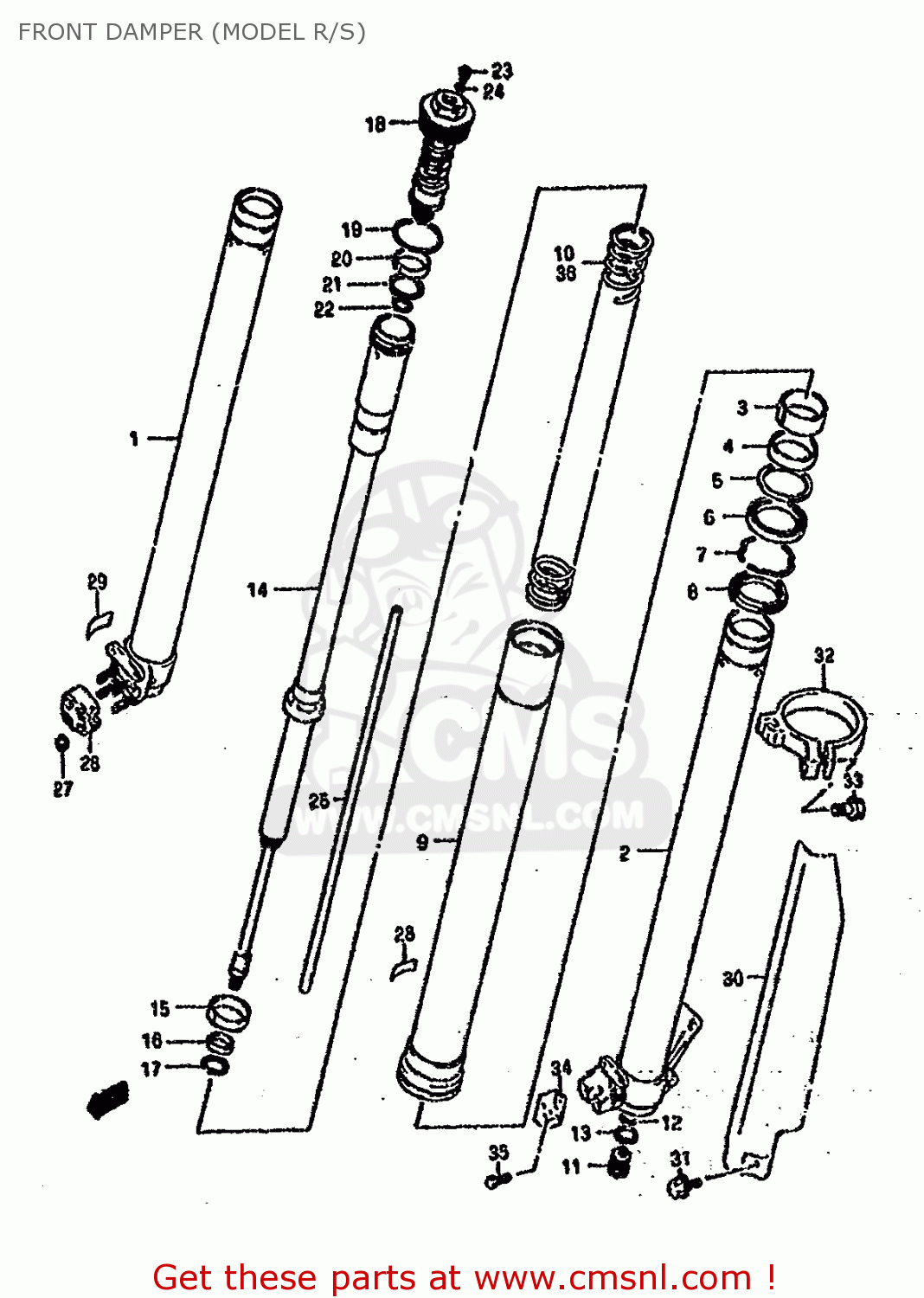

FRONT DAMPER (MODEL R/S)

ref

part #

description

quantity

0

5110328E30
ref: 0
MODEL R

DAMPER ASSEMBLY,RIGHT

€ 1,551.00

0

5110328E50
ref: 0
MODEL S

DAMPER ASSEMBLY,RIGHT

€ 1,574.00

0

5110428E30
ref: 0
MODEL R

DAMPER ASSEMBLY,LEFT

€ 1,549.50

0

5110428E50
ref: 0
MODEL S

DAMPER ASSEMBLY,LEFT

€ 1,574.00

1-1

5111028E30
ref: 1-1
MODEL R

TUBE,INNER,RIGHT

€ 780.50

1-2

5111028E40
ref: 1-2
MODEL S

TUBE,INNER,RIGHT

€ 367.00

2-1

5112028E30
ref: 2-1
MODEL R

TUBE,INNER,LEFT

€ 401.50

2-2

5112028E40
ref: 2-2
MODEL S

TUBE,INNER,LEFT

€ 373.50

3

5112127C40
ref: 3

BUSH,SLIDE

€ 13.50

4-1

5116728E30
ref: 4-1
MODEL R

BUSH,GUIDE

€ 20.50

4-2

5116728E40
ref: 4-2
MODEL S

BUSH,GUIDE

€ 20.00

5

5115827C40
ref: 5

SPACER,SEAL

€ 6.00

6

5115328E30
ref: 6

SEAL,OIL

€ 19.00

7

5115627C40
ref: 7

RING,OIL SEAL STOPPER

€ 3.50

8-1

5117328E30
ref: 8-1
MODEL R

SEAL,DUST

€ 22.00

8-2

5117328E40
ref: 8-2
MODEL S

SEAL,DUST

€ 22.00

9-1

5113028E30
ref: 9-1
MODEL R

TUBE,OUTER

€ 591.50

9-2

5113028E40
ref: 9-2
MODEL S

TUBE,OUTER

€ 591.50

10-1

5117128E30
ref: 10-1
MODEL R

SPRING,MAIN

€ 66.50

10-2

5117128E40
ref: 10-2
MODEL S

SPRING,MAIN

€ 66.50

11

5117028E30
ref: 11

BOLT,CTR

€ 145.00

12

5114814D00
ref: 12

GASKET (NAS)

€ 5.50

13

5117728E30
ref: 13

O RING,CTR BOLT

€ 2.50

14-1

5119028E30
ref: 14-1
MODEL R

DAMPER,CARTRIDGE

€ 634.50

14-2

5119028E50
ref: 14-2
MODEL S

DAMPER,CARTRIDGE

€ 472.50

15

5112228E30
ref: 15

BUSH,DAMPER SLIDE

€ 21.00

16-1

5115728E30
ref: 16-1
MODEL R

VALVE,OIL LOCK

€ 18.00

16-2

5115728E50
ref: 16-2
MODEL S

VALVE,OIL LOCK

€ 14.00

17

5115428E30
ref: 17

RING,VALVE STOPPER

€ 4.50

18-1

5135128E30
ref: 18-1
MODEL R

BOLT,FORK

€ 235.50

18-2

5135128E50
ref: 18-2
MODEL S

BOLT,FORK

€ 191.00

19

5111727C40
ref: 19

O RING

€ 3.50

20

5112328E30
ref: 20

BUSH,FORK BOLT SLIDE

€ 9.50

21

5117428E30
ref: 21

O-RING,FORK BOLT,CENTER

€ 5.00

22

5117528E30
ref: 22

O-RING,FORK BOLT,LOWER

€ 3.00

23

5135728E30
ref: 23

BOLT,PLUG

€ 8.00

24

5135828E30
ref: 24

O RING,PLUG

€ 2.50

25

5119128E30
ref: 25

ROD,PUSH

€ 12.00

26

5113227C40
ref: 26

HOLDER,AXLE,R

€ 34.00

27

0831931D67
ref: 27

NUT

€ 0.00

28

5114528E30
ref: 28

LABEL

€ 0.00

29

5114928E30
ref: 29

LABEL

€ 2.50

30-1

5150129E10
ref: 30-1
MODEL R

PROTECTOR ,RH.

€ 80.00

30-2

5150129E00
ref: 30-2
MODEL S

PROTECTOR,FORK,R

€ 80.00

30-3

5151129E00
ref: 30-3

PROTECTOR,FORK,L

€ 87.00

31

0150006107
ref: 31

BOLT

€ 2.00

32-1

5121043D00
ref: 32-1
MODEL R

GUIDE,FORK PROTECTOR

€ 46.50

32-2

5121028E00
ref: 32-2
MODEL S

GUIDE,FORK PROTECTOR

€ 42.00

33-1

5862843D00
ref: 33-1
MODEL R

BOLT,PROTECTOR GUIDE,6

€ 2.50

33-2

0150006207
ref: 33-2
MODEL S

BOLT

€ 2.00

34

5924827C40
ref: 34

GUIDE,HOSE,L

€ 14.00

35

0150005087
ref: 35

BOLT

€ 2.00

36

5117128E40
ref: 36
OPT

SPRING,MAIN

€ 66.50

all assemblies
