REAR WHEEL

RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

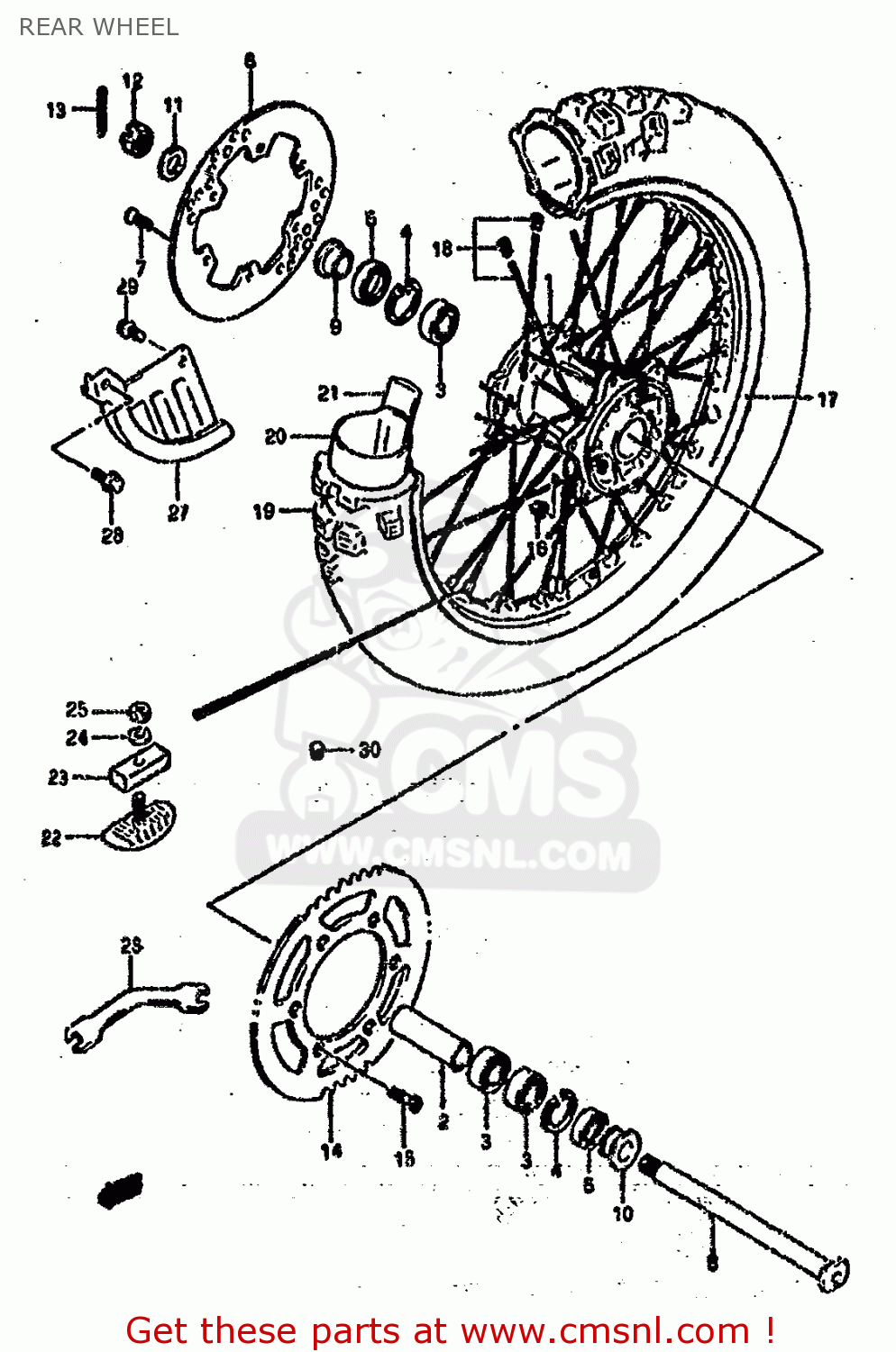

Rear wheel diagram RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

REAR WHEEL RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
REAR WHEEL RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
REAR WHEEL RM250 1994 (R) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
6411143D00
ref: 1
HUB,RR WHEEL
6411143D00
€ 285.00
2
6473143D00
ref: 2
SPACER,RR HUB BEARING
6473143D00
€ 47.50
3
0813360047
ref: 3
BEARING
0813360047
€ 21.00
4
0833141426
ref: 4
CIRCLIP
0833141426
€ 1.50
5-1
0928226D01
ref: 5-1
MODEL P/R
SEAL,DUST
€ 0.00
5-2
6484128E00
ref: 5-2
MODEL S
SEAL(29X42X6)
6484128E00
€ 8.50
6
6921143D00
ref: 6
DISC,RR BRAKE
6921143D00
€ 160.00
7
5942129E00
ref: 7
SCREW,BRAKE DISC
5942129E00
€ 4.50
8
6471128E00
ref: 8
AXLE,RR
6471128E00
€ 62.50
9-1
6474143D00
ref: 9-1
MODEL P/R
SPACER,RR AXLE,R
6474143D00
€ 16.50
9-2
6474128E10
ref: 9-2
MODEL S
SPACER,RR AXLE,R
6474128E10
€ 19.50
10-1
6475128E00
ref: 10-1
MODEL P/R
SPACER,RR AXLE,L
6475128E00
€ 39.50
10-2
6475128E20
ref: 10-2
MODEL S
SPACER,RR AXLE
6475128E20
€ 13.00
11
0916019022
ref: 11
WASHER(19X32X3.2)
0916019022
€ 5.00
12-1
0831441188
ref: 12-1
MODEL P
NUT 18MM
€ 6.00
12-2
0831440183
ref: 12-2
MODEL R/S
NUT
0831440183
€ 4.50
13
0411140308
ref: 13
PIN,COTTER
0411140308
€ 1.50
14-1
6451140281
ref: 14-1
MODEL P/R
SPROCKET,REAR
€ 99.00
14-2
6451128E00
ref: 14-2
MODEL S
SPROCKET,RR(NT:49)
€ 99.00
14-3
6451140285
ref: 14-3
OPT ALUMINIUM-64511-
SPROCKET,REAR
6451140285
€ 195.00
14-4
6451114D60
ref: 14-4
OPT ALUMINIUM
SPROCKET,RR(NT:48)
€ 195.00
14-5
6451140271
ref: 14-5
OPT ALUMINIUM-64511-
SPROCKET,REAR
€ 99.00
14-6
6451115D20
ref: 14-6
OPT ALUMINIUM
SPROCKET,REAR (NT:50)
€ 99.00
14-7
6451140261
ref: 14-7
OPT ALUMINIUM
SPROCKET,RR(NT:51 AL)
6451140261
€ 87.50
14-8
6451100B01
ref: 14-8
OPT STEEL
SPROCKET,RR(NT:49)
6451100B01
€ 99.00
14-9
6451100B12
ref: 14-9
OPT STEEL
SPROCKET,RR(NT:50)
6451100B12
€ 86.00
14-10
6451100B21
ref: 14-10
OPT STEEL
SPROCKET,RR(NT:51)
6451100B21
€ 66.00
15
0912008010
ref: 15
BOLT(8X30.5)
0912008010
€ 2.50
16
0915908067
ref: 16
NUT
0915908067
€ 5.50
17
6531128C10
ref: 17
RIM,RR WHEEL(2.15X19 AL)
€ 274.00
18
6532028C10
ref: 18
SPOKE SET,RR WHEEL
6532028C10
€ 97.00
19-1
6511028E00
ref: 19-1
E2
TIRE, REAR (110/90-19) (DUNLOP)
€ 265.00
19-2
6511028C50
ref: 19-2
E4-65110-28E10
TIRE,REAR (110/90-19) (BRIDGESTONE)
€ 0.00
19-3
6511028E10
ref: 19-3
E24,P37
TIRE
€ 0.00
20-1
6520028C10
ref: 20-1
E2
TUBE ASSY,WHEEL INNER
€ 41.00
20-2
6520028C20
ref: 20-2
E4,E24,P37
TUBE ASSY,WHEEL INNER
€ 41.00
21-1
6526128C10
ref: 21-1
E2
PROTECTOR
€ 5.50
21-2
6526128C20
ref: 21-2
E4,E24,P37
PROTECTOR,WHL INR TUBE
6526128C20
€ 5.50
22
6527028E00
ref: 22
STOPPER,BEAD(2.15)
6527028E00
€ 38.00
23
6527127C00
ref: 23
CUSHION,BEAD STOPPER
6527127C00
€ 5.50
24-1
0832211088
ref: 24-1
MODEL P
WASHER
0832211088
€ 2.00
24-2
0832201083
ref: 24-2
MODEL R/S
WASHER
0832201083
€ 1.50
25-1
0831012088
ref: 25-1
MODEL P
NUT
0831012088
€ 2.00
25-2
0831000083
ref: 25-2
MODEL R/S
NUT
0831000083
€ 1.50
26
0981300039
ref: 26
SPANNER,OPEN
€ 8.00
27
6923128C00
ref: 27
COVER,REAR DISC
6923128C00
€ 29.50
28-1
0151706207
ref: 28-1
MODEL P
BOLT 6X20
€ 2.50
28-2
0155006203
ref: 28-2
MODEL R/S
BOLT
0155006203
€ 2.50
29-1
0151706128
ref: 29-1
MODEL P
BOLT
€ 2.50
29-2
0155006123
ref: 29-2
MODEL R/S
BOLT
0155006123
€ 2.50
30
0925008013
ref: 30
CAP(OD:12)
0925008013
€ 2.00
