RM250 1997 (V) (E02 E04 E24)

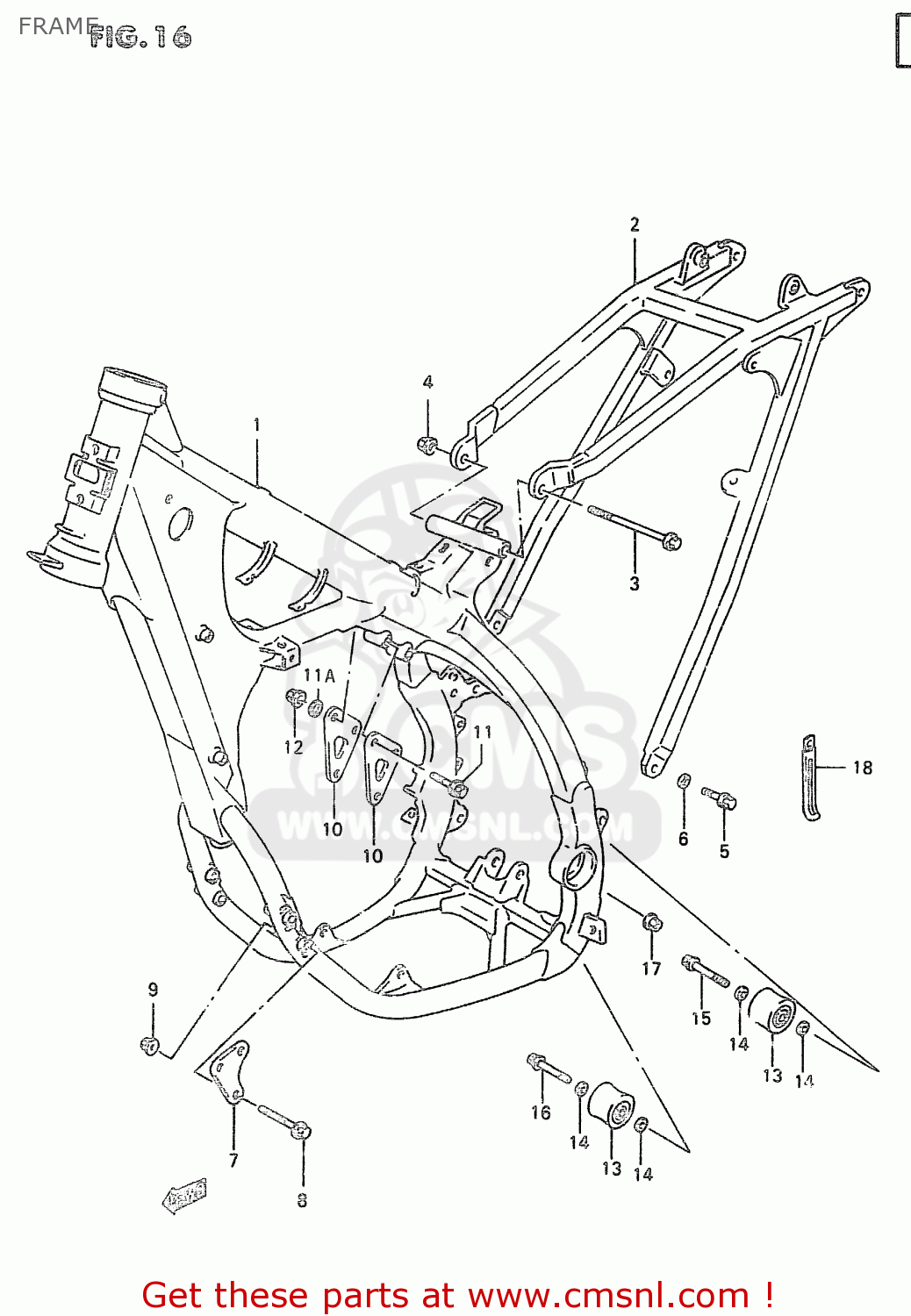

Frame diagram RM250 1997 (V) (E02 E04 E24)
FRAME RM250 1997 (V) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110037E0024K
ref: 1-1
MODEL T
FRAME COMP
€ 1,444.50
1-2
4110037E1024K
ref: 1-2
MODEL V
FRAME(CHARCOAL)
€ 1,056.50
1-3
4110037E2024K
ref: 1-3
MODEL W
FRAME COMP
€ 1,176.00
2
4120036E00
ref: 2
RAIL,SEAT
€ 580.50
3
0910308109
ref: 3
BOLT(8X120)
€ 3.50
4
0915908034
ref: 4
NUT
€ 2.00
5
0910408019
ref: 5
BOLT 8X16
€ 2.00
6
0832201087
ref: 6
WASHER
€ 2.00
7
4199137E00
ref: 7
PLATE,ENGINE MOUNTING
€ 28.00
8
0910308170
ref: 8
BOLT
€ 3.50
9
0915908034
ref: 9
NUT
€ 2.00
10
4199337E00
ref: 10
PLATE,ENG MTG UPR
€ 20.00
11
0910308043
ref: 11
BOLT(8X45)
€ 4.50
11A
0832201083
ref: 11A
WASHER
€ 1.50
12
0915908067
ref: 12
NUT
€ 5.50
13
4391027C11
ref: 13
ROLLER,CHAIN
€ 36.50
14-1
0821108121
ref: 14-1
MODEL T
WASHER
€ 2.00
14-2
0918108111
ref: 14-2
MODEL V/W
SHIM(8X12X1)
€ 2.00
15
0910308083
ref: 15
BOLT(8X41)
€ 3.50
16
0910308043
ref: 16
BOLT(8X45)
€ 4.50
17
0831931087
ref: 17
NUT
€ 2.50
18-1
0940408418
ref: 18-1
MODEL T/V
CLAMP(L:65)
€ 3.50
18-2
0940408206
ref: 18-2
MODEL W
CLAMP(L:65 T:0.8)
€ 3.50
