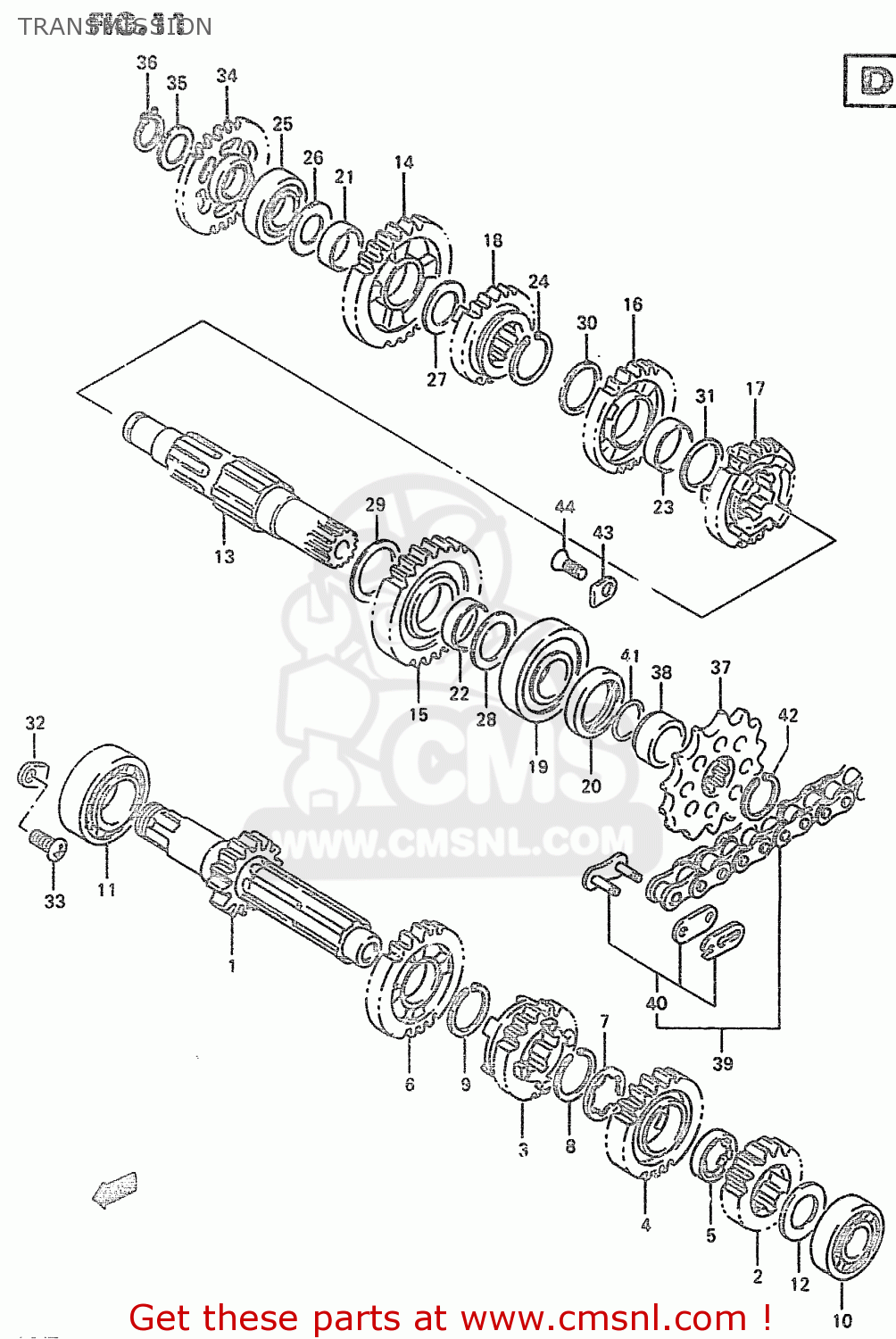

TRANSMISSION

ref

part #

description

quantity

1

2412037E00
ref: 1

SHAFT,COUNTER(NT:15)

€ 130.00

2

2422137E00
ref: 2

GEAR,SECOND DRIVE (NT:17)

€ 80.50

3

2423137E00
ref: 3

GEAR,THIRD DRIVE (NT:19)

€ 97.00

4

2424137E00
ref: 4

GEAR,FOURTH DRIVE (NT:21)

€ 85.50

5

2424237E00
ref: 5

BUSH,4TH DRIVE GEAR

€ 21.00

6

2425137E00
ref: 6

GEAR,5TH DRIVE(NT:23)

€ 86.50

7

0916725012
ref: 7

WASHER,LOCK

€ 3.50

8

0938025010
ref: 8

CIRCLIP

€ 3.00

9

0938025010
ref: 9

CIRCLIP

€ 3.00

10

0814362037
ref: 10

BEARING

€ 18.50

11

0814362057
ref: 11

BEARING

€ 24.50

12-1

0821117301
ref: 12-1
MODEL T

WASHER,THRUST

€ 3.00

12-2

0918117223
ref: 12-2
MODEL V/W

SHIM(17X30X1)

€ 3.00

13

2413128C03
ref: 13

SHAFT,DRIVE

€ 189.00

14

2431137E00
ref: 14

GEAR,1ST DRIVEN(NT:27)

€ 95.00

15

2432137E01
ref: 15
<-24321-37E00

GEAR,SECOND DRIVEN (NT:25)

€ 90.50

16

2433137E00
ref: 16

GEAR,THIRD DRIVEN (NT:23)

€ 90.50

17-1

2434137E01
ref: 17-1
MODEL T/V, <-24341-3

GEAR,4TH DRIVEN(NT:21)

€ 95.50

17-2

2434137E10
ref: 17-2
MODEL W

GEAR,FOURTH DRIVEN (NT:21)

€ 78.50

18

2435137E00
ref: 18

GEAR,5TH DRIVEN(NT:20)

€ 89.50

19-1

0926222023
ref: 19-1
MODEL T

BEARING(22X56X15)

€ 40.50

19-2

0926222030
ref: 19-2
MODEL V/W

BEARING(22X56X15)

€ 81.00

20

0928328020
ref: 20

SEAL,OIL(28X38X6)

€ 11.50

21

0930020037
ref: 21

BUSH(20X24X10)

€ 12.50

22

0930025031
ref: 22

BUSH(25X28X10)

€ 16.00

23

0930025031
ref: 23

BUSH(25X28X10)

€ 16.00

24

0938025010
ref: 24

CIRCLIP

€ 3.00

25

0926217023
ref: 25

BEARING(17X40X12)

€ 14.00

26-1

0821117301
ref: 26-1
MODEL T

WASHER,THRUST

€ 3.00

26-2

0918117223
ref: 26-2
MODEL V/W

SHIM(17X30X1)

€ 3.00

27-1

0821120301
ref: 27-1
MODEL T

WASHER

€ 3.00

27-2

0918120195
ref: 27-2
MODEL V/W

SHIM(20X30X1)

€ 3.00

28-1

0821122342
ref: 28-1
MODEL T

WASHER

€ 4.50

28-2

0918122240
ref: 28-2
MODEL V/W

SHIM(22X34X1.5)

€ 4.50

29-1

0821125341
ref: 29-1
MODEL T

WASHER

€ 3.50

29-2

0918125167
ref: 29-2
MODEL V/W

SHIM(25X34X1)

€ 3.50

30-1

0821125341
ref: 30-1
MODEL T

WASHER

€ 3.50

30-2

0918125167
ref: 30-2
MODEL V/W

SHIM(25X34X1)

€ 3.50

31

0822125305
ref: 31

SHIM

€ 2.00

32

2474121A00
ref: 32

RETAINER

€ 2.00

33

0211206123
ref: 33

SCREW

€ 1.50

34-1

2626037E00
ref: 34-1
MODEL T

GEAR,KICK STARTER IDLE

€ 70.50

34-2

2626037E01
ref: 34-2
MODEL V/W

GEAR,KICK STARTER IDLE(NT:27)

€ 70.50

35-1

0822117245
ref: 35-1
MODEL T

SHIM

€ 3.00

35-2

0918117130
ref: 35-2
MODEL V/W

SHIM(17X24X0.5)

€ 3.00

36

0833131176
ref: 36

CIRCLIP,17MM

€ 2.00

37-1

2751115D00
ref: 37-1

SPROCKET,ENGINE (NT:13)

€ 23.50

37-2

2751147D00
ref: 37-2
OPT

SPROCKET(NT:14)

€ 23.00

38

2753128C00
ref: 38

SPACER,ENGINE SPROCKET

€ 10.50

39

2760043D00114
ref: 39

CHAIN ASSEMBLY DID520DM.11

€ 72.50

40

2762043D00
ref: 40

JOINT SET,CHAIN

€ 5.00

41

0928021010
ref: 41

O RING(D:1.9,ID:21.8)

€ 2.50

42

0938022006
ref: 42

CIRCLIP

€ 3.00

43

2474120A00
ref: 43

RETAINER,COUNTER BEARING,R

€ 2.00

44

0212206123
ref: 44

SCREW

€ 3.00
