SHOCK ABSORBER (MODEL W)
RM250 1997 (V) (E02 E04 E24)

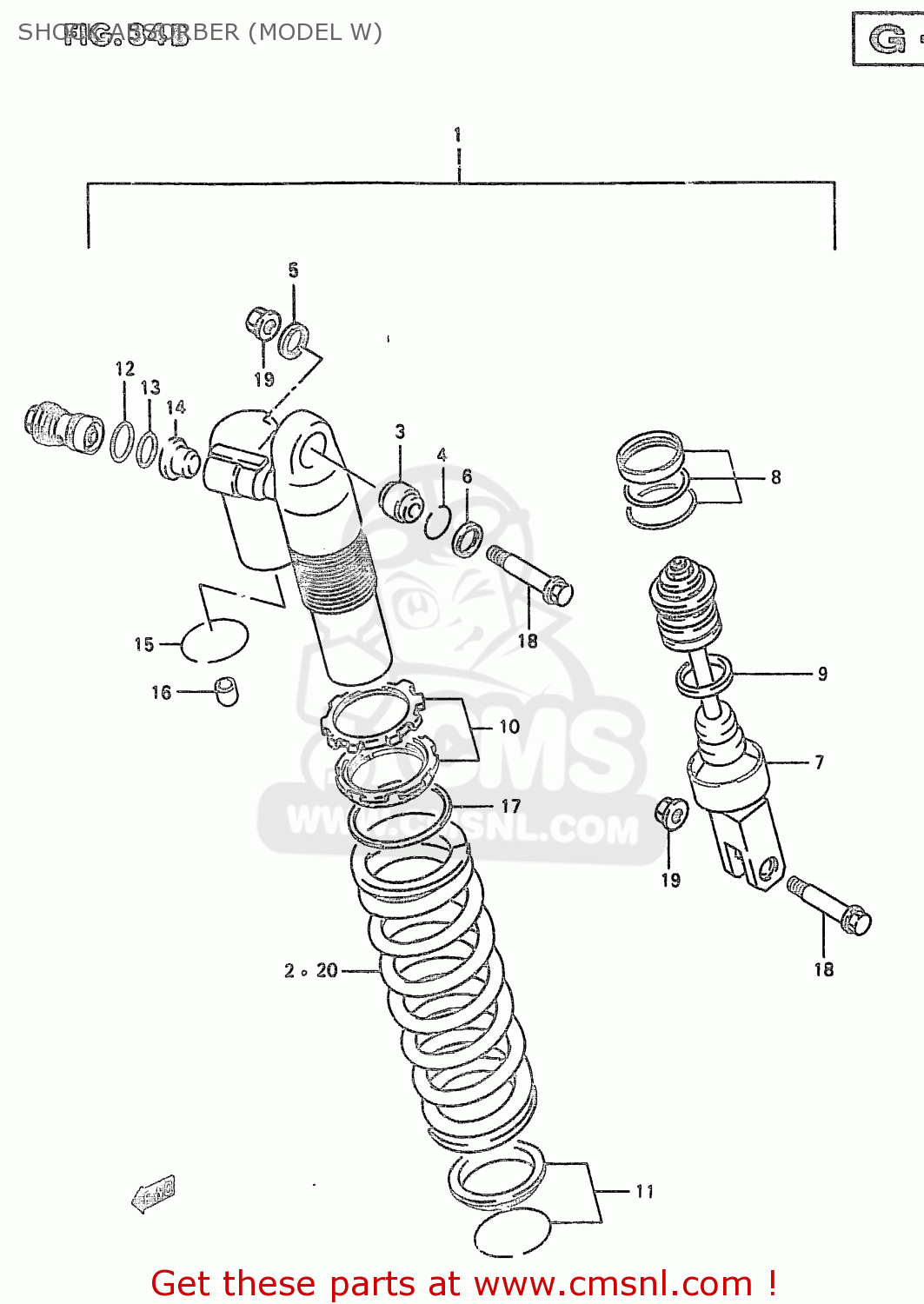

Shock absorber (model w) diagram RM250 1997 (V) (E02 E04 E24)
SHOCK ABSORBER (MODEL W) RM250 1997 (V) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
6210037E70Y5H
ref: 1
ABSORBER ASSY, REAR SHOCK (BLUE)
€ 1,142.50
2
6221136E30
ref: 2
SPRING,REAR (K=4.9)
€ 243.00
3
6217536E00
ref: 3
BEARING,RR SHOCK ABSORBER
€ 55.50
4
6227727C40
ref: 4
RING,STOPPER
€ 2.00
5
6222636E00
ref: 5
SEAL,DUST UPR,R
€ 5.00
6
6222636E10
ref: 6
SEAL,DUST UPR,L
€ 5.00
7
6212037E60
ref: 7
ROD,PISTON
€ 682.00
8
6215036E50
ref: 8
O RING SET
€ 33.50
9
6227936E50
ref: 9
RING,STOPPER
€ 6.00
10
6219036E50
ref: 10
ADJUSTER SET
€ 77.00
11
6222036E50
ref: 11
SPRING SEAT SET
€ 39.00
12
6213128E00
ref: 12
O RING
€ 3.50
13
5117443D00
ref: 13
O RING,CTR BOLT UPR
€ 3.00
14
6222736E00
ref: 14
COLLAR,ORIFICE
€ 12.00
15
6227836E00
ref: 15
RING,STOPPER
€ 6.00
16
5129420400
ref: 16
CAP
€ 3.50
17
6219536E50
ref: 17
SEAT,SPRING
€ 13.00
18
0910310149
ref: 18
BOLT(10X47.5)
€ 3.50
19
0915910058
ref: 19
NUT
€ 4.00
20-1
6221136E20
ref: 20-1
OPT
SPRING,REAR (K=4.7)
€ 193.00
20-2
6221136E40
ref: 20-2
OPT
SPRING,REAR (K=5.1)
€ 0.00
