CLUTCH (MODEL K3/K4/K5)
RM250Z 2002 (K2) USA (E03)

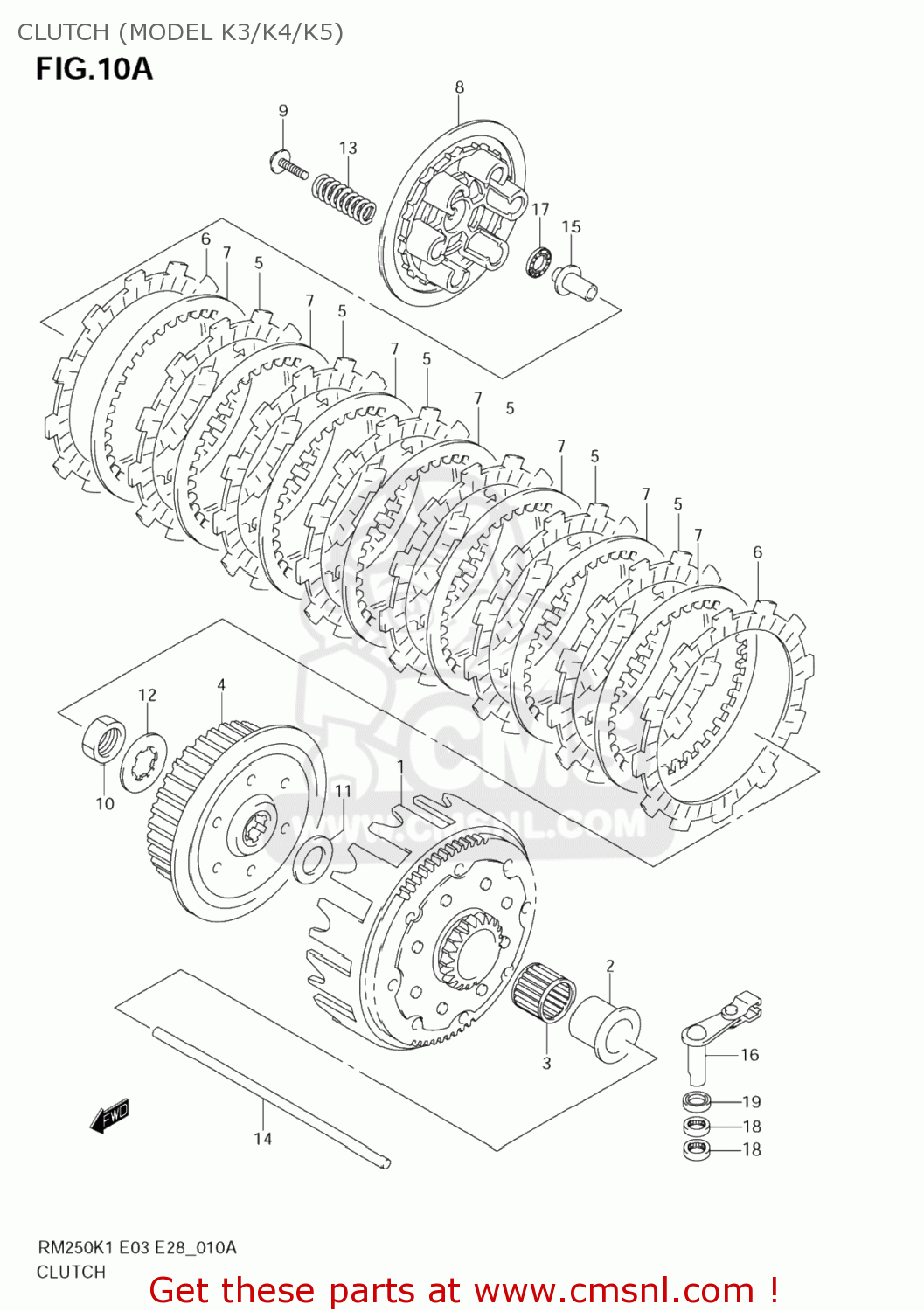

Clutch (model k3/k4/k5) diagram RM250Z 2002 (K2) USA (E03)
CLUTCH (MODEL K3/K4/K5) RM250Z 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120037E03
ref: 1
21200-37F10
GEAR ASSY,PRIM
€ 349.50
2
2125137E00
ref: 2
21251-37E01
SPACER,PRIMARY DRIVEN
€ 37.00
3
0926329009
ref: 3
BEARING(29X34X27)
€ 25.00
4-1
2141037E11
ref: 4-1
21410-37810
HUB,CLUTCH SLE
€ 70.50
4-2
2141037E20
ref: 4-2
HUB,CLUTCH SLEEVE
€ 81.50
4-3
2141037F40
ref: 4-3
HUB,CLUTCH SLEEVE
€ 89.00
5
2144137F20
ref: 5
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 16.00
6
2144137F30
ref: 6
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 11.50
7
2145137F00
ref: 7
PLATE,CLUTCH DRIVEN (NAS)
€ 7.00
8
2146237F20
ref: 8
DISC,CLUTCH PRESSURE
€ 53.00
9
0911605019
ref: 9
BOLT(5X25)
€ 3.00
10
0914018013
ref: 10
NUT
€ 9.00
11-1
0916022067
ref: 11-1
WASHER(22X38X2)
€ 10.50
11-2
0916022080
ref: 11-2
WASHER(22X38X3)
€ 7.00
12-1
0916722021
ref: 12-1
WASHER,LOCK
€ 2.00
12-2
0916722026
ref: 12-2
WASHER,LOCK
€ 2.50
13
0944018036
ref: 13
SPRING
€ 7.50
14
2311037F00
ref: 14
ROD,CLUTCH PUSH
€ 12.00
15
2312137F00
ref: 15
PIECE,CLUTCH PUSH
€ 13.00
16
2320037E02
ref: 16
CAMSHAFT,CLUTCH RELEASE
€ 51.00
17
0926310002
ref: 17
BEARING(10X22X2.8)
€ 8.50
18
0926312024
ref: 18
BEARING(12X16X10)
€ 11.00
19
0928512004
ref: 19
SEAL,OIL(12X19X5)
€ 9.00
