CRANKCASE COVER-WATER PUMP (MODEL K3/K4/K5/K6)

RM250Z 2002 (K2) USA (E03)

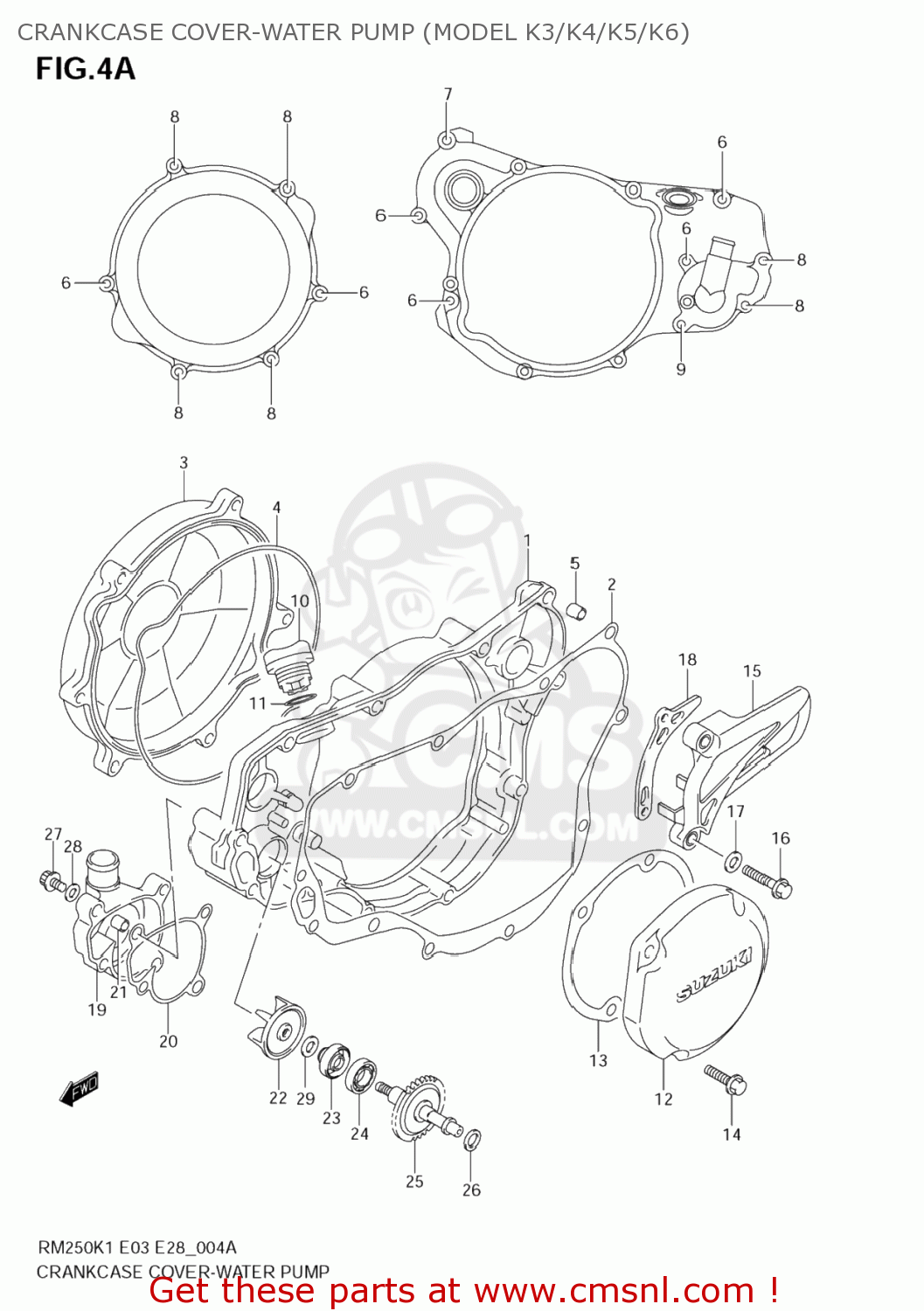

Crankcase cover-water pump (model k3/k4/k5/k6) diagram RM250Z 2002 (K2) USA (E03)

CRANKCASE COVER-WATER PUMP (MODEL K3/K4/K5/K6) RM250Z 2002 (K2) USA (E03)

CRANKCASE COVER-WATER PUMP (MODEL K3/K4/K5/K6) RM250Z 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134137F20
ref: 1

COVER,CLUTCH

€ 147.50

2

1148237F01
ref: 2

GASKET,COVER (NAS)

€ 12.50

3

1137137F01
ref: 3

COVER,CLUTCH OUTER

€ 134.00

4

1148437E00
ref: 4

O RING,CL COVER OUTER

€ 16.50

5

0421109109
ref: 5

PIN

€ 2.00

6

0910306250
ref: 6

BOLT(6X25)

€ 2.50

7

0910306251
ref: 7

BOLT(6X30)

€ 2.50

8

0910306253
ref: 8

BOLT(6X60)

€ 3.00

9

0910306245
ref: 9

BOLT(6X65)

€ 3.00

10-1

1197112C51
ref: 10-1

PLUG,OIL FILLER

€ 7.00

10-2

1197125D00
ref: 10-2

PLUG,ENGINE OIL FILLER

€ 5.50

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12

1135137F00
ref: 12

COVER,MAGNETO

€ 124.00

13

1148337E02
ref: 13

GASKET,MAGNETO COVER

€ 8.00

14

0910306235
ref: 14
01547-06207

BOLT,6X20

€ 2.50

15

1136036E00
ref: 15

COVER,ENGINE SPROCKET

€ 27.00

16

0910306251
ref: 16

BOLT(6X30)

€ 2.50

17

0832201063
ref: 17
08322-0106B

WASHER

€ 2.00

18

2764137E00
ref: 18

PLATE,FR CHAIN GUIDE

€ 7.00

19

1741137F10
ref: 19

CASE,WATER PUMP

€ 65.00

20

1743137F00
ref: 20

GASKET,WATER PUMP CASE (NAS)

€ 6.50

21

0421109109
ref: 21

PIN

€ 2.00

22

1749137F10
ref: 22

IMPELLER,WATER PUMP

€ 19.00

23

1746137F00
ref: 23

SEAL,WATER PUMP OIL

€ 5.00

24

0811369010
ref: 24

BEARING

€ 19.00

25

1751037F10
ref: 25

SHAFT,WATER PUMP

€ 57.50

26

0918108139
ref: 26

SHIM(8.8X14X1)

€ 1.50

27

0712006103
ref: 27
07120-0610B

BOLT

€ 2.00

28

0916806004
ref: 28

GASKET(6.2X11X1).2 (NAS)

€ 1.50

29

0821106121
ref: 29

WASHER

€ 2.00
