EXHAUST VALVE (MODEL K3/K4/K5/K6)

RM250Z 2002 (K2) USA (E03)

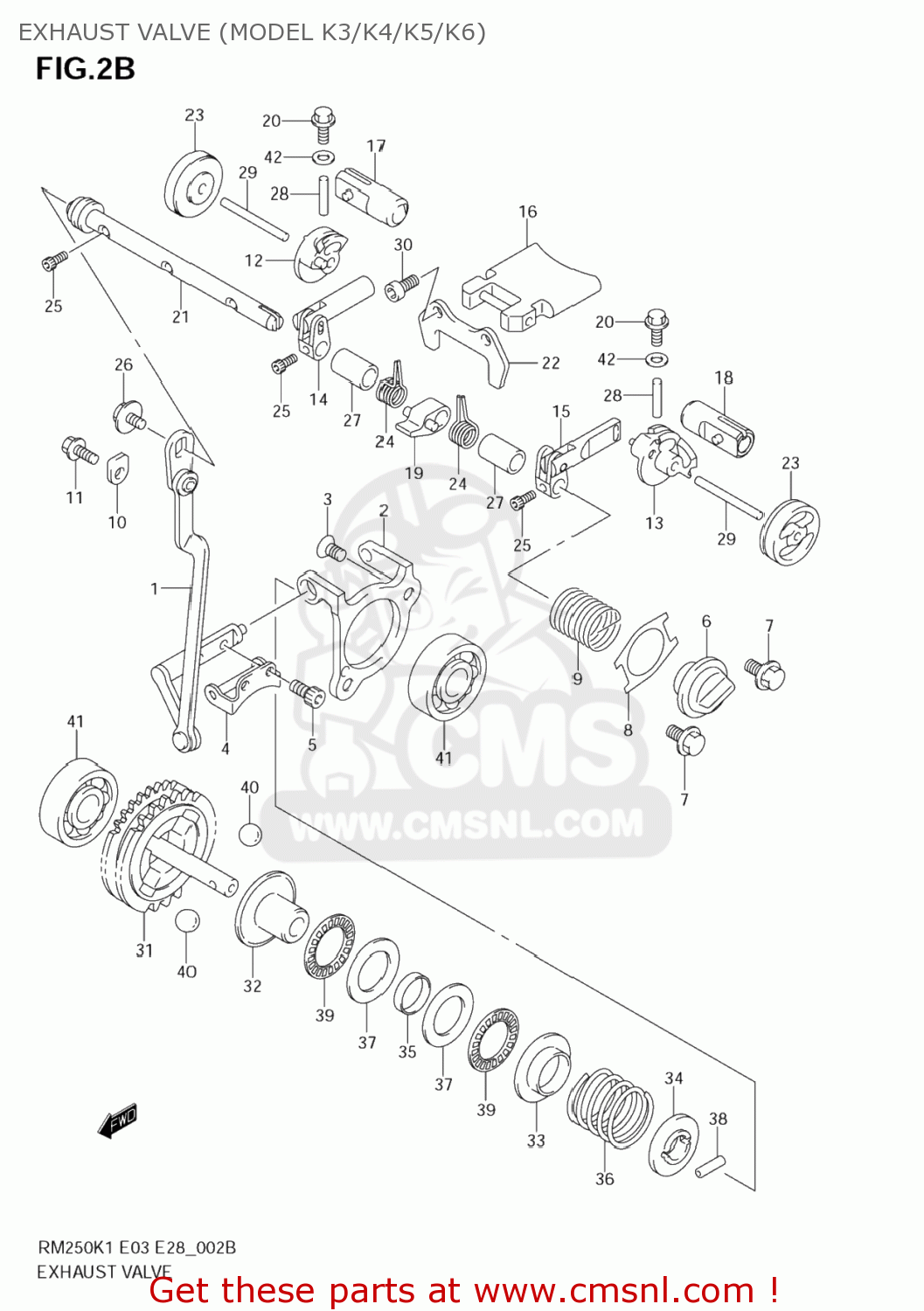

Exhaust valve (model k3/k4/k5/k6) diagram RM250Z 2002 (K2) USA (E03)

EXHAUST VALVE (MODEL K3/K4/K5/K6) RM250Z 2002 (K2) USA (E03)

EXHAUST VALVE (MODEL K3/K4/K5/K6) RM250Z 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1268937F21
ref: 1-1

ACTUATOR,EXHAUST VALVE

€ 36.00

1-2

1268937F40
ref: 1-2

ACTUATOR,EXHAUST VALVE

€ 28.00

1-3

1268937F50
ref: 1-3

ACTUATOR ASSY,EXHAUST VALVE

€ 47.50

2

1268103B00
ref: 2

BASE,ACTUATOR

€ 656.00

3

0912005003
ref: 3

SCREW(5X10)

€ 2.00

4

1268236F21
ref: 4

ARM,ACTUATOR

€ 6.50

5

0910604003
ref: 5

BOLT(4X8)

€ 2.50

6

1127437F20
ref: 6

CAP,EXHAUST VALVE SHAFT SPRING

€ 18.50

6

1127437F20
ref: 6

CAP,EXHAUST VALVE SHAFT SPRING

€ 18.50

7

0910305022
ref: 7

BOLT(5X10)

€ 1.50

8-1

1127937F20
ref: 8-1

GASKET,EXHAUST VLV SPRING CAP (NAS)

€ 2.50

8-1

1127937F20
ref: 8-1

GASKET,EXHAUST VLV SPRING CAP (NAS)

€ 2.50

8-2

1127937F30
ref: 8-2

GASKET,EXHAUST VLV SPRING CAP (NAS)

€ 3.50

9

1125737E10
ref: 9

SPRING,CYL COVER NO.2 SHAFT

€ 5.00

10

2474121A00
ref: 10

RETAINER

€ 2.50

10

2474121A00
ref: 10

RETAINER

€ 2.50

11

0910306256
ref: 11

BOLT(6X10)

€ 2.00

12-1

1120237F20
ref: 12-1

CAM COMP,EXH S

€ 72.50

12-1

1120237F20
ref: 12-1

CAM COMP,EXH S

€ 72.50

12-2

1120237F30
ref: 12-2

CAM,EXHAUST SIDE VALVE,R

€ 76.00

12-2

1120237F30
ref: 12-2

CAM,EXHAUST SIDE VALVE,R

€ 76.00

12-3

1120237F50
ref: 12-3

CAM,EXHAUST SIDE VALVE,R

€ 173.00

12-3

1120237F50
ref: 12-3

CAM,EXHAUST SIDE VALVE,R

€ 173.00

13-1

1120337F20
ref: 13-1

CAM COMP,EXH S

€ 72.50

13-1

1120337F20
ref: 13-1

CAM COMP,EXH S

€ 72.50

13-2

1120337F30
ref: 13-2

CAM,EXHAUST SIDE VALVE,L

€ 77.50

13-2

1120337F30
ref: 13-2

CAM,EXHAUST SIDE VALVE,L

€ 77.50

13-3

1120337F50
ref: 13-3

CAM,EXHAUST SIDE VALVE,L

€ 169.50

13-3

1120337F50
ref: 13-3

CAM,EXHAUST SIDE VALVE,L

€ 169.50

14-1

1120437F20
ref: 14-1

ROD ASSY,EXH SIDE VALVE CAM,R

€ 76.50

14-1

1120437F20
ref: 14-1

ROD ASSY,EXH SIDE VALVE CAM,R

€ 76.50

14-2

1120437F30
ref: 14-2

ROD ASSY,EXH SIDE VALVE CAM,R

€ 62.00

14-2

1120437F30
ref: 14-2

ROD ASSY,EXH SIDE VALVE CAM,R

€ 62.00

14-3

1120437F40
ref: 14-3

ROD ASSY,EXH SIDE VALVE CAM,R

€ 58.50

14-3

1120437F40
ref: 14-3

ROD ASSY,EXH SIDE VALVE CAM,R

€ 58.50

14-4

1120437F50
ref: 14-4

ROD ASSY,EXH SIDE VALVE CAM,R

€ 209.50

14-4

1120437F50
ref: 14-4

ROD ASSY,EXH SIDE VALVE CAM,R

€ 209.50

15-1

1120537F20
ref: 15-1

ROD ASSY,EXH SIDE VALVE CAM,L

€ 76.50

15-1

1120537F20
ref: 15-1

ROD ASSY,EXH SIDE VALVE CAM,L

€ 76.50

15-2

1120537F30
ref: 15-2

ROD ASSY,EXH SIDE VALVE CAM,L

€ 62.00

15-2

1120537F30
ref: 15-2

ROD ASSY,EXH SIDE VALVE CAM,L

€ 62.00

15-3

1120537F40
ref: 15-3

ROD ASSY,EXH SIDE VALVE CAM,L

€ 61.50

15-3

1120537F40
ref: 15-3

ROD ASSY,EXH SIDE VALVE CAM,L

€ 61.50

15-4

1120537F50
ref: 15-4

ROD ASSY,EXH SIDE VALVE CAM,L

€ 204.50

15-4

1120537F50
ref: 15-4

ROD ASSY,EXH SIDE VALVE CAM,L

€ 204.50

16-1

1120637F20
ref: 16-1

VALVE ASSY,EXHAUST MAIN

€ 127.50

16-2

1120637F40
ref: 16-2

VALVE ASSY,EXHAUST MAIN

€ 125.00

16-3

1120637F50
ref: 16-3

VALVE ASSY,EXHAUST MAIN

€ 615.00

17-1

1120737F21
ref: 17-1

VALVE ASSY,EXHAUST SIDE,R

€ 116.00

17-2

1120737F50
ref: 17-2

VALVE ASSY,EXHAUST SIDE,R

€ 214.50

18-1

1120837F21
ref: 18-1

VALVE ASSY,EXHAUST SIDE,L

€ 131.00

18-2

1120837F50
ref: 18-2

VALVE ASSY,EXHAUST SIDE,L

€ 228.50

19-1

1120937F21
ref: 19-1

ARM ASSY,EXH MAIN VALVE

€ 25.50

19-2

1120937F40
ref: 19-2

ARM ASSY,EXH MAIN VALVE

€ 27.00

19-3

1120937F50
ref: 19-3

ARM ASSY,EXH MAIN VALVE

€ 109.50

20

1125137F20
ref: 20

CAP,EXHAUST SIDE VLV STOP PIN

€ 6.00

21

1125937F21
ref: 21

SHAFT,EXHAUST VALVE

€ 75.50

22-1

1126137F20
ref: 22-1

PLATE,EXHAUST MAIN VALVE

€ 4.50

22-2

1126137F40
ref: 22-2

PLATE,EXHAUST MAIN VALVE

€ 6.00

23-1

1127337F20
ref: 23-1

SPACER,EXHAUST SIDE VALVE

€ 13.50

23-2

1127337F50
ref: 23-2

SPACER,EXHAUST SIDE VALVE

€ 19.50

24-1

1128837F20
ref: 24-1

SPRING,EXHAUST MAIN VALVE ARM

€ 5.50

24-2

1128837F40
ref: 24-2

SPRING,EXHAUST MAIN VALVE ARM

€ 6.50

25

0910604003
ref: 25

BOLT(4X8)

€ 2.50

26

0911805003
ref: 26

BOLT(5X12)

€ 4.50

27

0918008067
ref: 27

SPACER(8.5X12X19)

€ 3.00

28

0926104005
ref: 28

ROLLER(4X23.8)

€ 1.50

28

0926104005
ref: 28

ROLLER(4X23.8)

€ 1.50

29

0926104014
ref: 29

PIN(4X39.8)

€ 2.00

30

0713005123
ref: 30
07130-0512B

BOLT

€ 3.00

31-1

1267037820
ref: 31-1

GOVERNOR,DRIVE

€ 86.00

31-2

1267037830
ref: 31-2

GOVERNOR,DRIVE

€ 105.00

32

1267236F10
ref: 32

GOVERNOR,DRIVEN

€ 19.50

33

1267436F10
ref: 33

STOPPER,GOVERNOR SPRING NO.1

€ 14.00

34

1267536F11
ref: 34

STOPPER,GOVERNOR SPRING NO.2

€ 10.50

35

1267636F10
ref: 35

SPACER,GOVERNOR

€ 9.00

36-1

1267736F10
ref: 36-1

SPRING,GOVERNOR

€ 3.00

36-2

1267736F30
ref: 36-2

SPRING,GOVERNOR

€ 3.00

36-3

1267737F40
ref: 36-3

SPRING,GOVERNOR

€ 5.50

37

0918115223
ref: 37

SHIM(15X28X1)

€ 3.00

38

0926103017
ref: 38

ROLLER(3X12.5)

€ 1.50

39

0926315003
ref: 39

BEARING(15X28X2)

€ 7.50

40

0611112004
ref: 40

BALL

€ 2.00

41

0926208005
ref: 41

BEARING(8X22X7)

€ 13.50

42

0916808015
ref: 42

GASKET(8.2X14X1).6 (NAS)

€ 2.50
