HANDLEBAR - CONTROL CABLE
RM50 1979 (N)

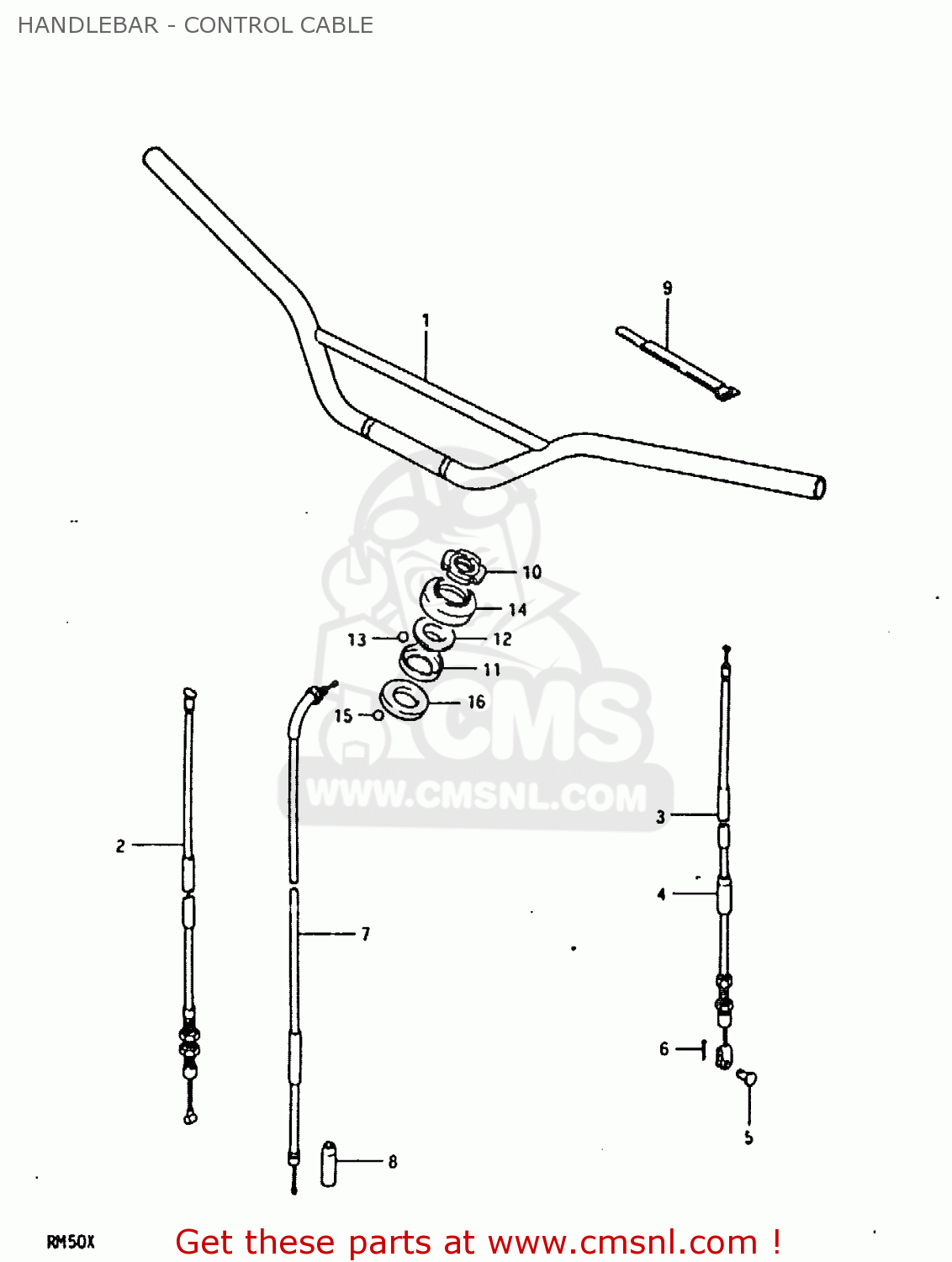

Handlebar - control cable diagram RM50 1979 (N)
HANDLEBAR - CONTROL CABLE RM50 1979 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611046401
ref: 1-1
RM50C
HANDLEBAR
€ 57.50
1-2
561104641008C
ref: 1-2
RM50N, T, X
HANDLEBAR
€ 57.50
2-1
5811046600
ref: 2-1
RM50C
CABLE ASSEMBLY,FRONT BRAKE
€ 31.00
2-2
5811046610
ref: 2-2
RM50N, T, X
CABLE,FRONT BRAKE
€ 26.50
3-1
5820046400
ref: 3-1
RM50C
CABLE ASSEMBLY,CLUTCH
€ 14.00
3-2
5820046630
ref: 3-2
RM50N, T, X
CABLE ASSY,CLUTCH
€ 14.50
4
0928707002
ref: 4
SEAL,DUST(7X18X30)
€ 2.50
5
0920006004
ref: 5
PIN(L:13)
€ 1.50
6
0411120158
ref: 6
PIN
€ 1.50
7-1
5830046610
ref: 7-1
RM50C
CABLE ASSEMBLY,THROTTLE
€ 36.00
7-2
5830046611
ref: 7-2
RM50N, T, X
CABLE ASSEMBLY,THROTTLE
€ 36.00
8
0928707002
ref: 8
SEAL,DUST(7X18X30)
€ 2.50
9
0940718301
ref: 9
CLAMP
€ 6.00
10
5163128000
ref: 10
NUT,STEERING STEM(25X44X10)
€ 12.50
11
5161120002
ref: 11
RACE,STEERING INNER UPR
€ 5.50
12
5162128000
ref: 12
RACE,STEERING OUTER UPR
€ 7.00
13
0611106003
ref: 13
BALL
€ 1.50
14
5164325001
ref: 14
DUST SEAL,STEERING UPR
€ 4.50
15
0611108003
ref: 15
BALL
€ 1.50
16
5161133002
ref: 16
LACE,STEERING INNER LWR
€ 7.00
