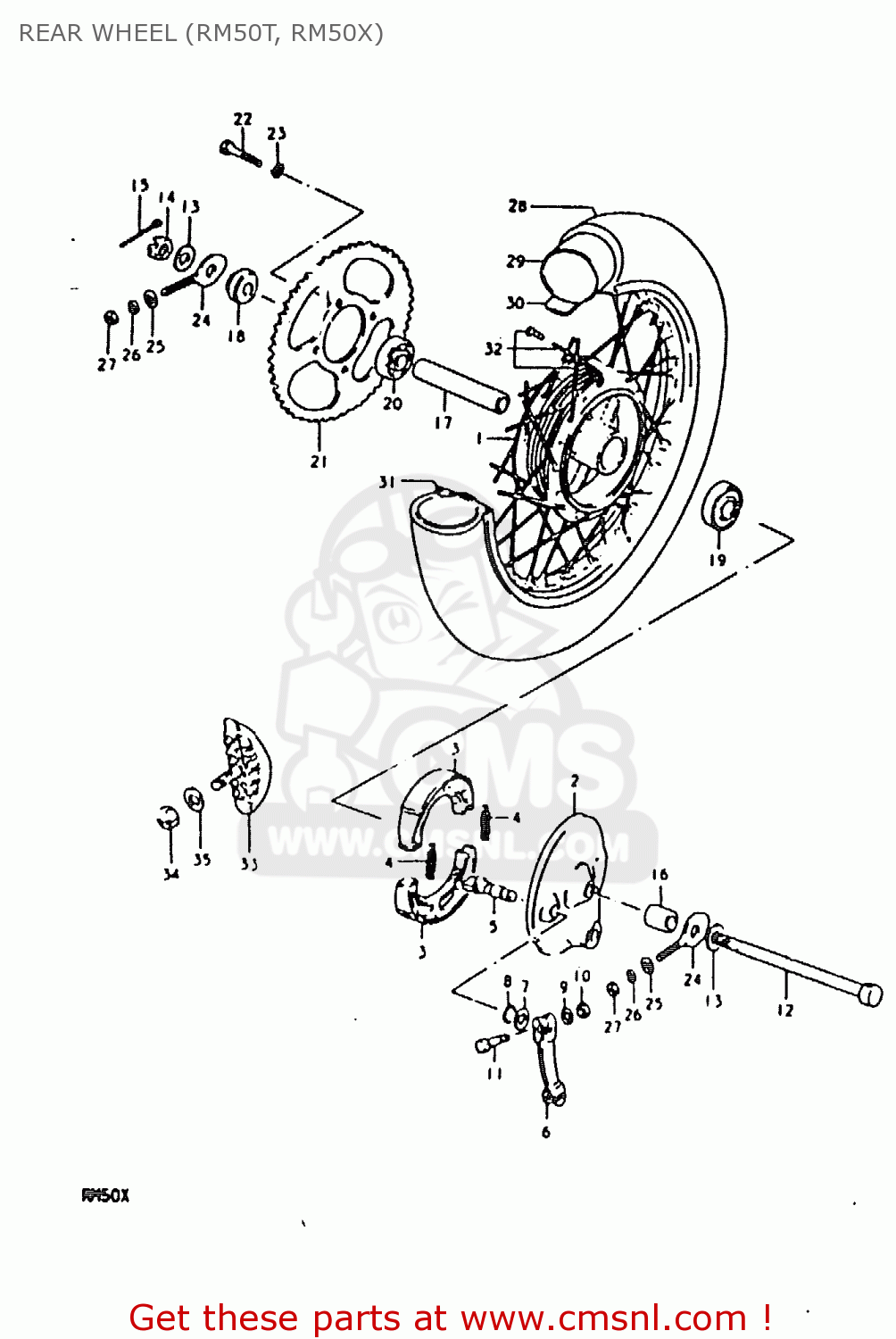

REAR WHEEL (RM50T, RM50X)

ref

part #

description

quantity

1

6410046821
ref: 1

DRUM SET,REAR HUB

€ 82.00

2

6421046022
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 66.00

3-1

5441035000
ref: 3-1
MODEL T

SHOE,BRAKE

€ 39.00

3-2

5441043020
ref: 3-2
MODEL X

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445146100
ref: 6

LEVER,REAR BRAKE CAM

€ 10.00

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11
6*31

BOLT(6X33)

€ 2.50

12

6471143000
ref: 12

AXLE,REAR

€ 28.50

13

0832211128
ref: 13

WASHER

€ 2.00

14

0832211128
ref: 14

WASHER

€ 2.00

15

0831431128
ref: 15

NUT 12MM

€ 2.00

16

0411130308
ref: 16

COTTER PIN

€ 1.50

17

0918012077
ref: 17

SPACER (12.1X22X27)

€ 4.50

18

0918012078
ref: 18

SPACER(12.6X19X91)

€ 7.00

19

0814363017
ref: 19

BEARING

€ 14.50

20

0812363017
ref: 20

BEARING

€ 13.50

21

6451146600
ref: 21

SPROCKET,RR(NT:42)

€ 34.00

22

0910010007
ref: 22

BOLT

€ 4.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

6141101002
ref: 24

ADJUSTER,CHAIN,R

€ 6.00

25

0832221068
ref: 25

WASHER

€ 2.00

26

0832121068
ref: 26

LOCK WASHER

€ 2.50

27

0831011068
ref: 27

NUT

€ 2.50

28

6510046420
ref: 28

TIRE

€ 57.00

29

6520046410
ref: 29

TUBE,INNER

€ 19.00

30

6526146410
ref: 30

PROTECTOR,INNER TUBE

€ 4.50

31

6531146430
ref: 31

RIM,REAR WHEEL

€ 71.00

32

6532046420
ref: 32

SPOKE SET,REAR WHEEL

€ 21.50

33

6527046910
ref: 33

STOPPER,BEAD

€ 30.50

34

0831012088
ref: 34

NUT

€ 2.00

35

0832211088
ref: 35

WASHER

€ 2.00

REAR WHEEL (RM50T, RM50X)
