REAR WHEEL (RM50C, RM50N)
RM50 1979 (N)

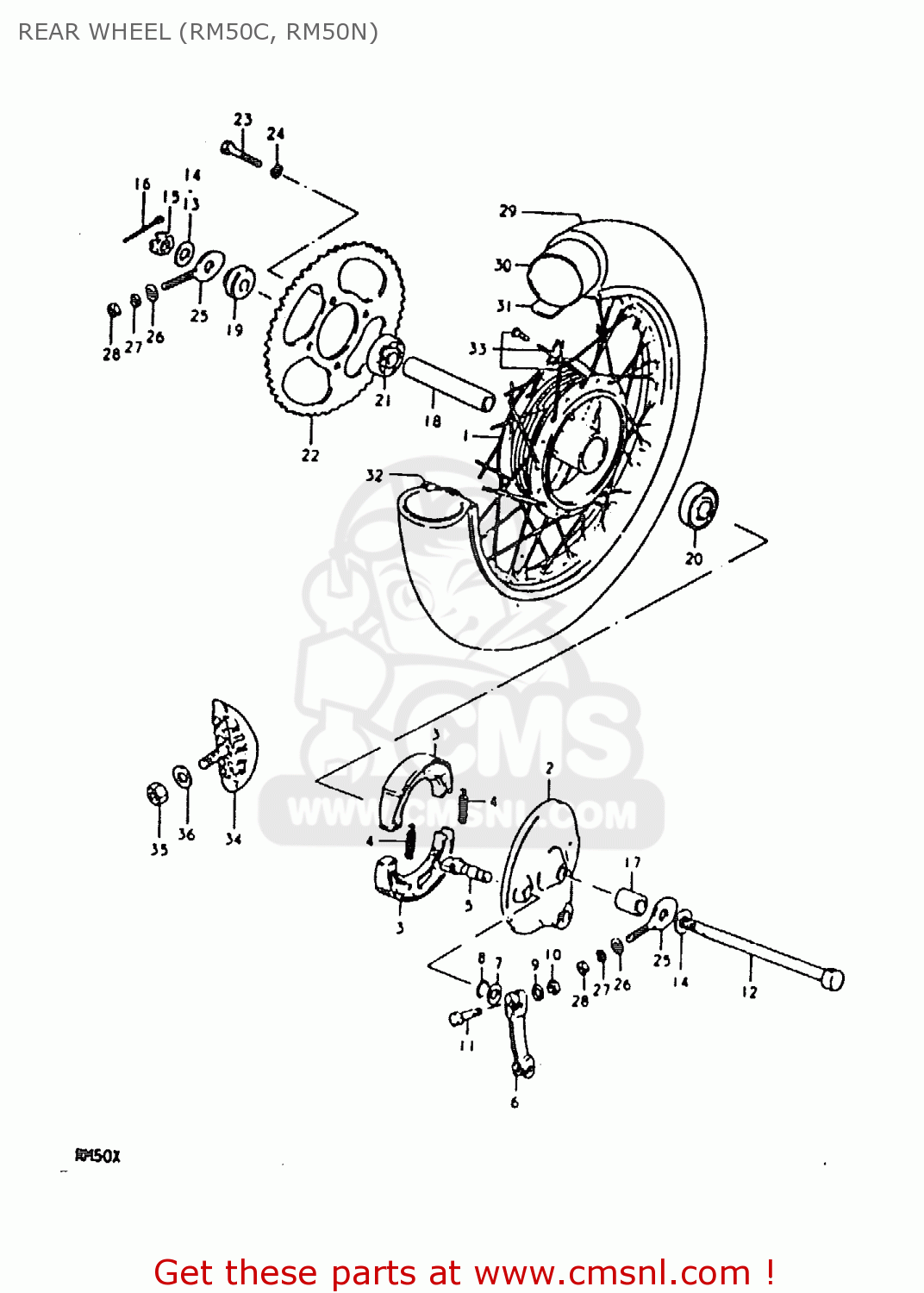

Rear wheel (rm50c, rm50n) diagram RM50 1979 (N)
REAR WHEEL (RM50C, RM50N) RM50 1979 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411046421
ref: 1-1
MODEL C
DRUM,REAR HUB
€ 82.00
1-2
6410046820
ref: 1-2
TO 64100-46821, MODE
DRUM SET,REAR HUB
€ 82.00
2
6421046022
ref: 2
PANEL,REAR BRAKE ANCHOR
€ 66.00
3-1
5441043000
ref: 3-1
TO 54410-01005, MODE
SHOE,BRAKE
€ 39.00
3-2
5441035000
ref: 3-2
MODEL N
SHOE,BRAKE
€ 39.00
4
0944307001
ref: 4
SPRING(L:34)
€ 2.50
5
5444129301
ref: 5
TO 54441-29302
CAM,FRONT BRAKE
€ 13.00
6
6445146100
ref: 6
LEVER,REAR BRAKE CAM
€ 10.00
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
€ 2.50
8
0928014003
ref: 8
O-RING (D:2.4 ID:13.8)
€ 3.50
9
0832221068
ref: 9
WASHER
€ 2.00
10
0831011068
ref: 10
NUT
€ 2.50
11
0910006078
ref: 11
6*31
BOLT(6X33)
€ 2.50
12
6471143000
ref: 12
AXLE,REAR
€ 28.50
13
0832211128
ref: 13
MODEL C
WASHER
€ 2.00
14
0832211128
ref: 14
MODEL N
WASHER
€ 2.00
15
0831431128
ref: 15
NUT 12MM
€ 2.00
16
0411130308
ref: 16
COTTER PIN
€ 1.50
17
0918012077
ref: 17
SPACER (12.1X22X27)
€ 4.50
18
0918012078
ref: 18
SPACER(12.6X19X91)
€ 7.00
19
6475046000
ref: 19
SPACER,RR AXLE,L
€ 6.50
20
0814363010
ref: 20
TO 08143-63017
BEARING, RH
€ 14.50
21
0812763010
ref: 21
TO 08123-63017
BEARING, REAR HUB LH
€ 0.00
22
6451146600
ref: 22
SPROCKET,RR(NT:42)
€ 34.00
23
0910010007
ref: 23
BOLT
€ 4.50
24
0832121108
ref: 24
LOCK WASHER
€ 2.00
25
6141101002
ref: 25
ADJUSTER,CHAIN,R
€ 6.00
26
0832221068
ref: 26
WASHER
€ 2.00
27
0832121068
ref: 27
LOCK WASHER
€ 2.50
28
0831011068
ref: 28
NUT
€ 2.50
29-1
6510046410
ref: 29-1
MODEL C
TIRE
€ 57.00
29-2
6510046420
ref: 29-2
MODEL N
TIRE
€ 57.00
30
6520046410
ref: 30
TUBE,INNER
€ 19.00
31
6526146410
ref: 31
PROTECTOR,INNER TUBE
€ 4.50
32-1
6531146420
ref: 32-1
MODEL C
RIM,RR WHEEL(1.60X12)
€ 71.00
32-2
6531146430
ref: 32-2
MODEL N
RIM,REAR WHEEL
€ 71.00
33
6532046420
ref: 33
SPOKE SET,REAR WHEEL
€ 21.50
34
6527046900
ref: 34
MODEL N
STOPPER,BEAD
€ 30.50
35
0831012088
ref: 35
MODEL N
NUT
€ 2.00
36
0832211088
ref: 36
MODEL N
WASHER
€ 2.00
