FRONT FORK (MODEL Z)
RM60 1982 (Z) USA (E03)

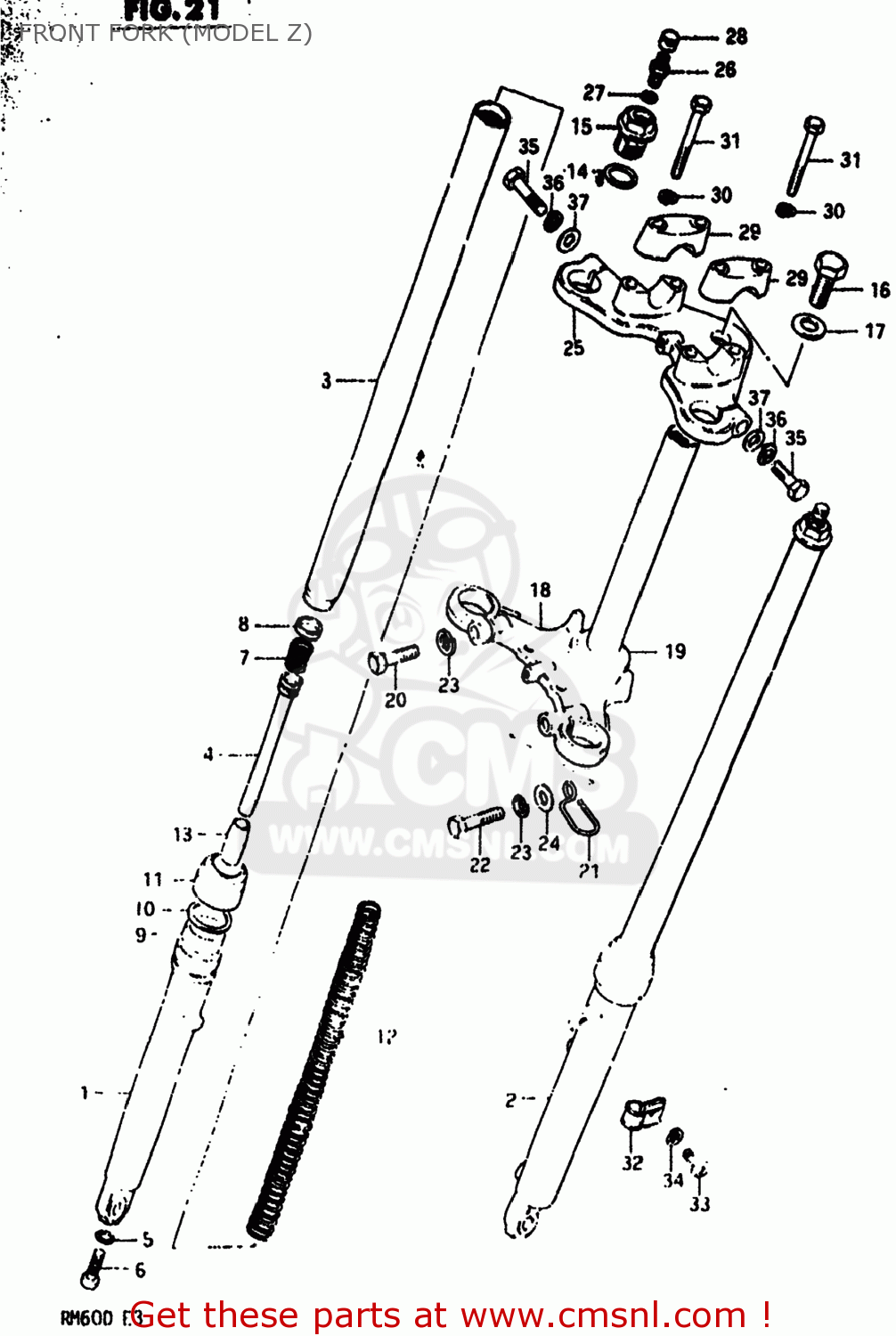

Front fork (model z) diagram RM60 1982 (Z) USA (E03)
FRONT FORK (MODEL Z) RM60 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511004668608C
ref: 0
DAMPER SET
€ 231.00
1
5113146686
ref: 1
TUBE,OUTER,RIGHT
€ 42.00
2
5114146686
ref: 2
TUBE,OUTER,LEFT
€ 49.00
3
5111046684
ref: 3
TUBE,FORK,INNER
€ 40.00
4
5114646684
ref: 4
51146-03400
CYLINDER,FRONT FORK
€ 0.00
5
5114831030
ref: 5
51148-36011
GASKET (NAS)
€ 4.00
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5117746100
ref: 7
SPRING,REBOUND
€ 3.50
8
5119646100
ref: 8
RING,PISTON
€ 6.00
9
5115346101
ref: 9
51153-03400
OIL SEAL,FRONT FORK
€ 10.50
10
5115646686
ref: 10
CIRCLIP,FORK OIL SEAL
€ 0.00
11
5157146100
ref: 11
DUST SEAL
€ 6.00
12
5117146684
ref: 12
SPRING
€ 10.50
13
5119546684
ref: 13
PIECE,OIL LOCK
€ 0.00
14
5118125030
ref: 14
O RING
€ 3.00
15
5135146686
ref: 15
CAP,FORK
€ 6.50
16
5135246030
ref: 16
BOLT
€ 6.00
17
5135646030
ref: 17
WASHER(10.5X30X2.3)
€ 5.00
18
514104668608C
ref: 18
STEM,STEERING
€ 60.50
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
0110710308
ref: 20
01500-1030A
BOLT 10X30
€ 3.00
21
5145546030
ref: 21
CLAMP,METER CABLE
€ 2.50
22
0110710358
ref: 22
01500-1035B
BOLT,M10X1.25X
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0832211108
ref: 24
08322-01107
WASHER
€ 2.50
25
513114668608C
ref: 25
HEAD,STEERING STEM
€ 49.50
26
5129345440
ref: 26
VALVE,AIR
€ 17.00
27
5111745440
ref: 27
09280-06005
O-RING
€ 2.50
28
5129440400
ref: 28
CAP,VALVE AIR
€ 4.00
29
562114668008C
ref: 29
HOLDER,HANDLEBAR
€ 9.50
30
0832121088
ref: 30
08321-01087
LOCK WASHER
€ 2.00
31
0110708358
ref: 31
01500-0835B
BOLT
€ 3.50
32
5145246030
ref: 32
51452-46040
CLIP,CABLE
€ 5.50
33
0211204128
ref: 33
02112-0412A
SCREW
€ 1.50
34
0832121048
ref: 34
08321-0104A
LOCK WASHER
€ 2.00
35
0110708408
ref: 35
01500-0840A
BOLT 8X40
€ 3.00
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
37
0832221088
ref: 37
08322-01087
WASHER
€ 2.00
