MUFFLER
RM60 1982 (Z) USA (E03)

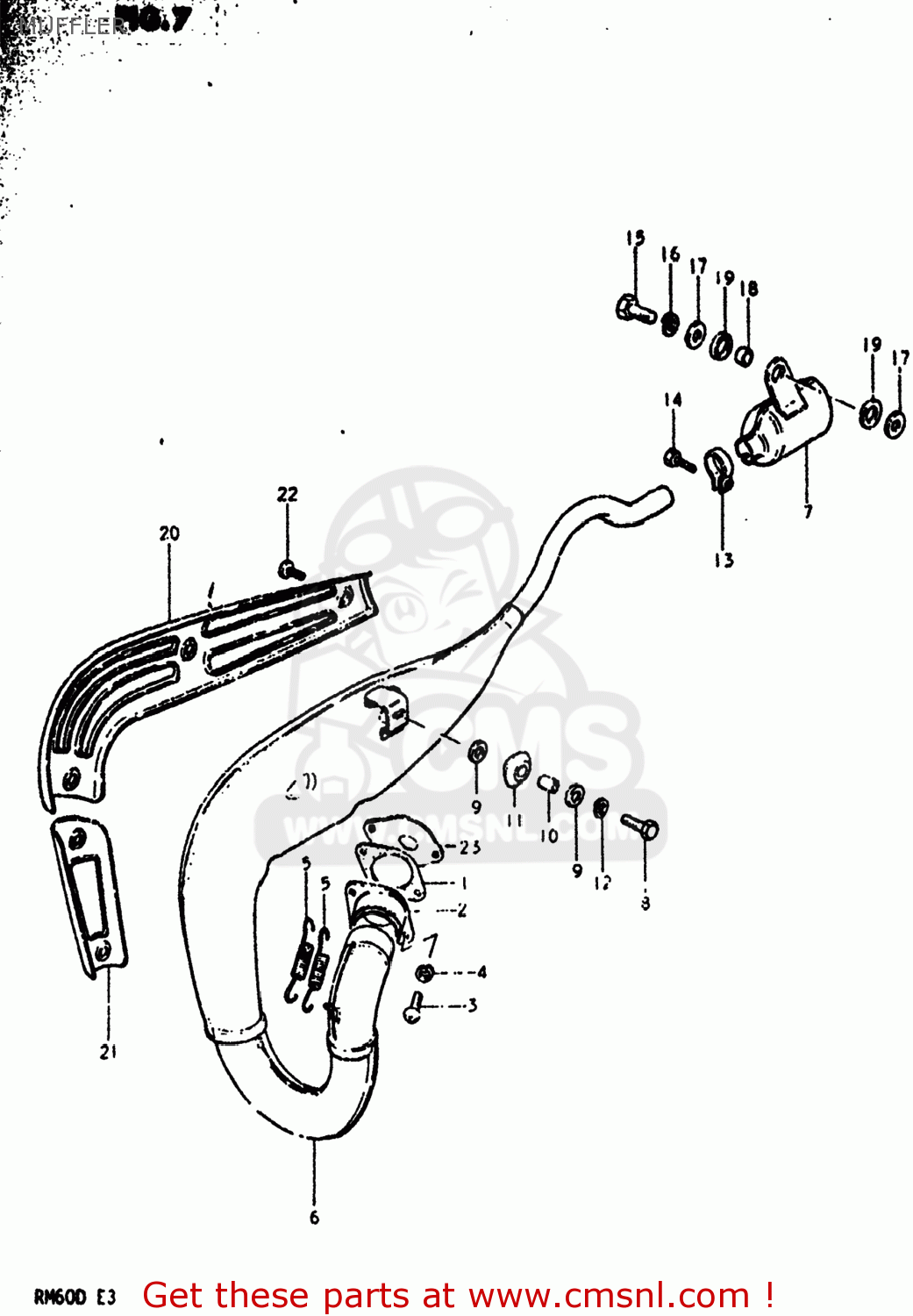

Muffler diagram RM60 1982 (Z) USA (E03)
MUFFLER RM60 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418146001
ref: 1
14181-46001-H17
GASKET,EXHAUST PIPE (MCA)
€ 7.50
2
1417046600
ref: 2
PIPE,CENTER EXHAUST
€ 0.00
3
0211206168
ref: 3
02112-06167
SCREW
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0944311002
ref: 5
SPRING
€ 4.50
6
1431046620
ref: 6
14310-46640-H01
BODY,MUFFLER
€ 110.00
7
1433046630
ref: 7
14330-46650-H01
BODY,MUFFLER
€ 44.50
8
0110708308
ref: 8
01500-08307
BOLT (8X30)
€ 2.50
9
0916008007
ref: 9
09160-08127
WASHER (8.7X22X2)
€ 2.00
10
0918008048
ref: 10
09180-08302
SPACER (8X12X15)
€ 3.50
11
1477230500
ref: 11
DAMPER,MUFFLER,FR
€ 3.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0940225601
ref: 13
CLAMP
€ 3.50
14
0912806006
ref: 14
09128-06057
BOLT(6X20)
€ 2.00
15
0110708258
ref: 15
01500-08257
BOLT
€ 2.50
16
0832121088
ref: 16
08321-01087
LOCK WASHER
€ 2.00
17-1
0916008005
ref: 17-1
09160-08134
WASHER
€ 2.50
17-2
0916008004
ref: 17-2
09160-08134
WASHER
€ 2.50
18
0918008050
ref: 18
09180-08199
SPACER (8.6X13.8X9)
€ 2.50
19
0932014006
ref: 19
CUSHION
€ 3.50
20
1478146640
ref: 20
COVER,MUFFLER NO.1
€ 24.00
21
1478246640
ref: 21
COVER,MUFFLER
€ 27.50
22
0211206088
ref: 22
02112-06087
SCREW
€ 2.00
23
1415946610
ref: 23
PLATE,EXHAUST PIPE
€ 2.50
