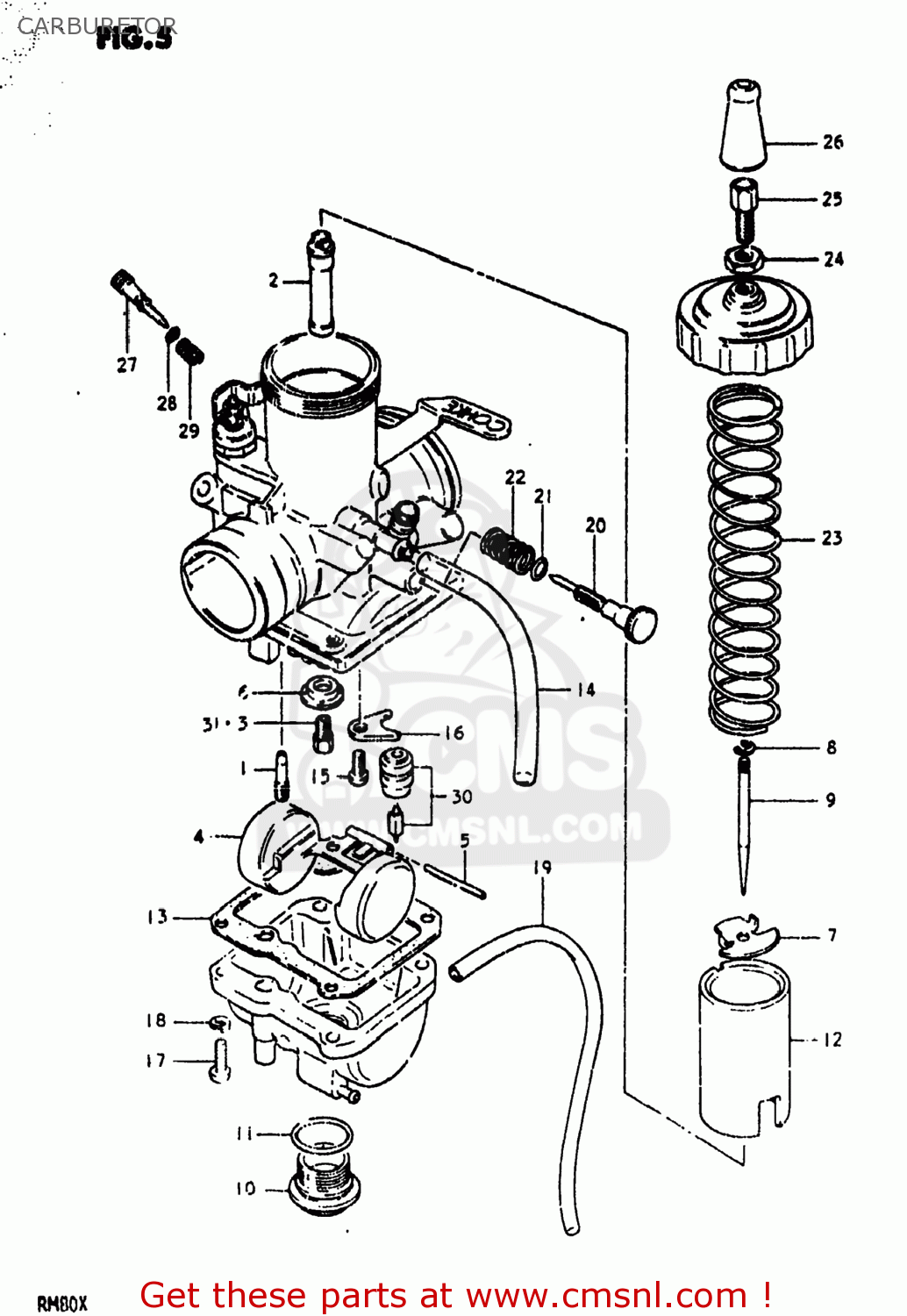

CARBURETOR

ref

part #

description

quantity

0

1320046920
ref: 0

CARBURETOR ASSEMBLY

€ 90.00

1

0949235004
ref: 1

JET,PILOT(35)

€ 7.50

2

0949400218
ref: 2

JET,NEEDLE

€ 0.00

3

0949131005
ref: 3

JET,MAIN(155)

€ 8.00

4

1325229630
ref: 4

FLOAT

€ 22.50

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1333128710
ref: 6

RING

€ 8.50

7

1358129500
ref: 7

PLATE,THROTTLE VALVE

€ 4.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346900
ref: 9

NEEDLE,JET(5DP39-4)

€ 11.50

10

1324746900
ref: 10

PLUG

€ 12.50

11

1324629630
ref: 11

O RING

€ 5.00

12

1355129500
ref: 12

VALVE,THROTTLE

€ 0.00

13

1325129630
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

14

1368446920
ref: 14
13684-40A00

HOSE

€ 7.50

15

0211204088
ref: 15
02112-04087

SCREW

€ 1.50

16

1337339110
ref: 16

PLATE

€ 6.50

17

0211204168
ref: 17
02112-0416A

SCREW

€ 1.00

18

0832121048
ref: 18
08321-0104A

LOCK WASHER

€ 2.00

19

1368339110
ref: 19
09352-30503-600

HOSE

€ 8.00

20

1326746010
ref: 20
13267-36A00

ADJUSTER

€ 10.00

21

1329430010
ref: 21
13278-02340

O-RING

€ 1.50

22

1326846010
ref: 22

SPRING

€ 3.50

23

1357330900
ref: 23

SPRING,THROTTLE VALVE

€ 6.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357741612
ref: 25

ADJUSTER,CABLE

€ 8.00

26

1368116601
ref: 26

CAP

€ 7.00

27

1326915011
ref: 27

SCREW,PILOT AIR ADJUSTING

€ 12.50

28

1329533010
ref: 28

O RING

€ 4.50

29

1326835010
ref: 29

SPRING

€ 3.00

30

1337029500
ref: 30
13370-02B50

VALVE ASSEMBLY,NEEDLE

€ 54.50

31-1

0949130003
ref: 31-1
09491-30017

JET

€ 12.00

31-2

0949132002
ref: 31-2

JET,MAIN(160)

€ 6.50

31-3

0949134002
ref: 31-3

JET,MAIN(170)

€ 7.00

31-4

0949136003
ref: 31-4
09491-36006

JET

€ 15.00

31-5

0949138003
ref: 31-5
09491-38009

JET

€ 10.00

all assemblies
