MAGNETO
RM80 1981 (X) USA (E03)

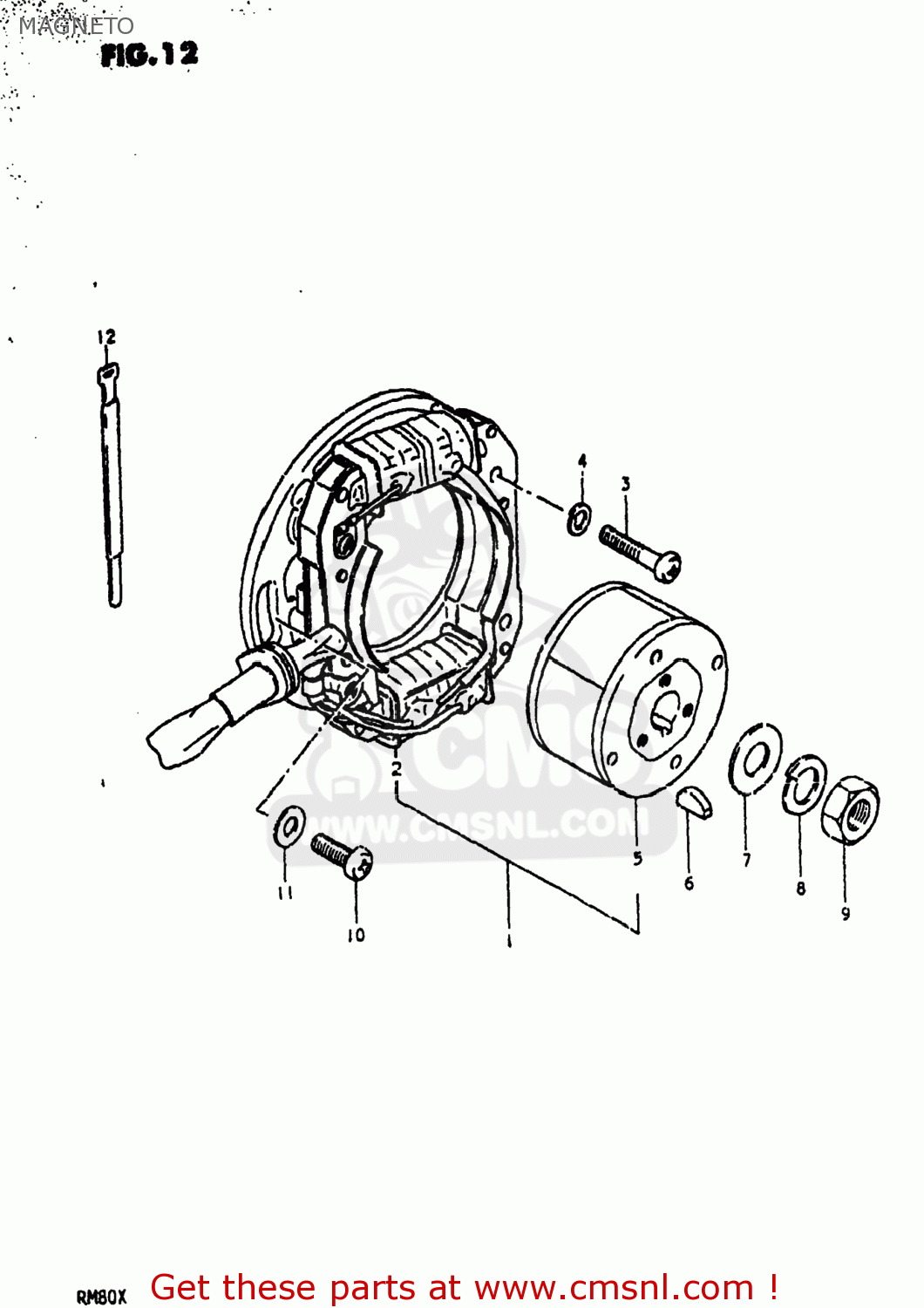

Magneto diagram RM80 1981 (X) USA (E03)
MAGNETO RM80 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210046921
ref: 1
MAGNETO ASSEMBLY
€ 478.50
2
3210146921
ref: 2
32101-40221
STATOR ASSEMBLY
€ 405.50
3
0211205208
ref: 3
02112-05207
SCREW 5X20
€ 3.00
4
0832121058
ref: 4
08321-0105A
LOCK WASHER
€ 2.00
5
3210246920
ref: 5
ROTOR ASSEMBLY
€ 312.50
6
0834131049
ref: 6
09420-04008
KEY 4MM
€ 3.50
7
0832221108
ref: 7
08322-01107
WASHER
€ 2.50
8
0832121108
ref: 8
08321-01107
LOCK WASHER
€ 2.00
9
0914010003
ref: 9
09140-10041
NUT (10MM)
€ 3.50
10
0211206168
ref: 10
02112-06167
SCREW
€ 2.50
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12-1
0940718301
ref: 12-1
CLAMP
€ 6.00
12-2
0940711301
ref: 12-2
09407-18301
CLAMP L:110
€ 6.00
