FUEL TANK (MODEL R/S)

RM80 1986 (G) USA (E03)

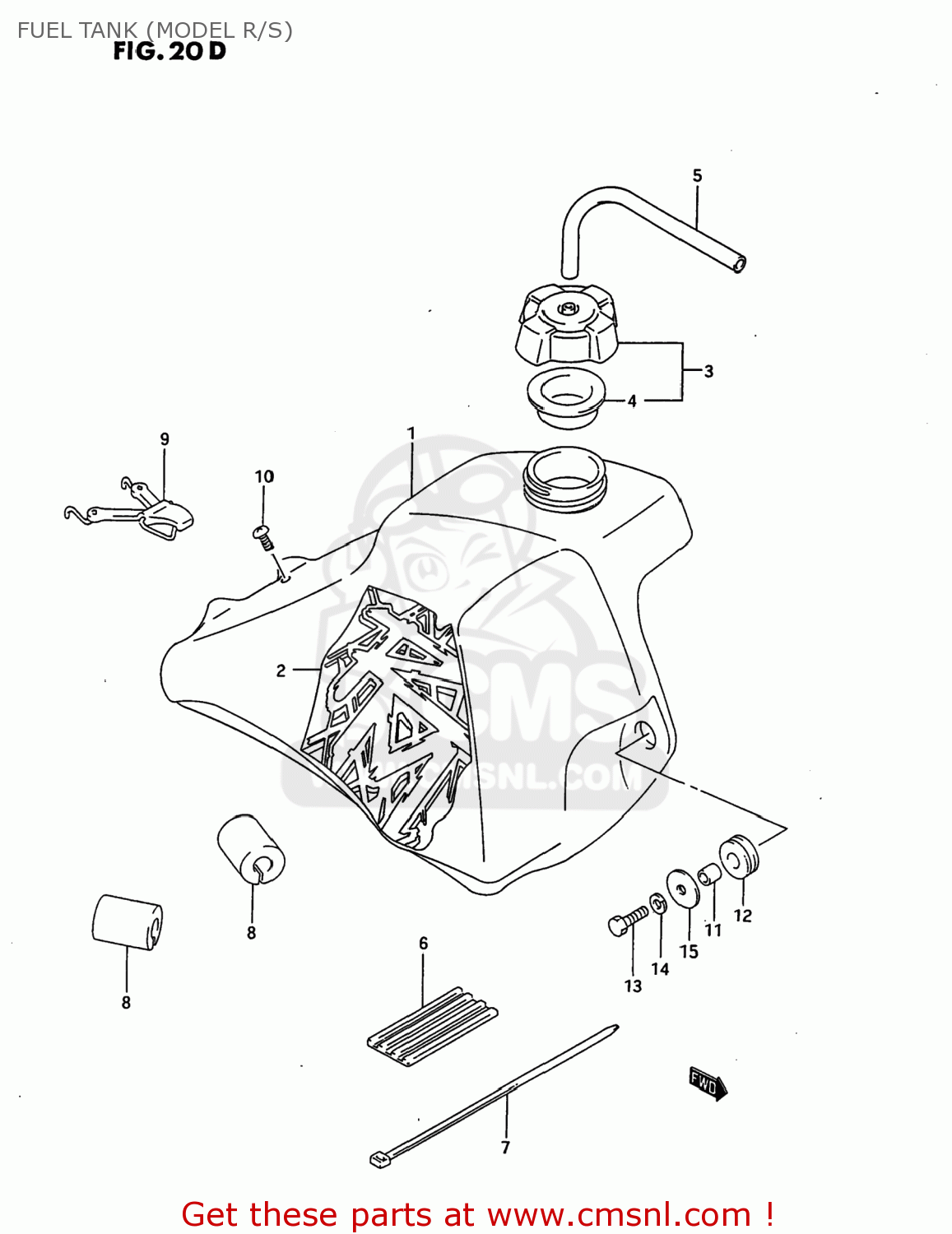

Fuel tank (model r/s) diagram RM80 1986 (G) USA (E03)

FUEL TANK (MODEL R/S) RM80 1986 (G) USA (E03)

FUEL TANK (MODEL R/S) RM80 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

441010284025Y
ref: 1-1
44101-02841-25Y

TANK ASSEMBLY,FUEL

€ 287.50

1-2

44101028502TX
ref: 1-2
44101-02851-2TX

TANK SET,FUEL

€ 230.50

2-1

6811103B30C2M
ref: 2-1

EMBLEM,FUEL TANK

€ 97.00

2-2

6811103B30D0J
ref: 2-2

EMBLEM

€ 55.50

3-1

4420014820
ref: 3-1
44200-27870

CAP SET,FUEL TANK

€ 19.50

3-2

4420027860
ref: 3-2
44200-27870

CAP SET,FUEL TANK

€ 19.50

4-1

4424840400
ref: 4-1
44248-05210

GASKET,FUEL TANK CAP (NAS)

€ 4.50

4-2

4424827C00
ref: 4-2

GASKET,CAP (NAS)

€ 4.00

5-1

0935250823300
ref: 5-1
44420-44AR0

HOSE

€ 13.00

5-2

0935250823600
ref: 5-2
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

6

4454114300
ref: 6

CUSHION,FUEL TANK UPR FR

€ 4.50

7-1

0940720401
ref: 7-1
09407-25402

CLAMP

€ 4.50

7-2

0940720404
ref: 7-2
09407-25402

CLAMP

€ 4.50

8

4454217300
ref: 8

CUSHION,FUEL TANK UPR RR

€ 5.00

9

4456026C00
ref: 9

BAND,FUEL TANK RR

€ 9.50

10

0214206163
ref: 10
02142-0616A

SCREW

€ 2.50

11-1

0918006006
ref: 11-1
09180-07019

SPACER (6.8X10X11.5)

€ 3.00

11-2

0918006112
ref: 11-2
09180-06289

SPACER (6.8X10X11.5)

€ 2.50

12

0932010029
ref: 12

CUSHION

€ 13.50

13

0110706255
ref: 13
01500-0625A

BOLT

€ 2.50

14

0832121064
ref: 14
08321-0106A

WASHER,LOCK

€ 2.00

15

0916006074
ref: 15
09160-06501

WASHER (6.5X24X1.6)

€ 2.00
