REAR WHEEL (MODEL G/H/J/K)

RM80 1986 (G) USA (E03)

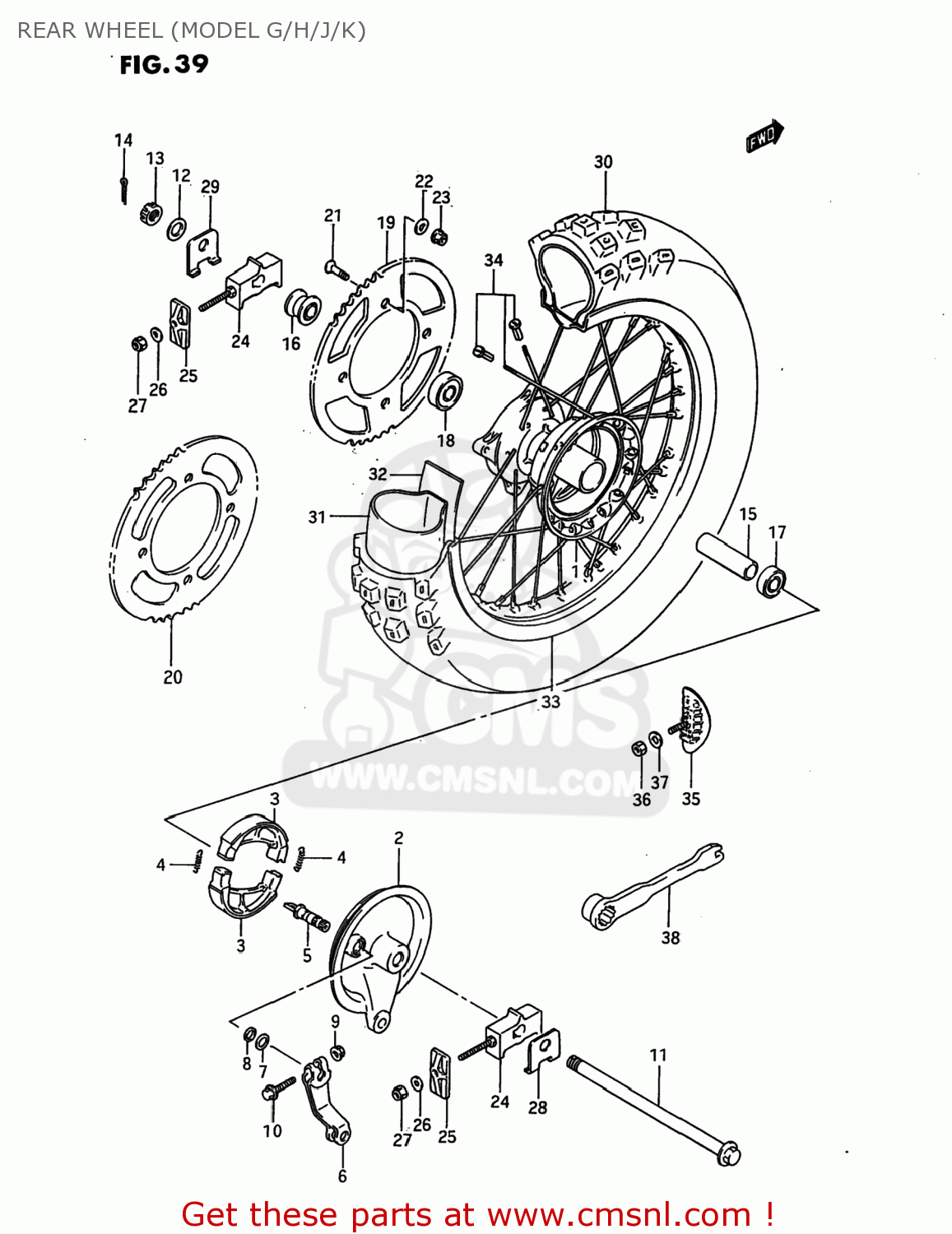

Rear wheel (model g/h/j/k) diagram RM80 1986 (G) USA (E03)

REAR WHEEL (MODEL G/H/J/K) RM80 1986 (G) USA (E03)
REAR WHEEL (MODEL G/H/J/K) RM80 1986 (G) USA (E03)
REAR WHEEL (MODEL G/H/J/K) RM80 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6411020413
ref: 1-1
64110-02B10
HUB,REAR
6411020413
€ 190.50
1-2
6411002B10
ref: 1-2
HUB,RR WHEEL
6411002B10
€ 190.50
2-1
6421020411
ref: 2-1
64210-02B10
PANEL,REAR HUB
6421020411
€ 69.50
2-2
6421002B10
ref: 2-2
PANEL,RR BRAKE ANCHOR
6421002B10
€ 69.50
3-1
6441020402
ref: 3-1
64400-02810
SHOE,BRAKE
6441020402
€ 8.50
3-2
6441002B20
ref: 3-2
64400-02810
SHOE COMP,REAR BRAKE
6441002B20
€ 18.00
4-1
0944307025
ref: 4-1
SPRING(L:35.8)
0944307025
€ 2.50
4-2
0944307001
ref: 4-2
09443-07025
SPRING(L:34)
0944307001
€ 2.50
5
5444120900
ref: 5
CAM,BRAKE
5444120900
€ 9.50
6
6445102B00
ref: 6
LEVER,RR BRAKE CAM
€ 13.50
7
0916012011
ref: 7
WASHER(12.5X20X1)
0916012011
€ 1.50
8
0928012001
ref: 8
O RING(D:2.5,ID:11.4)
0928012001
€ 2.50
9
0915906017
ref: 9
08319-31067
NUT
0915906017
€ 2.50
10
0151706307
ref: 10
01550-06307
BOLT
0151706307
€ 2.00
11
6471102B00
ref: 11
64711-02B01
AXLE,REAR
6471102B00
€ 33.50
12
0916014033
ref: 12
09160-14062
WASHER
€ 3.00
13
0914114004
ref: 13
NUT
0914114004
€ 5.00
14
0411130308
ref: 14
04111-3030A
COTTER PIN
0411130308
€ 1.50
15
0918015069
ref: 15
SPACER(15.3X21.7X77)
0918015069
€ 13.00
16
6474020521
ref: 16
SPACER,L
6474020521
€ 16.00
17
0812360027
ref: 17
BEARING
0812360027
€ 16.00
18
0812362027
ref: 18
BEARING
0812362027
€ 14.50
19-1
6451102B01
ref: 19-1
SPROCKET,RR(NT:50)
6451102B01
€ 98.50
19-2
6451102B10
ref: 19-2
SPROCKET,REAR (NT:49-420)
6451102B10
€ 131.00
19-3
6451102B20
ref: 19-3
SPROCKET,REAR (NT:51-420)
6451102B20
€ 154.50
19-4
6451102B30
ref: 19-4
SPROCKET,REAR (NT:48-420)
6451102B30
€ 89.50
20-1
6451120920
ref: 20-1
SPROCKET,RR(NT:48)
6451120920
€ 68.50
20-2
6451120980
ref: 20-2
SPROCKET,RR(NT:46)
€ 174.50
20-3
6451120550
ref: 20-3
SPROCKET,RR(NT:47)
6451120550
€ 82.00
20-4
6451102B40
ref: 20-4
SPROCKET,RR(49T)
€ 79.00
21-1
0912008010
ref: 21-1
BOLT(8X30.5)
0912008010
€ 2.50
21-2
0912008004
ref: 21-2
SCREW(8X33.5)
0912008004
€ 3.00
22
0832221088
ref: 22
08322-01087
WASHER
0832221088
€ 2.00
23
0831931087
ref: 23
NUT
0831931087
€ 2.50
24
6141002B02
ref: 24
ADJUSTER,CHAIN
6141002B02
€ 147.50
25
6142102B00
ref: 25
61421-02B0V
PLATE,CHAIN ADJUSTER
6142102B00
€ 7.00
26
0832221067
ref: 26
08322-01067
WASHER
0832221067
€ 2.00
27
0831921068
ref: 27
08319-2106A
NUT 6MM
0831921068
€ 2.00
28
6471202B00
ref: 28
WASHER,CHAIN ADJUSTER RH
6471202B00
€ 2.50
29
6471302B00
ref: 29
WASHER,CHAIN ADJUSTER,L
6471302B00
€ 2.00
30-1
6510002B00
ref: 30-1
65110-02B40
TIRE
€ 52.50
30-1
6510002B00
ref: 30-1
65110-02B40
TIRE
€ 52.50
30-2
6510002B10
ref: 30-2
65110-02B40
TIRE, REAR (90/100-14) IRC
€ 52.50
30-3
6510002B11
ref: 30-3
65110-02B40
TIRE
€ 52.50
31
6520020300
ref: 31
65200-02B40
TUBE ASSEMBLY,WHEEL,INNER
€ 26.00
32
5526124010
ref: 32
PROTECTOR,INNER TUBE
5526124010
€ 9.50
33
6531102B00
ref: 33
RIM,REAR WHEEL (1.60X14)
€ 149.00
34
6532020410
ref: 34
SPOKE SET
6532020410
€ 29.50
35
6527046910
ref: 35
65270-43D00
STOPPER,BEAD
€ 30.50
36
0831012088
ref: 36
08310-00087
NUT
0831012088
€ 2.00
37
0832211088
ref: 37
08322-01087
WASHER
0832211088
€ 2.00
38
0981600126
ref: 38
SPARK PLUG WRENCH 21 & SPANNER 5.1
€ 10.00
