EXHAUST VALVE (MODEL K/L/M/N/P/R/S)
RM80 1990 (L) USA (E03)

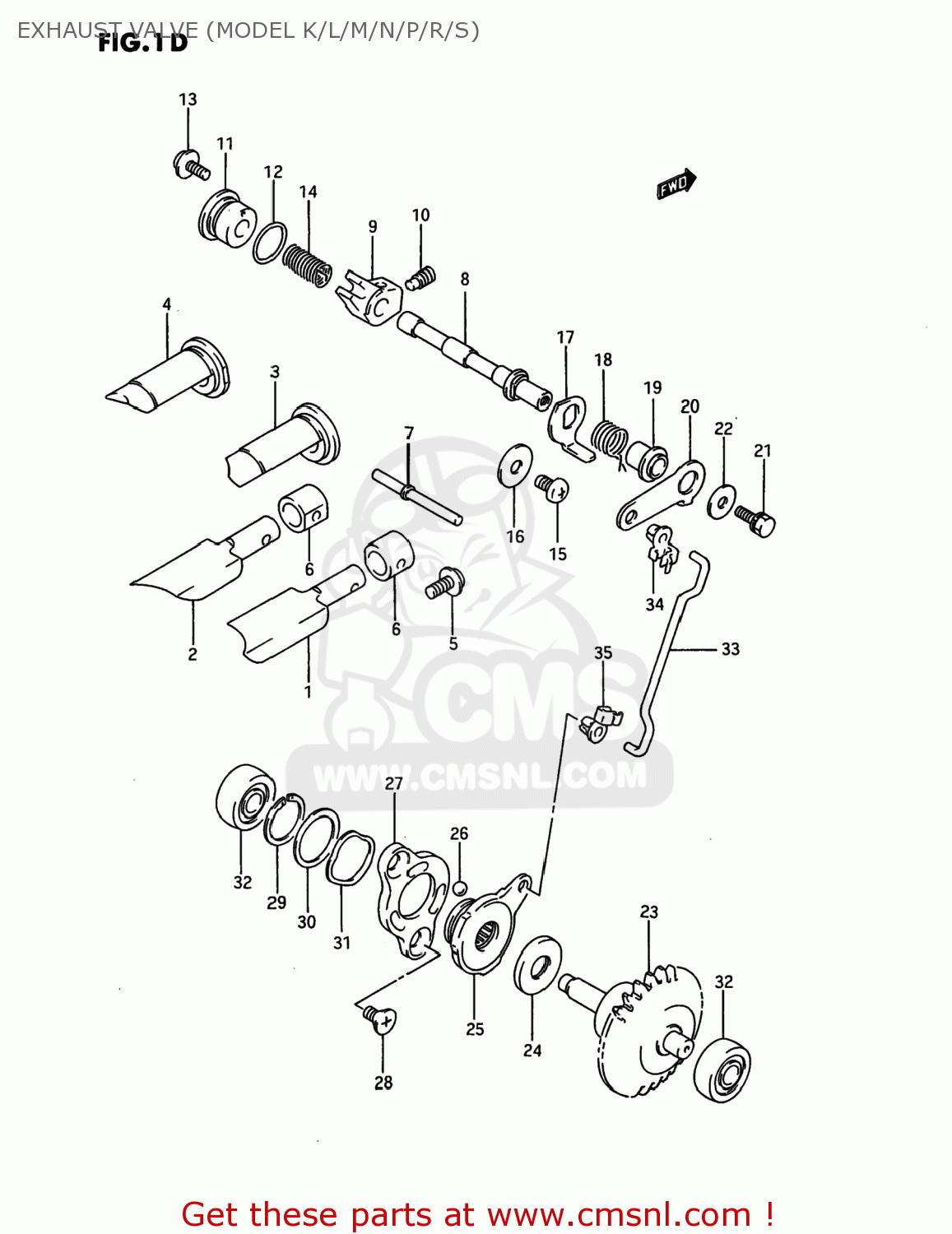

Exhaust valve (model k/l/m/n/p/r/s) diagram RM80 1990 (L) USA (E03)
EXHAUST VALVE (MODEL K/L/M/N/P/R/S) RM80 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1125402B40
ref: 1
VALVE,EXHAUST,R
€ 92.50
2
1125502B40
ref: 2
VALVE,EXHAUST,L
€ 97.50
3
1126102B40
ref: 3
GUIDE,EXHAUST VALVE,R
€ 91.50
4
1126202B40
ref: 4
GUIDE,EXHAUST VALVE,L
€ 91.50
5-1
0211215128
ref: 5-1
02142-05127
SCREW
€ 1.50
5-2
0211215123
ref: 5-2
02142-0512A
SCREW 5X12
€ 1.50
6
1126301B30
ref: 6
SPACER,EXHAUST VALVE
€ 14.00
7
1125301B31
ref: 7
11253-01B32
PIN,EXHAUST VALVE 48.5MM
€ 20.50
8
1125902B40
ref: 8
SHAFT,EXHAUST VALVE
€ 47.50
9
1126400B23
ref: 9
11264-00B24
ARM,EXHAUST VALVE SHAFT
€ 17.00
10
0913406013
ref: 10
SCREW(6X10)
€ 4.50
11
1125802B40
ref: 11
CAP,EXHAUST VALVE
€ 48.50
12-1
0928015011
ref: 12-1
09280-15006
O-RING
€ 2.50
12-2
0928015006
ref: 12-2
O RING(D:1.9,ID:14.5)
€ 3.00
13-1
0211215128
ref: 13-1
02142-05127
SCREW
€ 1.50
13-2
0156005123
ref: 13-2
01550-0512B
BOLT
€ 2.00
14
0944810004
ref: 14
SPRING
€ 6.00
15-1
0211206087
ref: 15-1
SCREW
€ 2.00
15-2
0211206083
ref: 15-2
02112-0608A
SCREW
€ 1.50
16
0821206201
ref: 16
WASHER
€ 1.50
17-1
1126700B20
ref: 17-1
11267-00B21
LEVER,EXHAUST VALVE NO
€ 5.50
17-2
1126700B21
ref: 17-2
LEVER,EXHAUST VALVE NO.2
€ 5.50
18
0944415008
ref: 18
SPRING
€ 6.00
19
1126801B00
ref: 19
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
20-1
1126600B20
ref: 20-1
11266-00B21
LEVER,EXHAUST VALVE NO
€ 3.50
20-2
1126600B21
ref: 20-2
LEVER,EXHAUST VALVE NO.1
€ 3.50
21
0157005123
ref: 21
BOLT
€ 2.00
22
0916005017
ref: 22
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
23
1267002B40
ref: 23
12670-02B41
GOVERNOR ASSEMBLY,EXHAUST
€ 68.50
24
0926310002
ref: 24
BEARING(10X22X2.8)
€ 8.50
25
1268001820
ref: 25
ACTUATOR,EXHAUST VALVE
€ 47.50
26
0611106003
ref: 26
BALL
€ 1.50
27
1268201B02
ref: 27
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
28
0912005003
ref: 28
SCREW(5X10)
€ 2.00
29
0938019003
ref: 29
CIRCLIP
€ 2.50
30
0918119004
ref: 30
SHIM(19.1X25X0.3)
€ 4.00
31
0916419001
ref: 31
WASHER
€ 7.00
32
0926208005
ref: 32
BEARING(8X22X7)
€ 12.50
33
1268502B40
ref: 33
ROD,EXHAUST VALVE
€ 2.50
34
1268601B00
ref: 34
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
35
1268701B00
ref: 35
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
