FRAME - SEAT (MODEL M/N)

RM80 1990 (L) USA (E03)

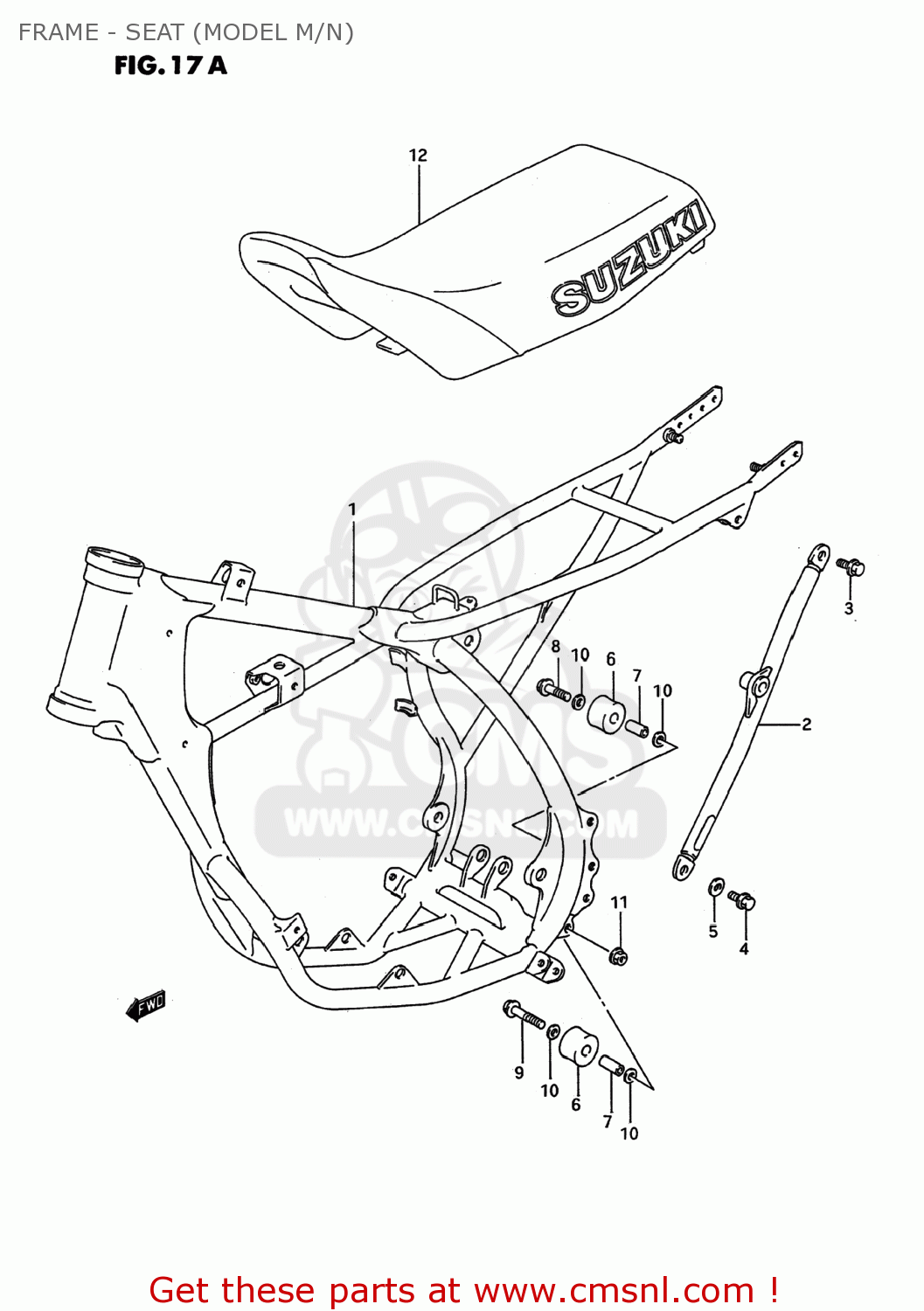

Frame - seat (model m/n) diagram RM80 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

41101038100RP
ref: 1-1
41101-03820-1AZ

FRAME

€ 648.00

1-2

41101038201AZ
ref: 1-2

FRAME SET

€ 648.00

4167002B300RP
ref: 2

TUBE COMP,FRAME SIDE,LEFT

€ 40.00

0910008274
ref: 3

BOLT(8X22)

€ 3.00

0910008267
ref: 4
09100-08284

BOLT

€ 4.00

0916008042
ref: 5
09160-08120

WASHER

€ 2.50

4391135B00
ref: 6

ROLLER,CHAIN CONTROL

€ 14.50

0918008119
ref: 7
09180-08156

SPACER(8.6X12X25.5)

€ 6.50

0910308083
ref: 8

BOLT(8X41)

€ 3.50

0910308170
ref: 9
09103-08339

BOLT

€ 3.50

0821108161
ref: 10
09181-08167

WASHER

€ 2.00

0831931087
ref: 11

NUT

€ 2.50

12-1

4510003B10E83
ref: 12-1

SEAT SET

€ 262.00

12-2

4510003B10K33
ref: 12-2

SEAT SET

€ 262.00
