MUFFLER (MODEL K/L/M/N/P/R/S)

RM80 1990 (L) USA (E03)

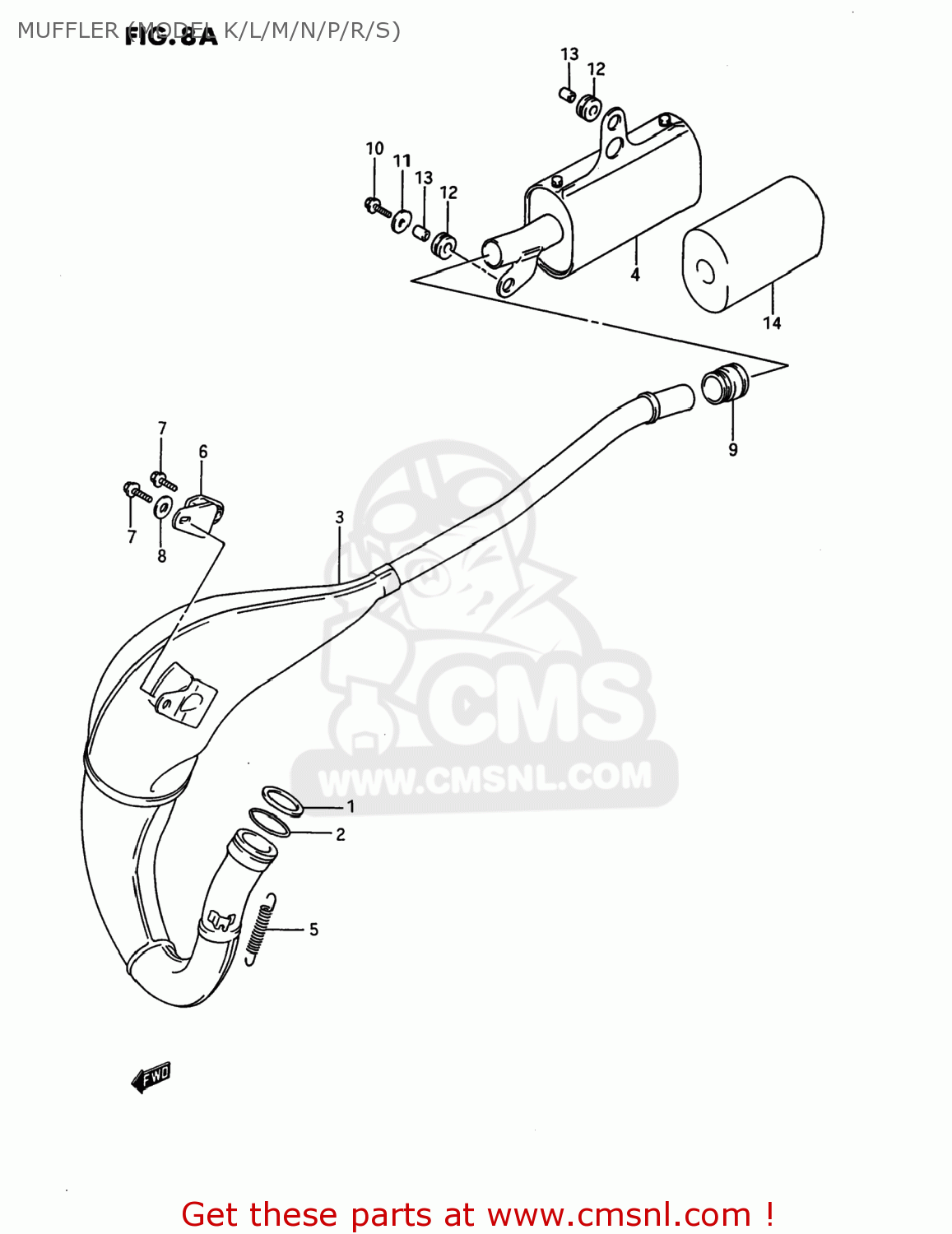

Muffler (model k/l/m/n/p/r/s) diagram RM80 1990 (L) USA (E03)

MUFFLER (MODEL K/L/M/N/P/R/S) RM80 1990 (L) USA (E03)

MUFFLER (MODEL K/L/M/N/P/R/S) RM80 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1417202B40
ref: 1

WASHER,EXH FLANGE

€ 2.00

2

1417102B40
ref: 2

O RING,EXH FLANGE

€ 12.50

3-1

1431002B41H01
ref: 3-1
14310-02B42

BODY,MUFFLER

€ 180.50

3-2

1431002B42H01
ref: 3-2
14310-02B42

BODY,MUFFLER,FIRST

€ 180.50

4

1433002B71H01
ref: 4
14330-03B00

BODY,MUFFLER,SECOND

€ 137.00

5

0944312033
ref: 5

SPRING

€ 21.00

6

1477020400
ref: 6
14770-20401

DAMPER,MUFFLER SUPPORT

€ 10.00

7-1

0154706165
ref: 7-1
01547-0616B

BOLT

€ 2.50

7-2

0154706163
ref: 7-2
01547-0616B

BOLT

€ 2.50

8

0916006079
ref: 8
09160-06052

WASHER(6.5X16X1.2)

€ 2.00

9-1

1477148002
ref: 9-1

CONNECTOR,MUFFLER

€ 8.00

9-2

1477102B00
ref: 9-2
14771-48002

CONNECTOR,MUFFLER

€ 8.00

9-3

1477148002
ref: 9-3

CONNECTOR,MUFFLER

€ 8.00

10

0154706203
ref: 10
01547-0620B

SCREW

€ 2.50

11

0916006027
ref: 11
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

12

0932008037
ref: 12

CUSHION

€ 4.00

13

0918006152
ref: 13
09180-06262

SPACER

€ 3.00

14

1435102B50
ref: 14

SILENCER,MUFFL

€ 55.00
