FRAME - SEAT
RM80H 1983 (D)

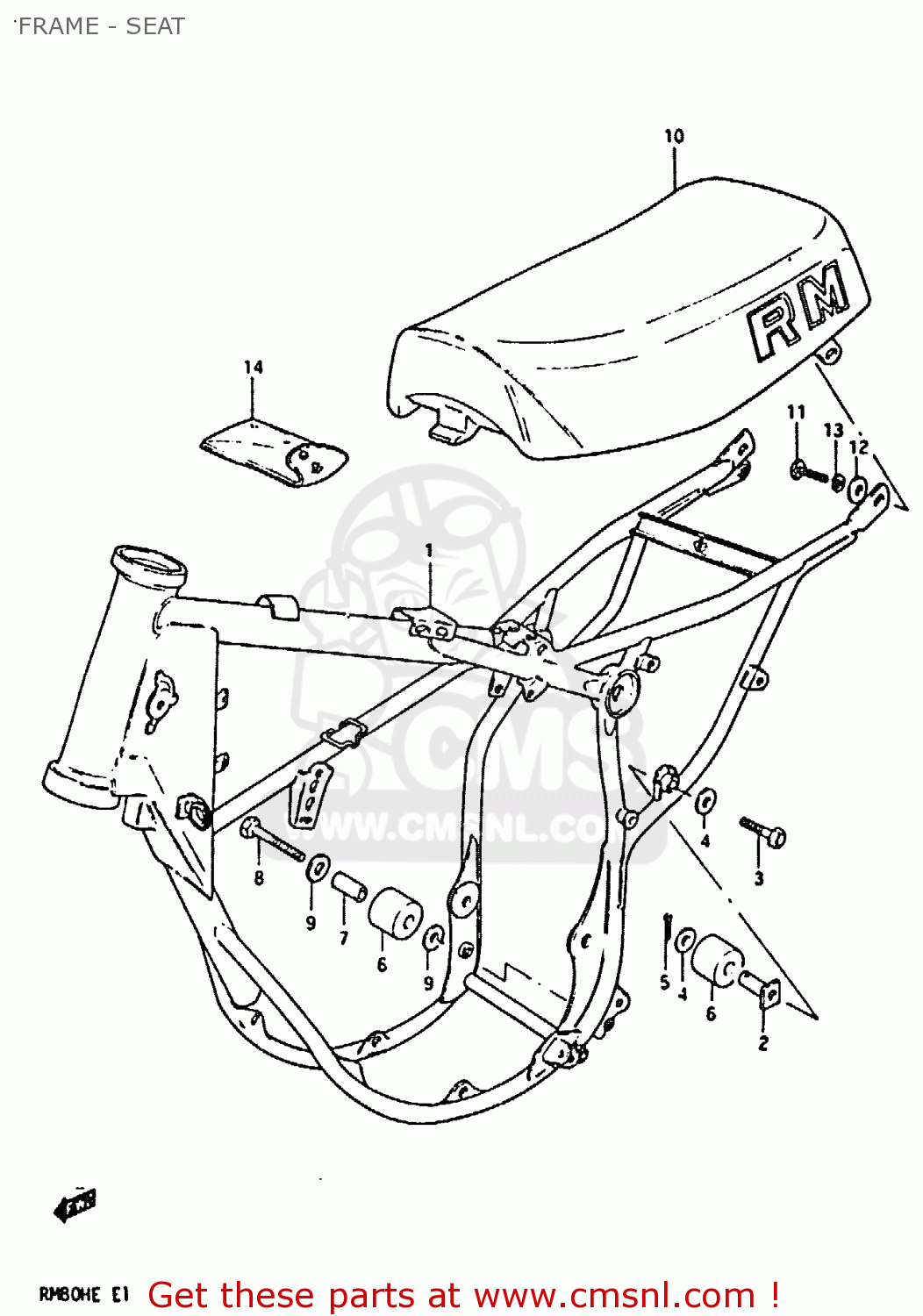

Frame - seat diagram RM80H 1983 (D)
FRAME - SEAT RM80H 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110020513019
ref: 1-1
MODEL D
FRAME (BLACK)
€ 0.00
1-2
411002052019F
ref: 1-2
MODEL E
FRAME (BLUE)
€ 0.00
2
4391020400
ref: 2
BOSS,CHAIN CONTROL
€ 18.00
3
0151706126
ref: 3
BOLT
€ 2.50
4
0832221108
ref: 4
WASHER
€ 2.50
5
0411125208
ref: 5
PIN 25X20
€ 2.00
6
4391120400
ref: 6
ROLLER,CHAIN LENGTH CONTROLLER
€ 19.00
7
0918006093
ref: 7
SPACER (6.5X10.5X29)
€ 2.00
8
0110706406
ref: 8
BOLT
€ 2.00
9
0832221108
ref: 9
WASHER
€ 2.50
10-1
451002051049R
ref: 10-1
MODEL D
SEAT ASSY (BLUE)
€ 176.50
10-2
451002052054G
ref: 10-2
MODEL E
SEAT ASSY (BLUE)
€ 176.50
11
0110706208
ref: 11
BOLT
€ 2.00
12
0916006007
ref: 12
WASHER
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
€ 2.50
14
0980008800
ref: 14
TOOL SET
€ 10.50
