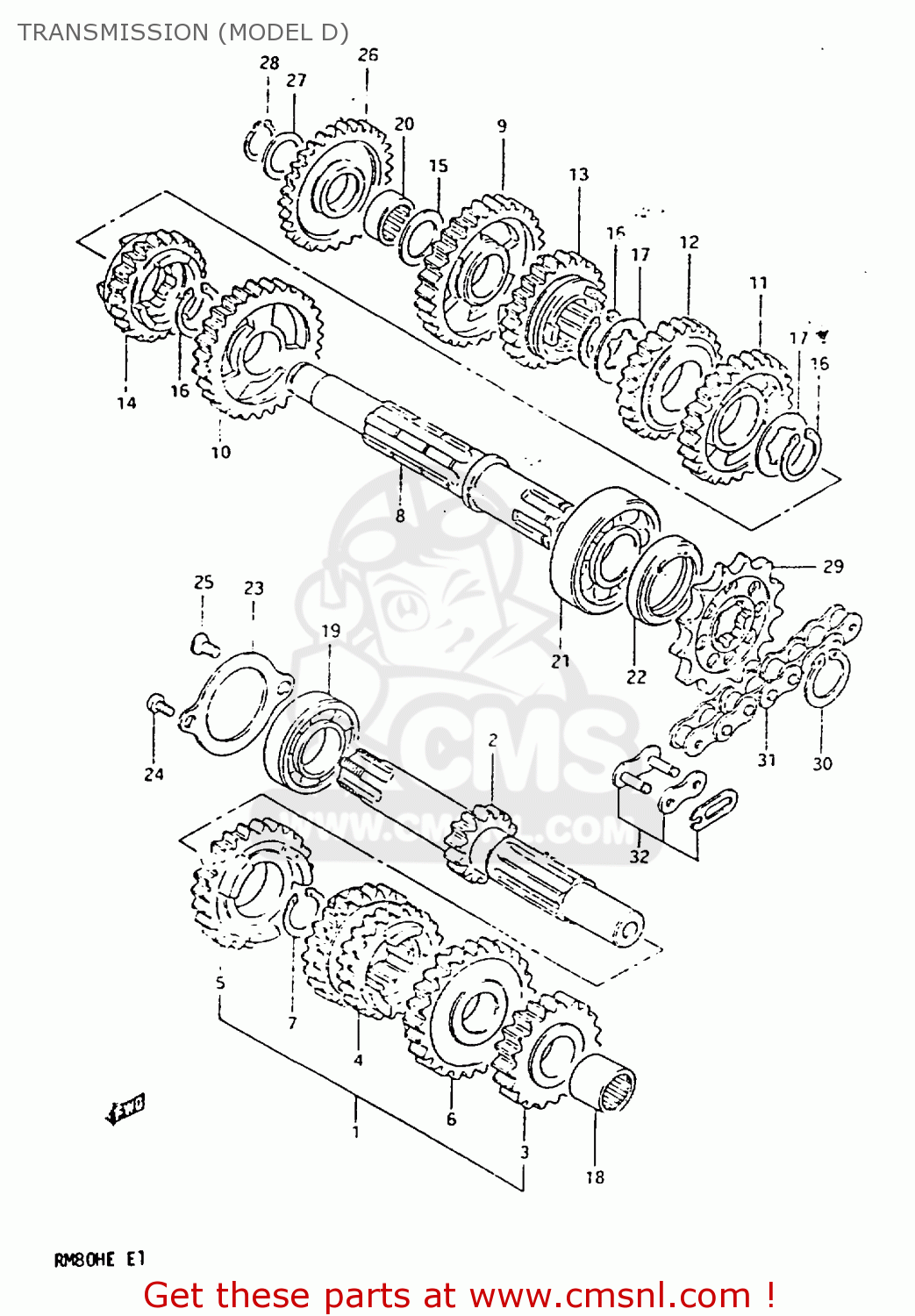

TRANSMISSION (MODEL D)

ref

part #

description

quantity

1

2412020400
ref: 1

SHAFT,COUNTER

€ 196.00

2

2412120401
ref: 2

SHAFT,COUNTER

€ 44.00

3

2422120400
ref: 3

GEAR,SECOND DRIVE

€ 18.00

4

2423120402
ref: 4

GEAR,THIRD/FOURTH DRIVE

€ 31.50

5

2425120400
ref: 5

GEAR,FIFTH DRIVE

€ 23.50

6

2426020401
ref: 6

GEAR,SIXTH DRIVE

€ 20.50

7

0938017007
ref: 7

CIRCLIP

€ 2.00

8

2413120900
ref: 8

SHAFT,DRIVE

€ 105.00

9

2431020401
ref: 9

GEAR,FIRST DRIVEN

€ 23.00

10

2432020400
ref: 10

GEAR,SECOND DRIVEN

€ 19.50

11

2433120900
ref: 11

GEAR,THIRD DRIVEN

€ 22.00

12

2434120400
ref: 12

GEAR,FOURTH DRIVEN

€ 26.00

13

2435120400
ref: 13

GEAR,FIFTH DRIVEN

€ 22.50

14

2436120400
ref: 14

GEAR,SIXTH DRIVEN

€ 42.50

15

0821115251
ref: 15

WASHER

€ 2.00

16

0938020009
ref: 16

CIRCLIP

€ 2.00

17

0916720011
ref: 17

WASHER,LOCK

€ 2.50

18

0926313001
ref: 18

ROLLER BEARING (13X19X1

€ 8.50

19

0926217008
ref: 19

BEARING

€ 14.00

20

0926315019
ref: 20

BEARING(15X21X12)

€ 9.50

21

0811362040
ref: 21

Bearing

€ 28.00

22

0928320038
ref: 22

OIL SEAL (20X35X5)

€ 5.50

23

2474146000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 3.50

24

0211206108
ref: 24

SCREW

€ 1.50

25

0212206108
ref: 25

SCREW

€ 1.50

26

2626120401
ref: 26

GEAR,KICK STARTER IDLER(NT:26)

€ 51.50

27

0821112181
ref: 27

THRUST WASHER

€ 2.50

28

0833131128
ref: 28

CIRCLIP

€ 2.00

29-1

2751120400
ref: 29-1

SPROCKET,ENGINE

€ 16.00

29-2

2751120410
ref: 29-2
OPT

SPROCKET,ENGINE (NT:12)

€ 18.00

29-3

2751120420
ref: 29-3
OPT

SPROCKET,ENGINE

€ 14.00

30

0938020009
ref: 30

CIRCLIP

€ 2.00

31

2760020931
ref: 31

CHAIN ASSEMBLY,DRIVE

€ 46.50

32-1

2762020910
ref: 32-1

JOINT,CHAIN

€ 3.00

32-2

2762012020
ref: 32-2

JOINT ASSEMBLY,CHAIN

€ 7.00
