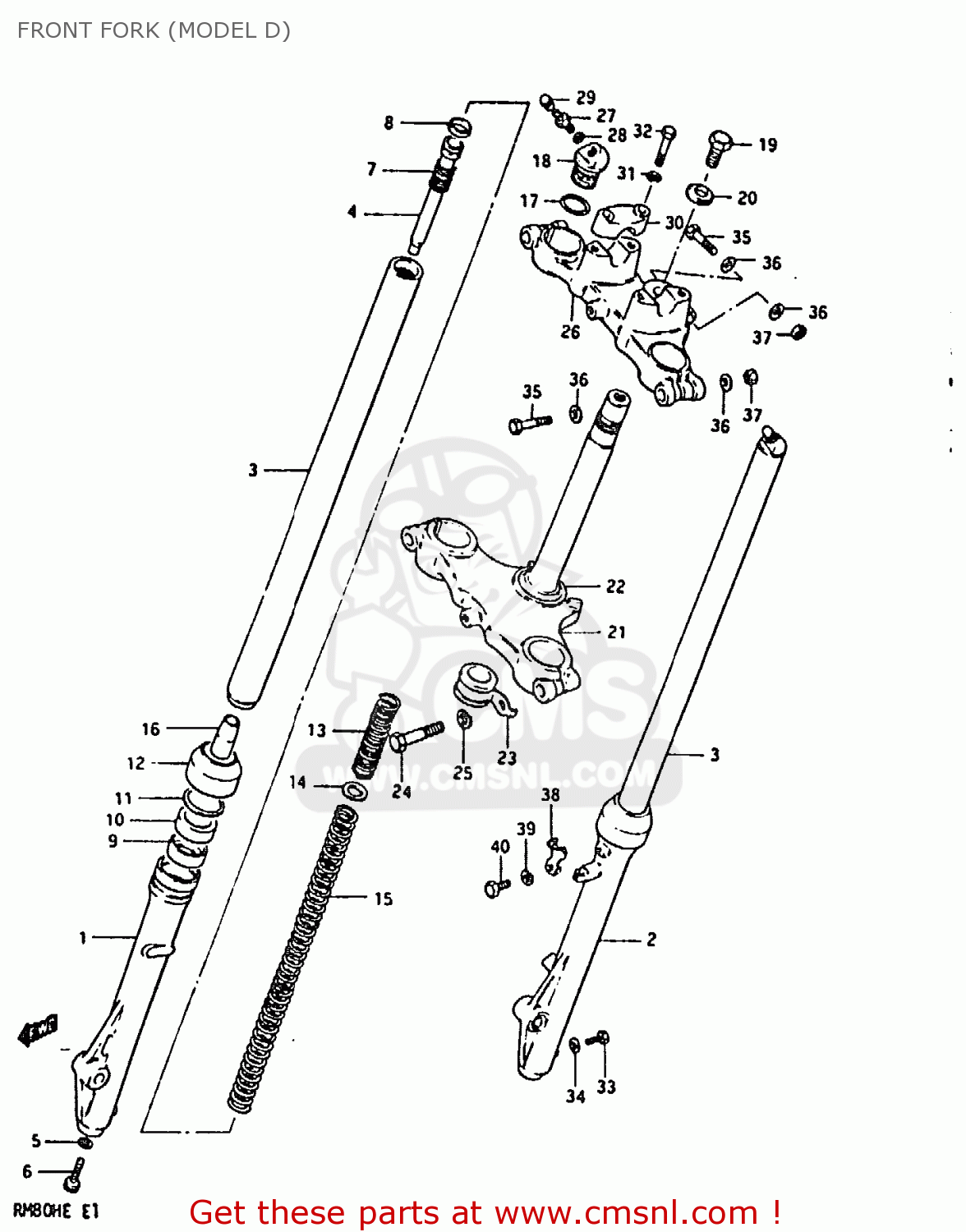

FRONT FORK (MODEL D)

ref

part #

description

quantity

0

5110020510163
ref: 0

FRONT FORK ASSY (YELLOW)

€ 0.00

1

5113020510163
ref: 1

TUBE, OUTER RH (YELLOW)

€ 162.00

2

5114020510163
ref: 2

TUBE, OUTER LH (YELLOW)

€ 0.00

3

5111020510
ref: 3

TUBE, INNER

€ 0.00

4

5114620510
ref: 4

PIPE, SEAT

€ 55.00

5

5114831030
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117720500
ref: 7

SPRING,FORK REBOUND

€ 2.50

8

5119645200
ref: 8

RING,PISTON

€ 5.50

9

5116845031
ref: 9

SPACER,SEAL

€ 5.00

10

5115334200
ref: 10

OIL SEAL,FRONT FORK

€ 14.00

11

5115645440
ref: 11

CIRCLIP,FORK OIL SEAL

€ 3.50

12

5157134200
ref: 12

BOOT

€ 19.50

13

5117120510
ref: 13

SPRING A

€ 3.50

14

5119220510
ref: 14

SPRING,JOINT

€ 2.00

15

5118420510
ref: 15

SPRING B

€ 25.00

16

5119520510
ref: 16

PIECE, OIL LOCK

€ 16.00

17

5118120500
ref: 17

O RING

€ 0.00

18

5135120510
ref: 18

BOLT

€ 14.50

19

5135220510
ref: 19

BOLT

€ 7.50

20

5135620510
ref: 20

WASHER

€ 6.00

21

5141020510291
ref: 21

STEM, STEERING (BLACK)

€ 153.50

22

5162133001
ref: 22

RACE,STEERING OUTER LWR

€ 10.00

23

5145220510
ref: 23

CLIP

€ 6.50

24

0110412408
ref: 24

BOLT

€ 3.00

25

0832121128
ref: 25

WASHER,LOCK 12

€ 2.50

26

5131120510291
ref: 26

STEM HEAD, STEERING (BLACK)

€ 88.00

27

5129345440
ref: 27

VALVE,AIR

€ 17.00

28

5111745440
ref: 28

O-RING

€ 2.50

29

5129440400
ref: 29

CAP,VALVE AIR

€ 4.00

30

5621127200291
ref: 30

HOLDER,HANDLE UPR

€ 13.50

31

0832121088
ref: 31

LOCK WASHER

€ 2.00

32

0110708358
ref: 32

BOLT

€ 3.50

33

0110706088
ref: 33

BOLT

€ 2.50

34

5118331030
ref: 34

GASKET,DRAIN,PLUG (NAS)

€ 4.00

35

5135320510
ref: 35

BOLT (8*55)

€ 0.00

36

0832221088
ref: 36

WASHER

€ 2.00

37

0831012088
ref: 37

NUT

€ 2.00

38

5157420510
ref: 38

HOLDER

€ 11.50

39

0832121068
ref: 39

LOCK WASHER

€ 2.50

40

0110706128
ref: 40

BOLT

€ 2.00
