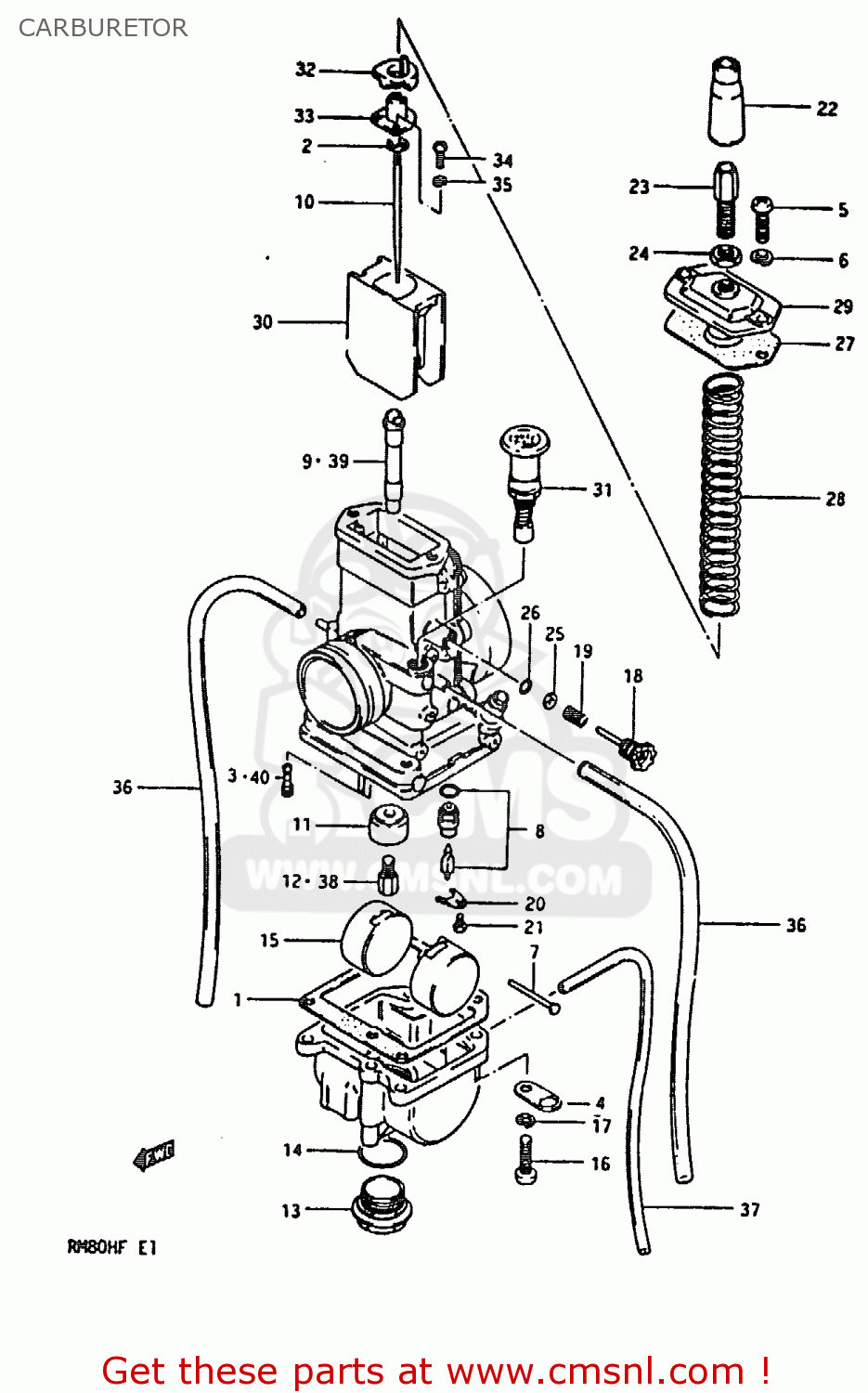

CARBURETOR

ref

part #

description

quantity

0

1320020911
ref: 0

CARBURETOR ASSEMBLY (VM26)

€ 322.00

1

1325129630
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

2

1339410010
ref: 2

CLIP

€ 4.50

3

0949230003
ref: 3

JET

€ 8.50

4

1369336500
ref: 4

PLATE,CARBURETOR

€ 3.50

5

0211204128
ref: 5

SCREW

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

1325492311
ref: 7

PIN,FLOAT

€ 2.00

8

1337046900
ref: 8

VALVE ASSY,NEEDLE

€ 54.50

9

0949400466
ref: 9

JET,NEEDLE

€ 0.00

10

1338346900
ref: 10

NEEDLE,JET(5DP39-4)

€ 11.50

11

1333128710
ref: 11

RING

€ 8.50

12

0949134002
ref: 12

JET,MAIN(170)

€ 7.00

13

1324746900
ref: 13

PLUG

€ 12.50

14

1324629630
ref: 14

O RING

€ 5.00

15

1325229630
ref: 15

FLOAT

€ 22.50

16

0211204168
ref: 16

SCREW

€ 1.00

17

0832121048
ref: 17

LOCK WASHER

€ 2.00

18

1326716700
ref: 18

ADJUSTER,THROTTLE STOP

€ 11.00

19

1326835010
ref: 19

SPRING

€ 3.00

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204088
ref: 21

SCREW

€ 1.50

22

1368133010
ref: 22

CAP,CABLE ADJUSTER

€ 8.00

23

1357741612
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1329135010
ref: 25

WASHER

€ 2.50

26

1329533010
ref: 26

O RING

€ 4.50

27

1326616700
ref: 27

GASKET,CARBURETOR TOP (NAS)

€ 6.00

28

1357316700
ref: 28

SPRING

€ 6.00

29

1326116700
ref: 29

CAP,CARBURETOR TOP

€ 14.50

30

1355120910
ref: 30

VALVE,THROTTLE

€ 56.50

31

1340020910
ref: 31

VALVE ASSEMBLY,STARTER

€ 36.00

32

1362916700
ref: 32

RING

€ 11.50

33

1339816700
ref: 33

JOINT

€ 7.00

34

0211203108
ref: 34

SCREW

€ 1.50

35

0832121038
ref: 35

LOCK WASHER

€ 1.50

36

1368305310
ref: 36

HOSE

€ 5.50

37

1368416710
ref: 37

HOSE

€ 7.50

37

1368416710
ref: 37

HOSE

€ 7.50

38-1

0949130003
ref: 38-1
OPT

JET

€ 12.00

38-2

0949132002
ref: 38-2
OPT

JET,MAIN(160)

€ 6.50

38-3

0949136003
ref: 38-3
OPT

JET

€ 15.00

38-4

0949138003
ref: 38-4
OPT

JET

€ 10.00

38-5

0949140004
ref: 38-5
OPT

JET

€ 11.50

38-6

0949142001
ref: 38-6
OPT

JET,MAIN (210)

€ 11.00

39-1

0949400456
ref: 39-1
OPT

JET,NEEDLE

€ 0.00

39-2

0949400457
ref: 39-2
OPT

JET,NEEDLE

€ 0.00

39-3

0949400461
ref: 39-3
OPT

JET,NEEDLE

€ 0.00

40-1

0949225005
ref: 40-1
OPT

JET,PILOT(25)

€ 6.50

40-2

0949235004
ref: 40-2
OPT

JET,PILOT(35)

€ 7.50

all assemblies
