FRONT FORK
RM80H 1985 (F)

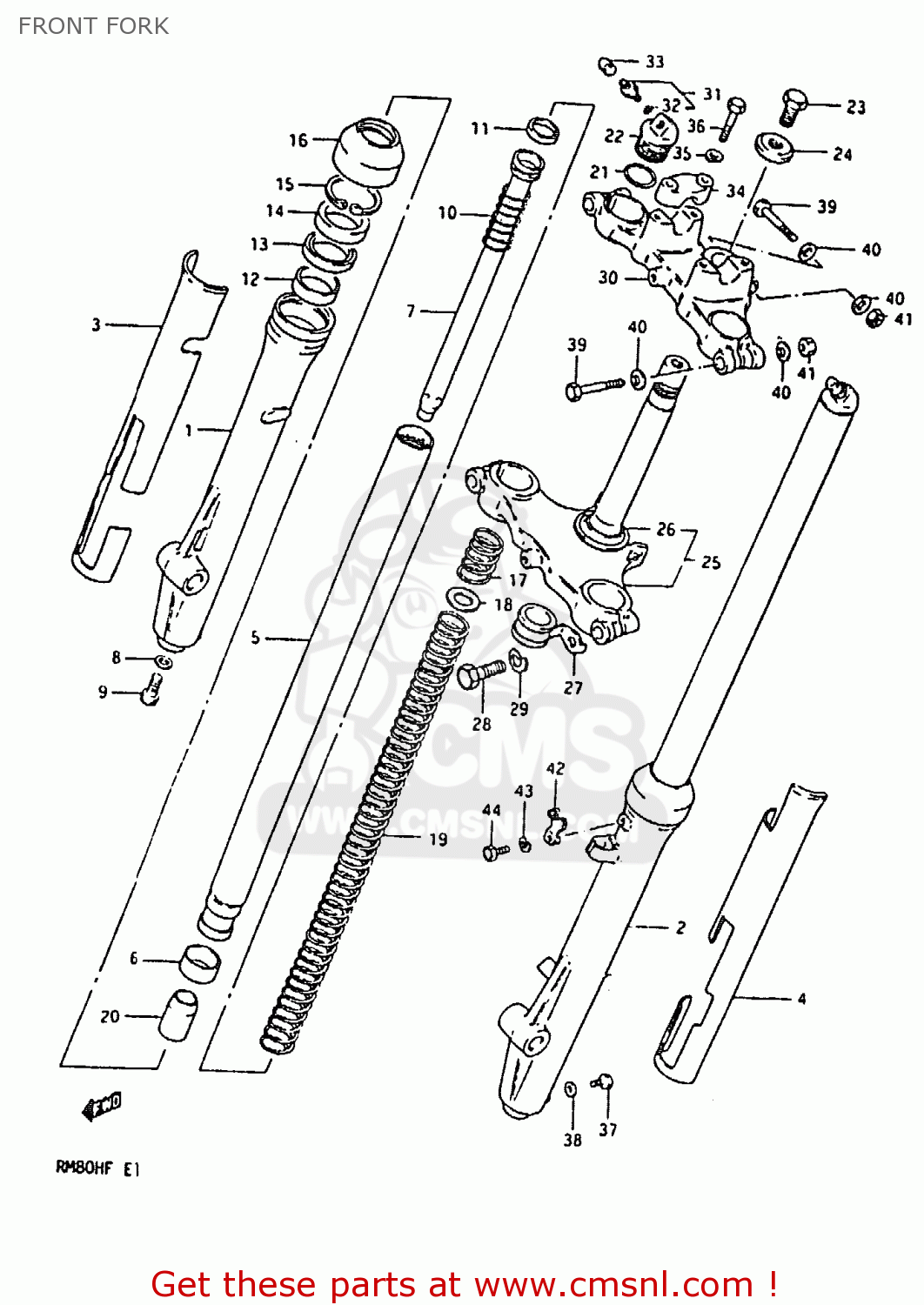

Front fork diagram RM80H 1985 (F)
FRONT FORK RM80H 1985 (F)
×
prices are in EUR
ref
part #
description
quantity
0
5110020520
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113020520
ref: 1
TUBE, OUTER RH
€ 280.00
2
5114020520
ref: 2
TUBE, OUTER LH
€ 89.50
3
5120120520
ref: 3
PROTECTOR, RH
€ 27.50
4
5120220520
ref: 4
PROTECTOR, LH
€ 27.00
5
5111020520
ref: 5
TUBE, INNER
€ 0.00
6
5112133300
ref: 6
PISTON
€ 10.50
7
5114620520
ref: 7
PIPE, SEAT
€ 47.00
8
5114831030
ref: 8
GASKET (NAS)
€ 4.00
9
5114748130
ref: 9
BOLT(8X27)
€ 3.50
10
5117720500
ref: 10
SPRING,FORK REBOUND
€ 2.50
11
5119645200
ref: 11
RING,PISTON
€ 5.50
12
5115233300
ref: 12
BUSH,GUIDE
€ 11.50
13
5116845031
ref: 13
SPACER,SEAL
€ 5.00
14
5115320520
ref: 14
OIL SEAL,FRONT FORK
€ 14.00
15
5115645440
ref: 15
CIRCLIP,FORK OIL SEAL
€ 3.50
16
5157120520
ref: 16
DUST SEAL,FR FORK
€ 19.50
17
5117120510
ref: 17
SPRING A
€ 3.50
18
5119220510
ref: 18
SPRING,JOINT
€ 2.00
19
5118420510
ref: 19
SPRING B
€ 25.00
20
5119520510
ref: 20
PIECE, OIL LOCK
€ 16.00
21
5118120500
ref: 21
O RING
€ 0.00
22
5135120500
ref: 22
BOLT
€ 42.50
23
5135220520
ref: 23
BOLT
€ 7.50
24
5135620520
ref: 24
WASHER
€ 6.00
25
5141020520126
ref: 25
STEM, STEERING (PEARL METALLIC)
€ 0.00
26
5162133001
ref: 26
RACE,STEERING OUTER LWR
€ 10.00
27
5145220500
ref: 27
CLIP
€ 0.00
28
0110412408
ref: 28
BOLT
€ 3.00
29
0832121128
ref: 29
WASHER,LOCK 12
€ 2.50
30
5131120520
ref: 30
STEM HEAD, STEERING
€ 68.00
31
5129345440
ref: 31
VALVE,AIR
€ 17.00
32
5111745400
ref: 32
O-RING (D:3.8 ID:19)
€ 2.50
33
5129440400
ref: 33
CAP,VALVE AIR
€ 4.00
34
5621127100
ref: 34
HOLDER,HANDLEBAR
€ 12.50
35
0832121088
ref: 35
LOCK WASHER
€ 2.00
36
0110708358
ref: 36
BOLT
€ 3.50
37
0910006011
ref: 37
BOLT(6X8)
€ 2.50
38
5118331030
ref: 38
GASKET,DRAIN,PLUG (NAS)
€ 4.00
39
5135320520
ref: 39
BOLT
€ 0.00
40
0832221088
ref: 40
WASHER
€ 2.00
41
0831012088
ref: 41
NUT
€ 2.00
42
5157420520
ref: 42
HOLDER
€ 11.50
43
0832121068
ref: 43
LOCK WASHER
€ 2.50
44
0110706128
ref: 44
BOLT
€ 2.00
