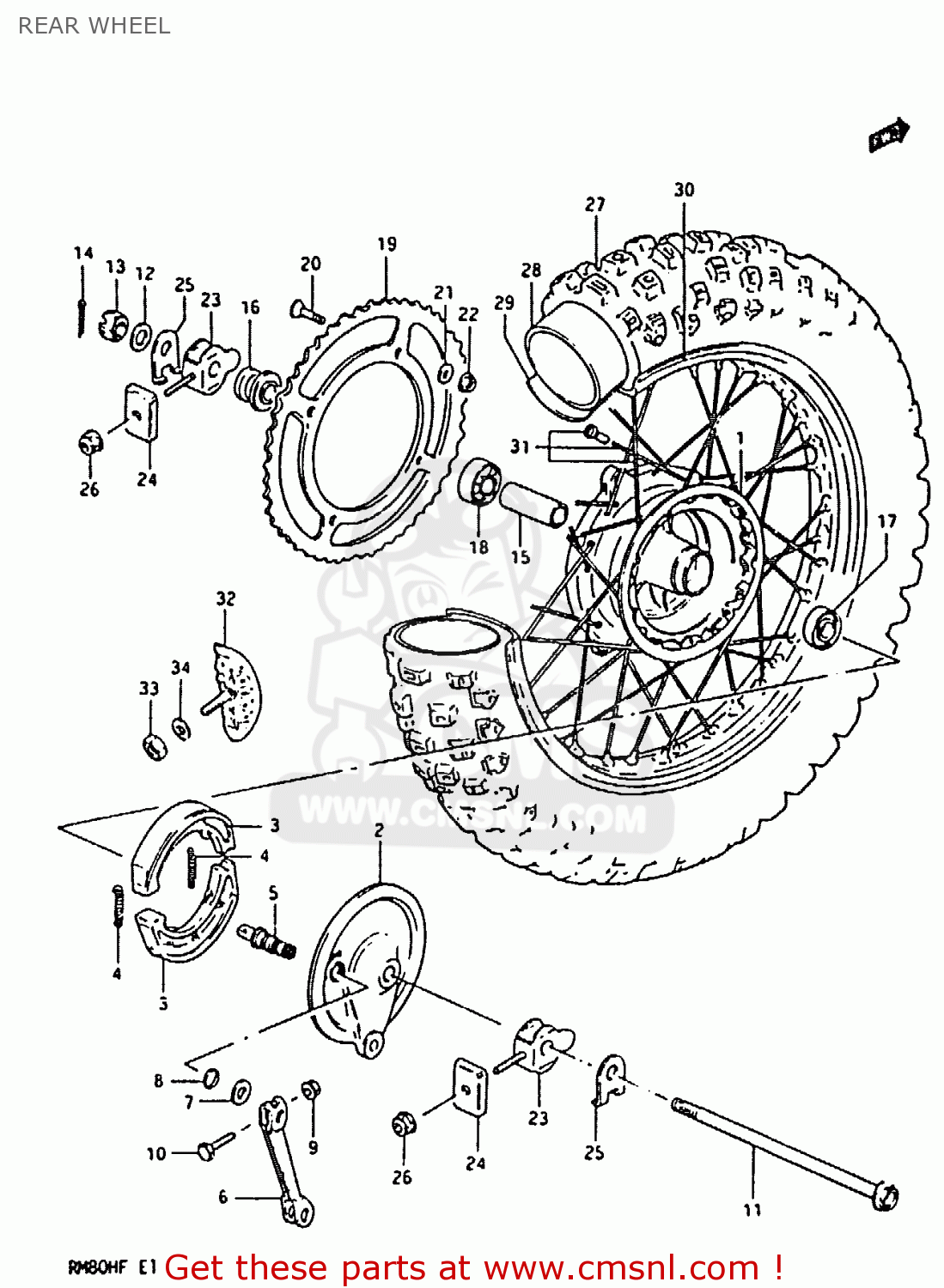

REAR WHEEL

ref

part #

description

quantity

1

6411020522
ref: 1

DRUM, REAR HUB

€ 112.00

2

6421020521
ref: 2

PANEL, REAR HUB

€ 103.00

3

5441043010
ref: 3

SHOE,BRAKE

€ 19.00

4

6443020500
ref: 4

SPRING, BRAKE SHOE

€ 6.50

5

5444102400
ref: 5

CAM,FRONT BRAKE

€ 9.50

6

6445120400
ref: 6

LEVER,RR BRAKE CAM

€ 234.50

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0928012001
ref: 8

O RING(D:2.5,ID:11.4)

€ 2.50

9

0915906017
ref: 9

NUT

€ 2.50

10

0151706308
ref: 10

BOLT

€ 2.00

11

6471120521
ref: 11

AXLE,REAR

€ 23.00

12

0916014033
ref: 12

WASHER

€ 3.00

13

0831431148
ref: 13

NUT

€ 2.50

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

0918015069
ref: 15

SPACER(15.3X21.7X77)

€ 13.00

16

6474020521
ref: 16

SPACER,L

€ 16.00

17

0812360027
ref: 17

BEARING

€ 16.00

18

0812362027
ref: 18

BEARING

€ 14.50

19-1

6451120910
ref: 19-1

SPROCKET, REAR

€ 77.00

19-2

6451120560
ref: 19-2
OPT

SPROCKET, REAR

€ 0.00

19-3

6451120570
ref: 19-3
OPT

SPROCKET, REAR

€ 0.00

19-4

6451120950
ref: 19-4
OPT

SPROCKET, REAR

€ 173.50

20

0912008004
ref: 20

SCREW(8X33.5)

€ 3.00

21

0832221088
ref: 21

WASHER

€ 2.00

22

0831931088
ref: 22

NUT

€ 2.50

23

6141005250
ref: 23

ADJUSTER,CHAIN

€ 9.50

24

6142126502
ref: 24

ADJUSTER,CHAIN

€ 4.00

25

6471205251
ref: 25

WASHER

€ 3.50

26

0831931088
ref: 26

NUT

€ 2.50

27

6510020560
ref: 27
IRC

TIRE, REAR (3.50*18)

€ 0.00

28

6520033030
ref: 28

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

29

5526111010
ref: 29

PROTECTOR,INNER TUBE

€ 3.50

30

6531120530
ref: 30

RIM, WHEEL (1.85*18 AL) GOLD

€ 0.00

31

6532020510
ref: 31

SPOKE ASSY,RR WHEEL

€ 30.50

32

6527014300
ref: 32

STOPPER,BEAD

€ 26.00

33

0831012088
ref: 33

NUT

€ 2.00

34

0832211088
ref: 34

WASHER

€ 2.00

all assemblies
