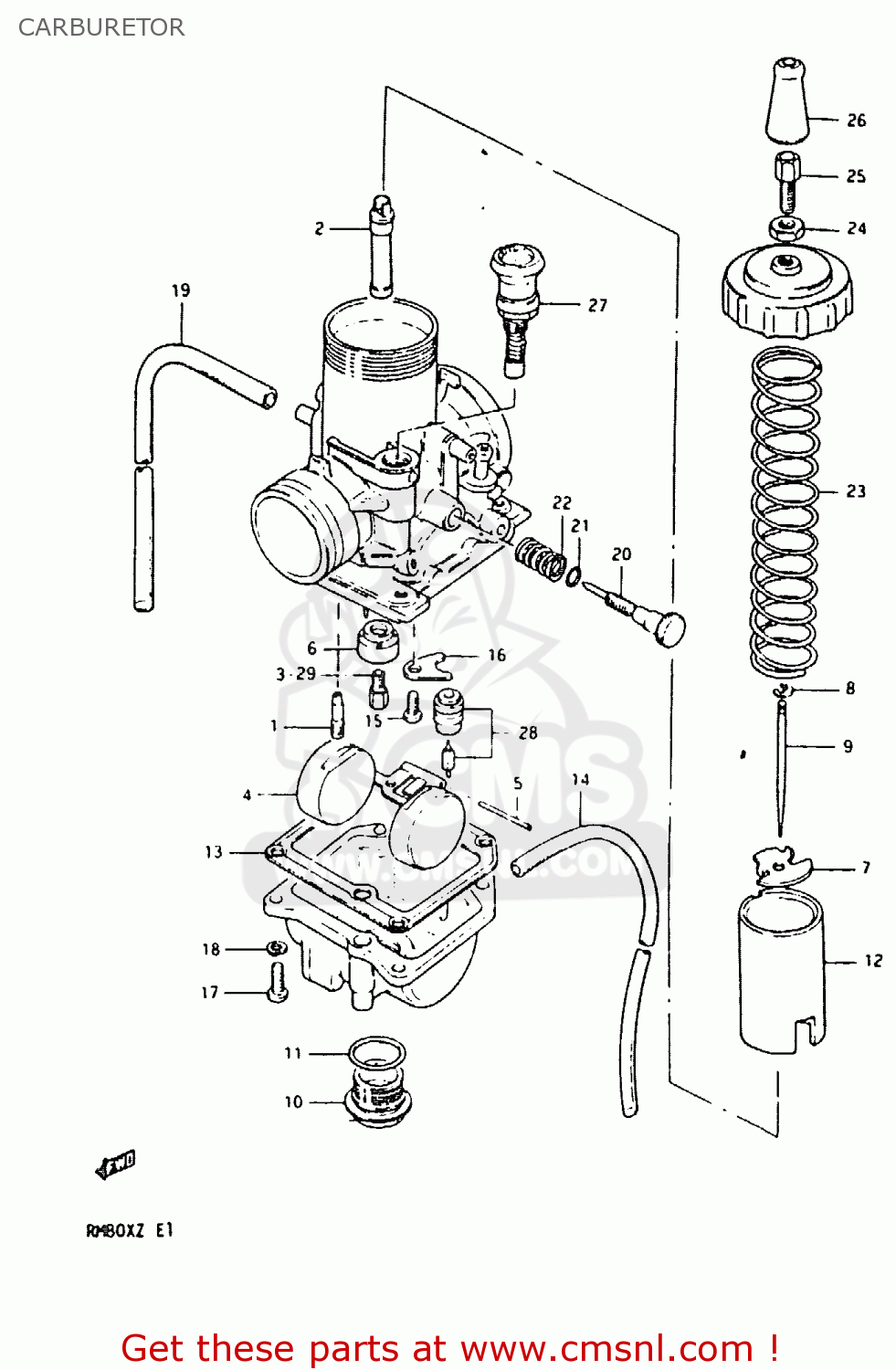

CARBURETOR

ref

part #

description

quantity

0

1320020400
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

0949245009
ref: 1

JET,PILOT(45)

€ 8.00

2

0949400218
ref: 2

JET,NEEDLE

€ 0.00

3

0949128002
ref: 3

JET

€ 6.50

4

1325229630
ref: 4

FLOAT

€ 22.50

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1333128710
ref: 6

RING

€ 8.50

7

1358129500
ref: 7

PLATE,THROTTLE VALVE

€ 4.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346900
ref: 9

NEEDLE,JET(5DP39-4)

€ 11.50

10

1324746900
ref: 10

PLUG

€ 12.50

11

1324629630
ref: 11

O RING

€ 5.00

12

1355120400
ref: 12

VALVE,THROTTLE

€ 44.50

13

1325129630
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

14

1368420410
ref: 14

HOSE

€ 7.50

15

0211204088
ref: 15

SCREW

€ 1.50

16

1337339110
ref: 16

PLATE

€ 6.50

17

0211204168
ref: 17

SCREW

€ 1.00

18

0832121048
ref: 18

LOCK WASHER

€ 2.00

19

1368420400
ref: 19

HOSE

€ 5.50

20

1326746010
ref: 20

ADJUSTER

€ 10.00

21

1327802340
ref: 21

O RING

€ 1.50

22

1326846010
ref: 22

SPRING

€ 3.50

23

1357330900
ref: 23

SPRING,THROTTLE VALVE

€ 6.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357741612
ref: 25

ADJUSTER,CABLE

€ 8.00

26

1368116600
ref: 26

CAP,RUBBER

€ 7.00

27

1340020400
ref: 27

VALVE ASSEMBLY,STARTER

€ 29.00

28

1337029500
ref: 28

VALVE ASSEMBLY,NEEDLE

€ 54.50

29-1

0949126003
ref: 29-1
OPT

JET,MAIN(130)

€ 9.00

29-2

0949127005
ref: 29-2
OPT

JET

€ 10.50

29-3

0949129002
ref: 29-3
OPT

JET,MAIN(145)

€ 8.00

29-4

0949130003
ref: 29-4
OPT

JET

€ 12.00

29-5

0949131005
ref: 29-5
OPT

JET,MAIN(155)

€ 8.00

all assemblies
