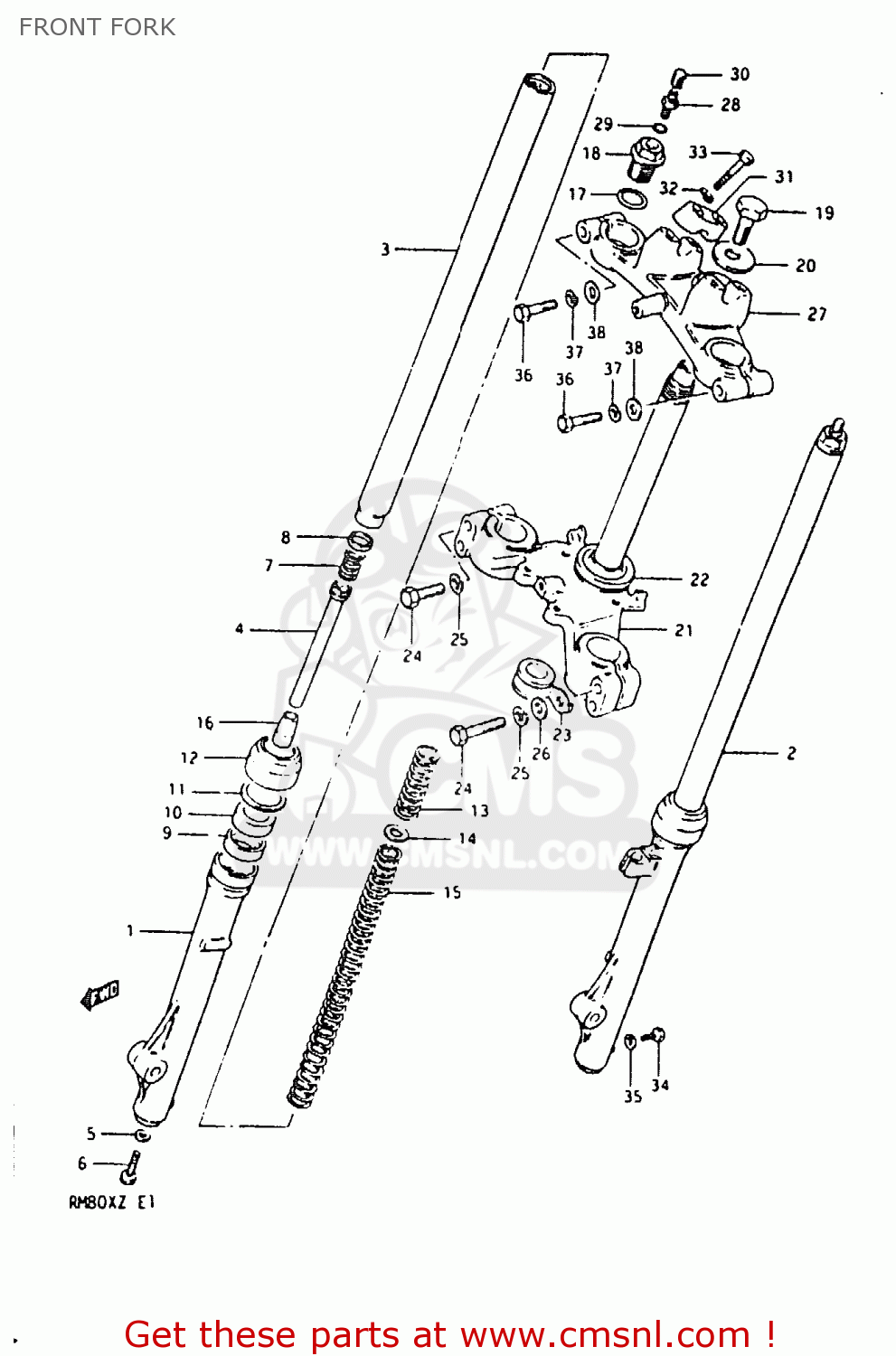

FRONT FORK

ref

part #

description

quantity

0

511002040008C
ref: 0

DAMPER SET

€ 0.00

1

5113020400
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114020400
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5111020400
ref: 3

TUBE,FORK,INNER

€ 0.00

4

5114620400
ref: 4

CYLINDER,FRONT FORK

€ 0.00

5

5114831030
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117736030
ref: 7

SPRING,REBOUND

€ 4.50

8

5119633130
ref: 8

RING,PISTON

€ 7.50

9

5116820400
ref: 9

SPACER,SEAL

€ 0.00

10

5115348420
ref: 10

SEAL,OIL

€ 11.00

11

5115620400
ref: 11

CIRCLIP,FORK OIL SEAL

€ 0.00

12

5117320400
ref: 12

SEAL,DUST

€ 9.00

13

5117120400
ref: 13

SPRING,FRONT FORK

€ 0.00

14

5117236331
ref: 14

SEAT,SPRING

€ 2.50

15

5118420400
ref: 15

SPRING,FRONT FORK

€ 0.00

16

5119548000
ref: 16

PIECE,OIL LOCK

€ 8.50

17

5118125030
ref: 17

O RING

€ 3.00

18

5135120400
ref: 18

BOLT,FORK INNER TUBE

€ 51.00

19

5135248000
ref: 19

BOLT,STEERING STEM HEAD

€ 12.50

20

5135620300
ref: 20

WASHER

€ 0.00

21

514102040008C
ref: 21

STEM,STEERING

€ 170.00

22

5162133001
ref: 22

RACE,STEERING OUTER LWR

€ 10.00

23

5145520400
ref: 23

GUIDE,CABLE

€ 16.00

24

0110710358
ref: 24

BOLT,M10X1.25X

€ 2.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0832211108
ref: 26

WASHER

€ 2.50

27

513112040008C
ref: 27

HEAD,STEERING STEM

€ 0.00

28

5129320400
ref: 28

VALVE,FRONT FORK AIR

€ 15.00

29

5111745440
ref: 29

O-RING

€ 2.50

30

5129420400
ref: 30

CAP

€ 3.50

31

562114668008C
ref: 31

HOLDER,HANDLEBAR

€ 9.50

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0110708358
ref: 33

BOLT

€ 3.50

34

0110706088
ref: 34

BOLT

€ 2.50

35

5118331030
ref: 35

GASKET,DRAIN,PLUG (NAS)

€ 4.00

36

0110708408
ref: 36

BOLT 8X40

€ 3.00

37

0832121088
ref: 37

LOCK WASHER

€ 2.00

38

0832221088
ref: 38

WASHER

€ 2.00
