MUFFLER
RM80X 1982 (Z)

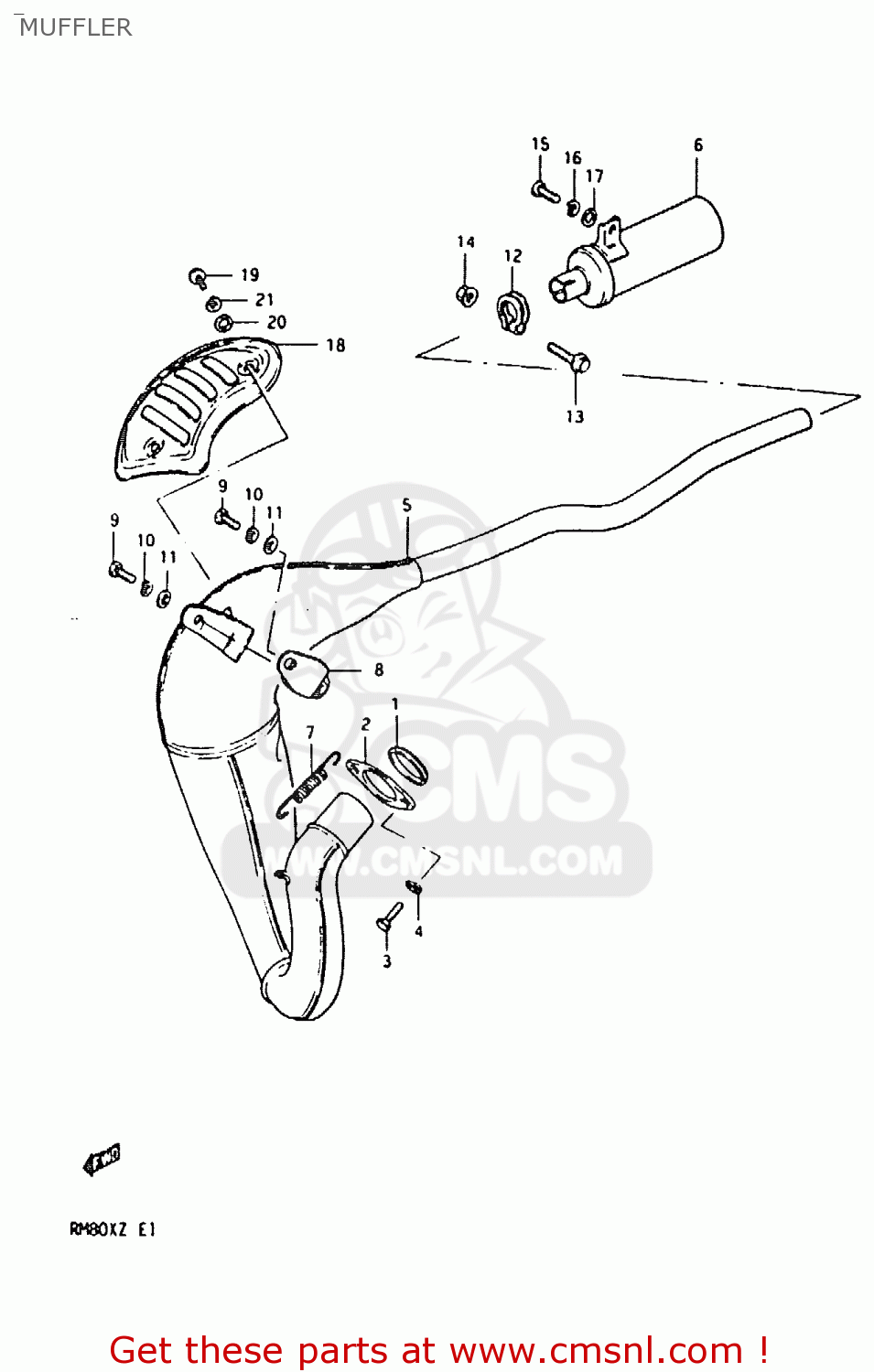

Muffler diagram RM80X 1982 (Z)
MUFFLER RM80X 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
1418120400
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.00
2
1418220401
ref: 2
CLAMP,EXHAUST PIPE
€ 4.00
3
0110706168
ref: 3
BOLT, UPPER
€ 3.00
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
1431020401
ref: 5
BODY,MUFFLER
€ 237.00
6
1433020400
ref: 6
BODY,MUFFLER
€ 219.00
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477020400
ref: 8
DAMPER,MUFFLER SUPPORT
€ 10.00
9
0110706128
ref: 9
BOLT
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
€ 2.50
11
0832221068
ref: 11
WASHER
€ 2.00
12
1477220400
ref: 12
CLAMP,EXHAUST
€ 2.50
13
0151706258
ref: 13
BOLT
€ 2.50
14
0831626068
ref: 14
NUT 6MM
€ 2.00
15
0110706128
ref: 15
BOLT
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
WASHER
€ 2.00
18
1478120401
ref: 18
COVER,MUFFLER
€ 30.50
19
0211206108
ref: 19
SCREW
€ 1.50
20
0832221068
ref: 20
WASHER
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
€ 2.50
