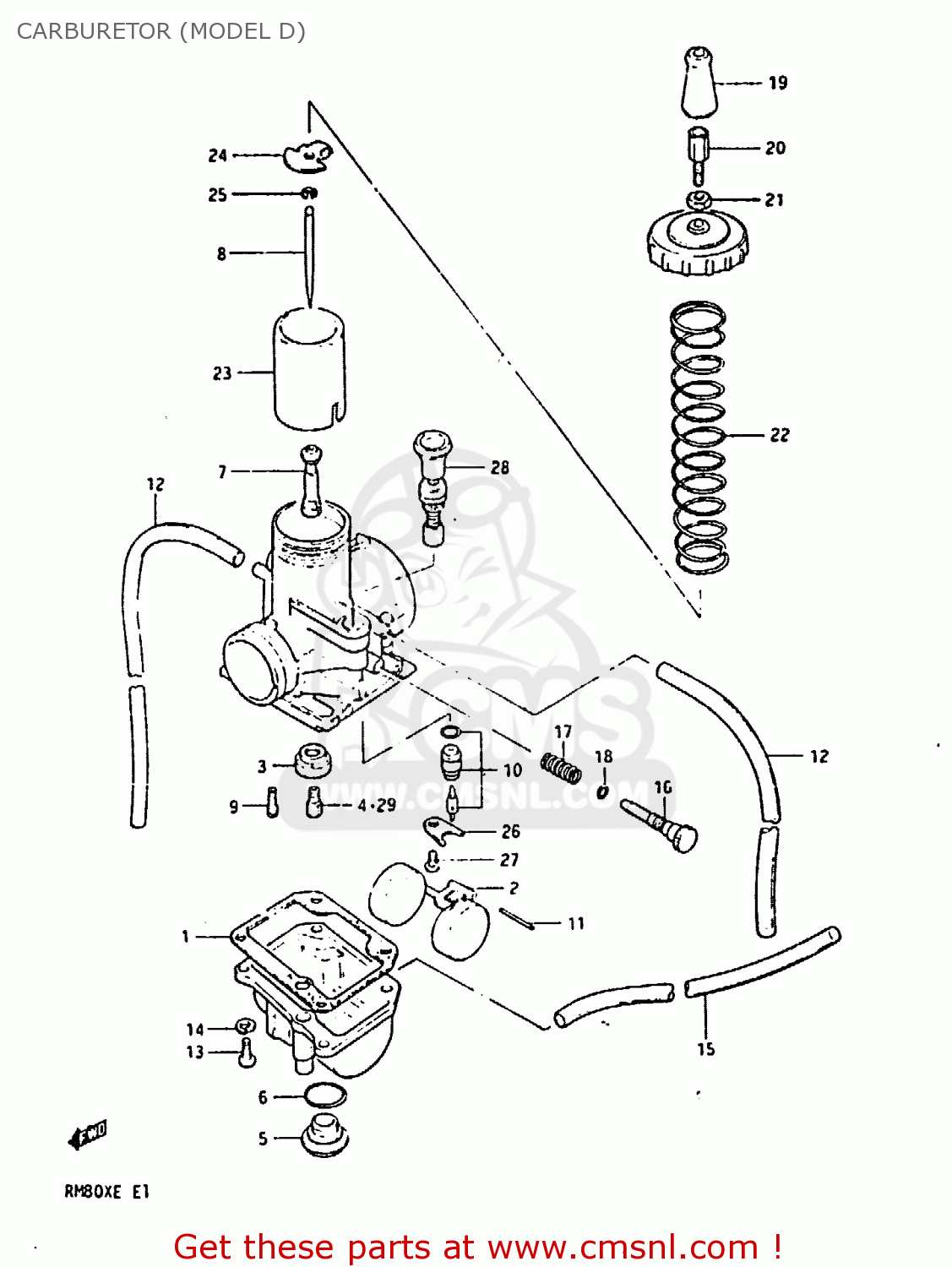

CARBURETOR (MODEL D)

ref

part #

description

quantity

0

1320020900
ref: 0
MODEL D

CARBURETOR ASSEMBLY (VM26)

€ 250.50

1

1325129630
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

2

1325229630
ref: 2

FLOAT

€ 22.50

3

1333128710
ref: 3

RING

€ 8.50

4

0949136003
ref: 4

JET

€ 15.00

5

1324746900
ref: 5

PLUG

€ 12.50

6

1324629630
ref: 6

O RING

€ 5.00

7

0949400399
ref: 7

JET,NEEDLE

€ 27.00

8

1338320900
ref: 8
5DL1-2

NEEDLE,JET

€ 12.00

9

0949230003
ref: 9

JET

€ 8.50

10

1337039161
ref: 10

VALVE ASSEMBLY,NEEDLE

€ 54.50

11

1325401010
ref: 11

PIN,FLOAT

€ 3.00

12

1368420400
ref: 12

HOSE

€ 5.50

13

0211204168
ref: 13

SCREW

€ 1.00

14

0832121048
ref: 14

LOCK WASHER

€ 2.00

15

1368420410
ref: 15

HOSE

€ 7.50

16

1326746010
ref: 16

ADJUSTER

€ 10.00

17

1326846010
ref: 17

SPRING

€ 3.50

18

1327802340
ref: 18

O RING

€ 1.50

19

1368116600
ref: 19

CAP,RUBBER

€ 7.00

20

1357741612
ref: 20

ADJUSTER,CABLE

€ 8.00

21

1366116600
ref: 21

NUT

€ 5.00

22

1357330900
ref: 22

SPRING,THROTTLE VALVE

€ 6.00

23

1355120400
ref: 23

VALVE,THROTTLE

€ 44.50

24

1358129500
ref: 24

PLATE,THROTTLE VALVE

€ 4.50

25

1339410010
ref: 25

CLIP

€ 4.50

26

1337339110
ref: 26

PLATE

€ 6.50

27

0211204088
ref: 27

SCREW

€ 1.50

28

1340020410
ref: 28

VALVE ASSEMBLY,STARTER

€ 29.00

29-1

0949132002
ref: 29-1
OPT

JET,MAIN(160)

€ 6.50

29-2

0949134002
ref: 29-2
OPT

JET,MAIN(170)

€ 7.00

29-3

0949138003
ref: 29-3
OPT

JET

€ 10.00

29-4

0949140004
ref: 29-4
OPT

JET

€ 11.50

29-5

0949142001
ref: 29-5
OPT

JET,MAIN (210)

€ 11.00

all assemblies
