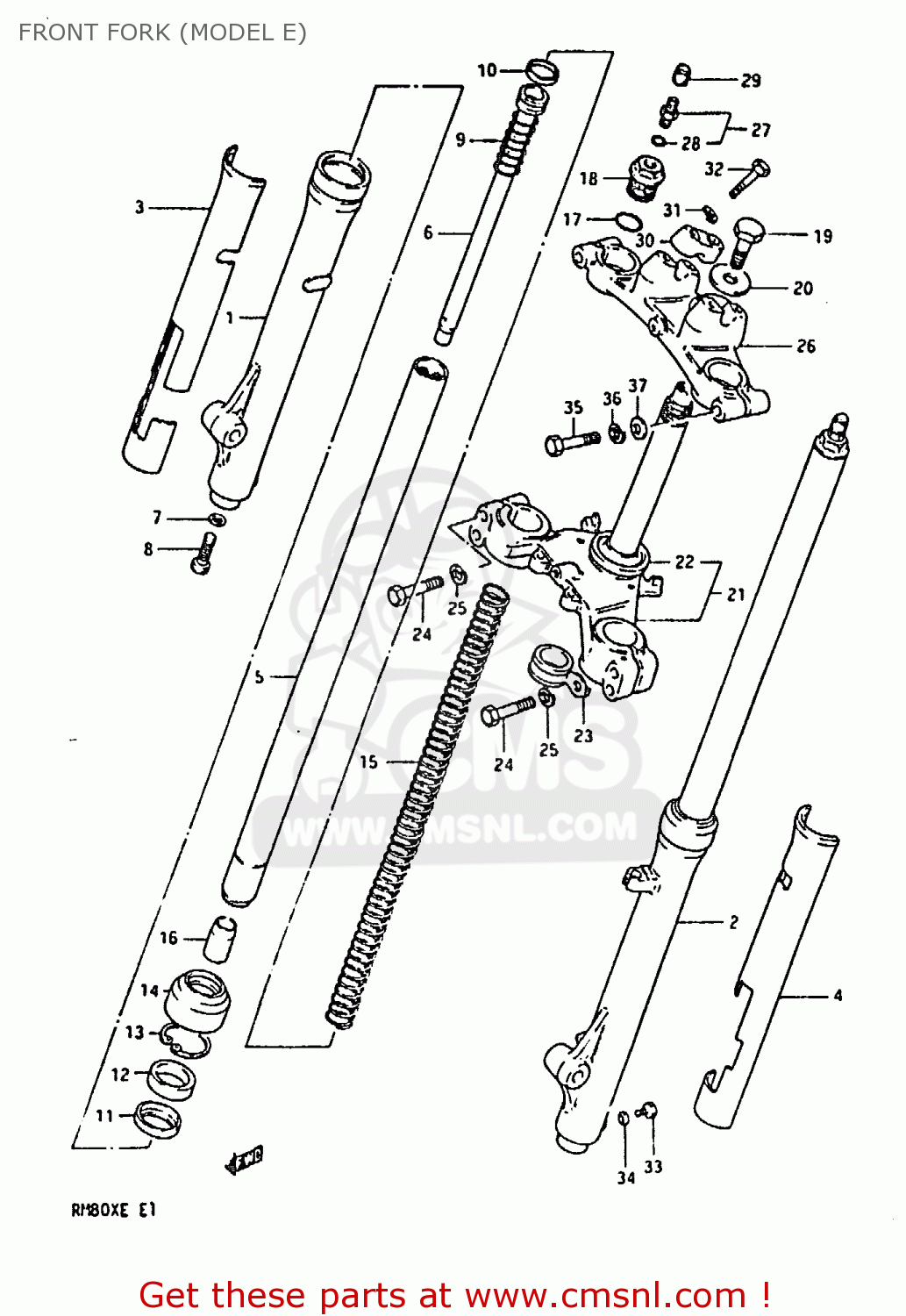

FRONT FORK (MODEL E)

ref

part #

description

quantity

0

5110020920
ref: 0

DAMPER SET

€ 0.00

1

5113020920
ref: 1

TUBE,OUTER,RIGHT

€ 189.00

2

5114020920
ref: 2

TUBE,OUTER,LEFT

€ 189.00

3

5120120920163
ref: 3

PROTECTOR,FRONT FORK,RIGHT

€ 39.00

4

5120220920163
ref: 4

PROTECTOR,FRONT FORK,LEFT

€ 41.50

5

5111020900
ref: 5

TUBE,INNER

€ 138.50

6

5114620900
ref: 6

CYLINDER,FRONT FORK

€ 0.00

7

5114831030
ref: 7

GASKET (NAS)

€ 4.00

8

5114748130
ref: 8

BOLT(8X27)

€ 3.50

9

5117736030
ref: 9

SPRING,REBOUND

€ 4.50

10

5119633130
ref: 10

RING,PISTON

€ 7.50

11

5116820900
ref: 11

SPACER,FORK OIL SEAL

€ 4.50

12

5115348420
ref: 12

SEAL,OIL

€ 11.00

13

5115620400
ref: 13

CIRCLIP,FORK OIL SEAL

€ 0.00

14

5117320400
ref: 14

SEAL,DUST

€ 9.00

15

5117120920
ref: 15

SPRING,FRONT FORK

€ 17.50

16

5119548000
ref: 16

PIECE,OIL LOCK

€ 8.50

17

5118125030
ref: 17

O RING

€ 3.00

18

5135120400
ref: 18

BOLT,FORK INNER TUBE

€ 51.00

19

5135248000
ref: 19

BOLT,STEERING STEM HEAD

€ 12.50

20

5135620920
ref: 20

WASHER,STEERING STEM

€ 0.00

21

5141020920126
ref: 21

STEM,STEERING

€ 141.00

22

5162133001
ref: 22

RACE,STEERING OUTER LWR

€ 10.00

23

5145520400
ref: 23

GUIDE,CABLE

€ 16.00

24

5145120920
ref: 24

BOLT,FORK INNER TUBE F

€ 0.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

5131120920
ref: 26

HEAD,STEERING STEM

€ 0.00

27

5129345440
ref: 27

VALVE,AIR

€ 17.00

28

5111745440
ref: 28

O-RING

€ 2.50

29

5129420400
ref: 29

CAP

€ 3.50

30

5621127100
ref: 30

HOLDER,HANDLEBAR

€ 12.50

31

0832121088
ref: 31

LOCK WASHER

€ 2.00

32

0110708358
ref: 32

BOLT

€ 3.50

33

0110706088
ref: 33

BOLT

€ 2.50

34

5118331030
ref: 34

GASKET,DRAIN,PLUG (NAS)

€ 4.00

35

0110708408
ref: 35

BOLT 8X40

€ 3.00

36

0832121088
ref: 36

LOCK WASHER

€ 2.00

37

0832221088
ref: 37

WASHER

€ 2.00
