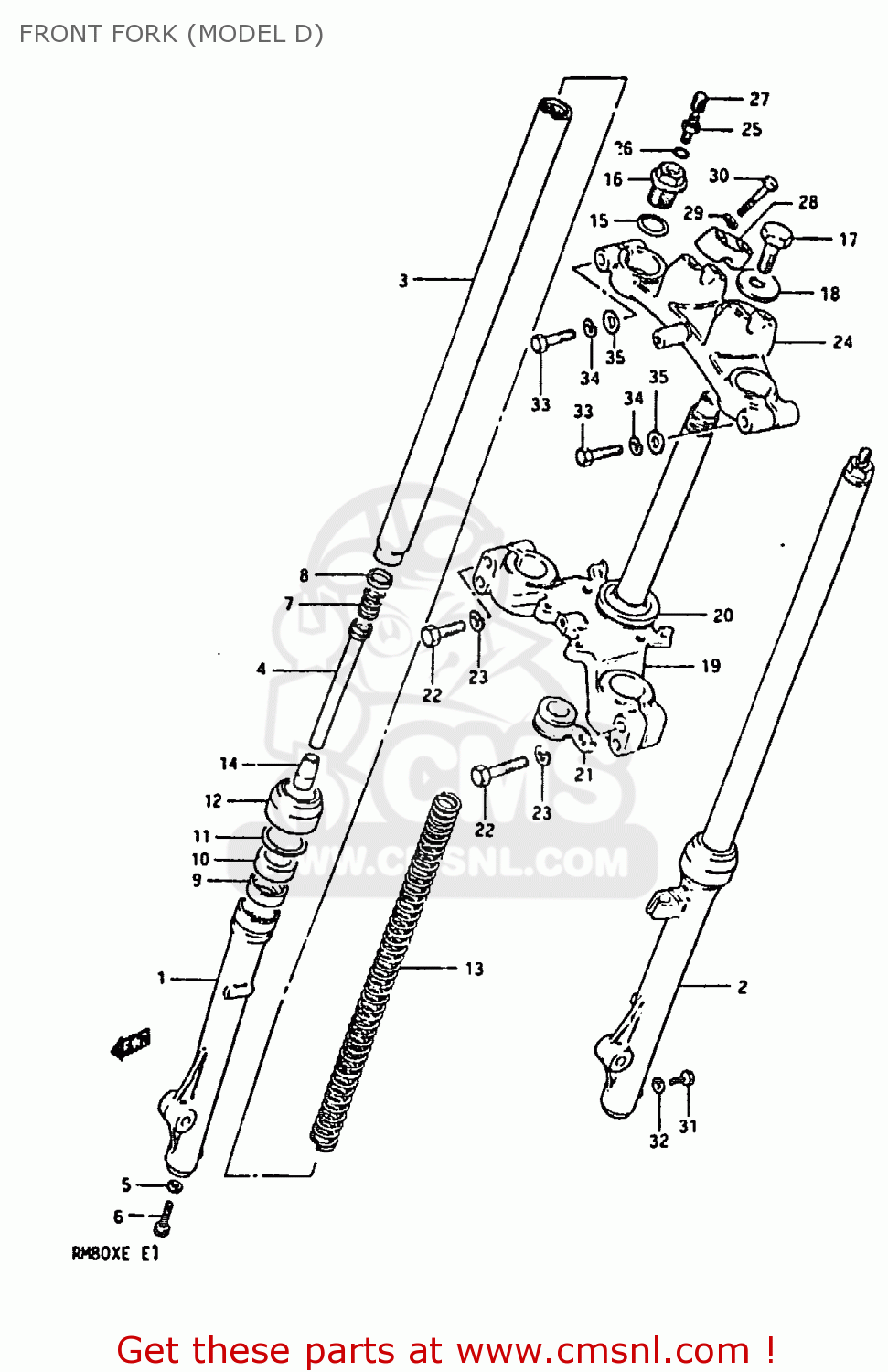

FRONT FORK (MODEL D)

ref

part #

description

quantity

0

5110020900163
ref: 0

DAMPER SET

€ 0.00

1

5113020900163
ref: 1

TUBE,OUTER,RIGHT

€ 147.00

2

5114020900163
ref: 2

TUBE,OUTER,LEFT

€ 128.00

3

5111020900
ref: 3

TUBE,INNER

€ 138.50

4

5114620900
ref: 4

CYLINDER,FRONT FORK

€ 0.00

5

5114831030
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117736030
ref: 7

SPRING,REBOUND

€ 4.50

8

5119633130
ref: 8

RING,PISTON

€ 7.50

9

5116820900
ref: 9

SPACER,FORK OIL SEAL

€ 4.50

10

5115348420
ref: 10

SEAL,OIL

€ 11.00

11

5115620400
ref: 11

CIRCLIP,FORK OIL SEAL

€ 0.00

12

5117320400
ref: 12

SEAL,DUST

€ 9.00

13

5117120900
ref: 13

SPRING,FRONT FORK

€ 17.50

14

5119548000
ref: 14

PIECE,OIL LOCK

€ 8.50

15

5118125030
ref: 15

O RING

€ 3.00

16

5135120900
ref: 16

BOLT,FORK INNER TUBE

€ 31.00

17

5135220900
ref: 17

BOLT,STEERING STEM HEAD

€ 0.00

18

5135620900
ref: 18

WASHER

€ 5.00

19

5141020900291
ref: 19

STEM,STEERING

€ 141.00

20

5162133001
ref: 20

RACE,STEERING OUTER LWR

€ 10.00

21

5145520900
ref: 21

GUIDE,CABLE

€ 16.00

22

5145120900
ref: 22

BOLT,FORK INNER TUBE F

€ 0.00

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

5131120900291
ref: 24

STEM HEAD,STEERING

€ 80.00

25

5129345440
ref: 25

VALVE,AIR

€ 17.00

26

5111745440
ref: 26

O-RING

€ 2.50

27

5129420400
ref: 27

CAP

€ 3.50

28

5621148000291
ref: 28

HOLDER,HANDLEBAR

€ 8.50

29

0832121088
ref: 29

LOCK WASHER

€ 2.00

30

0110708358
ref: 30

BOLT

€ 3.50

31

0110706088
ref: 31

BOLT

€ 2.50

32

5118331030
ref: 32

GASKET,DRAIN,PLUG (NAS)

€ 4.00

33

0110708408
ref: 33

BOLT 8X40

€ 3.00

34

0832121088
ref: 34

LOCK WASHER

€ 2.00

35

0832221088
ref: 35

WASHER

€ 2.00
