CRANKCASE (MODEL L/M/N/P/R/S)
RM80X 1992 (N)

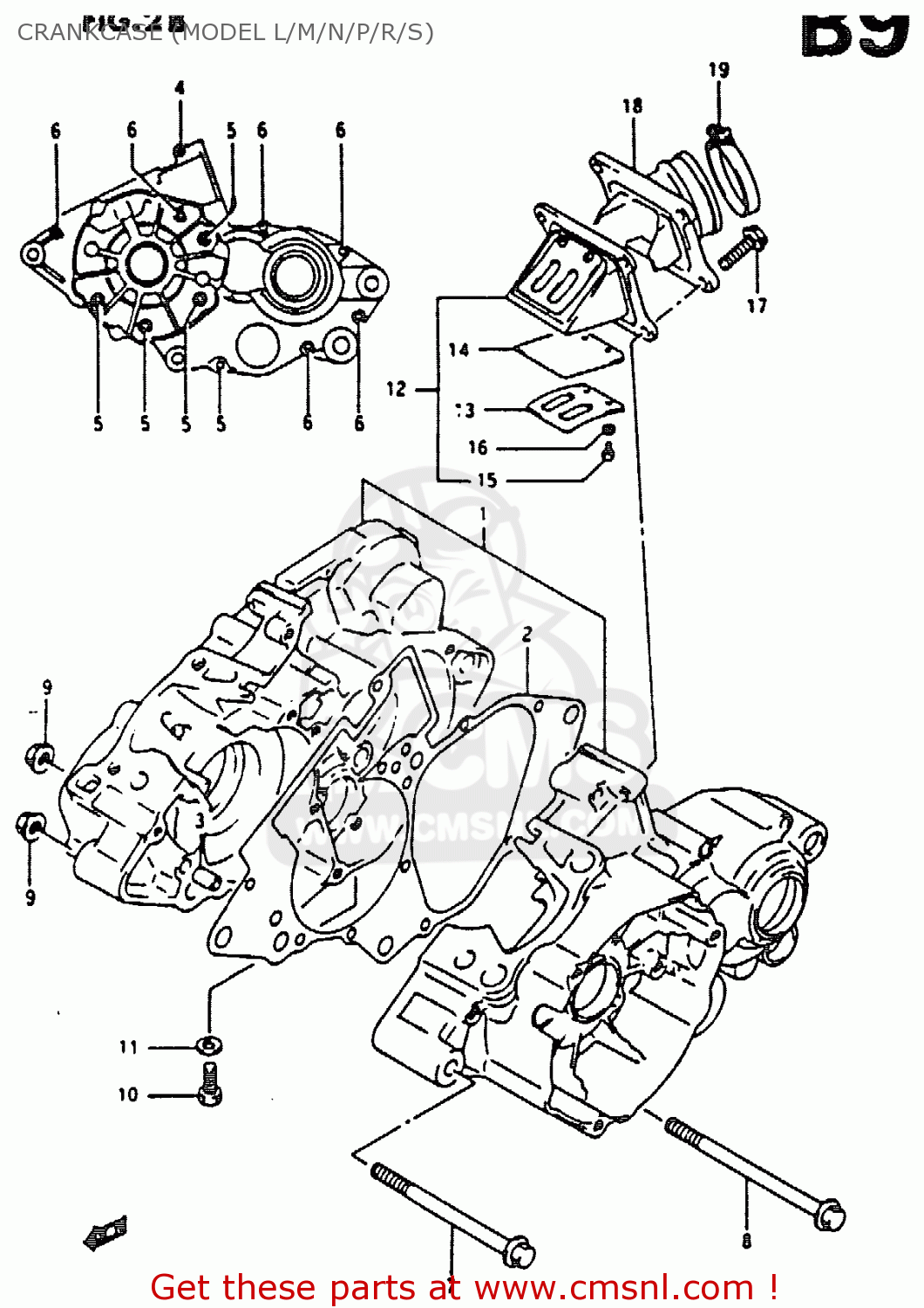

Crankcase (model l/m/n/p/r/s) diagram RM80X 1992 (N)
CRANKCASE (MODEL L/M/N/P/R/S) RM80X 1992 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130502840
ref: 1-1
MODEL L
CRANKCASE SET
€ 341.50
1-2
1130003810
ref: 1-2
MODEL M/N/P
CRANKCASE SET
€ 341.50
1-3
1130003811
ref: 1-3
MODEL R/S
CRANKCASE SET
€ 341.50
2
1148102B40
ref: 2
GASKET,CRANKCASE (NAS)
€ 11.00
3
0421109129
ref: 3
PIN
€ 2.00
4-1
0154706357
ref: 4-1
MODEL L/M/N/P
BOLT
€ 2.50
4-2
0154706403
ref: 4-2
MODEL R/S
BOLT
€ 3.00
5-1
0154706407
ref: 5-1
MODEL L/M/N/P
BOLT
€ 2.50
5-2
0154706403
ref: 5-2
MODEL R/S
BOLT
€ 3.00
6-1
0154706507
ref: 6-1
MODEL L/M/N/P
BOLT
€ 2.50
6-2
0154706503
ref: 6-2
MODEL R/S
BOLT
€ 3.50
7
0910308295
ref: 7
BOLT 8X92
€ 4.50
8
0910308296
ref: 8
BOLT(8X102)
€ 5.50
9
0915908067
ref: 9
NUT
€ 5.50
10-1
0110708167
ref: 10-1
MODEL L/M/N/P
BOLT,8X16
€ 2.00
10-2
0150008163
ref: 10-2
MODEL R/S
BOLT
€ 2.00
11-1
0916808026
ref: 11-1
MODEL L/M/N/P/R
GASKET (NAS)
€ 1.00
11-2
0916808016
ref: 11-2
MODEL S
GASKET(8.2X14X1) (NAS)
€ 1.00
12
1315002B50
ref: 12
VALVE ASSY,REED
€ 67.00
13
1315202B50
ref: 13
STOPPER,REED VALVE
€ 4.00
14
1315302B40
ref: 14
VALVE,REED
€ 8.00
15
0211203063
ref: 15
SCREW
€ 2.00
16
0832121033
ref: 16
WASHER,LOCK
€ 1.50
17-1
0154706207
ref: 17-1
MODEL L/M/N/P
BOLT
€ 2.50
17-2
0154706203
ref: 17-2
MODEL R/S
SCREW
€ 2.50
18
1311002B50
ref: 18
PIPE,INTAKE
€ 51.50
19
0940242306
ref: 19
CLAMP
€ 4.50
